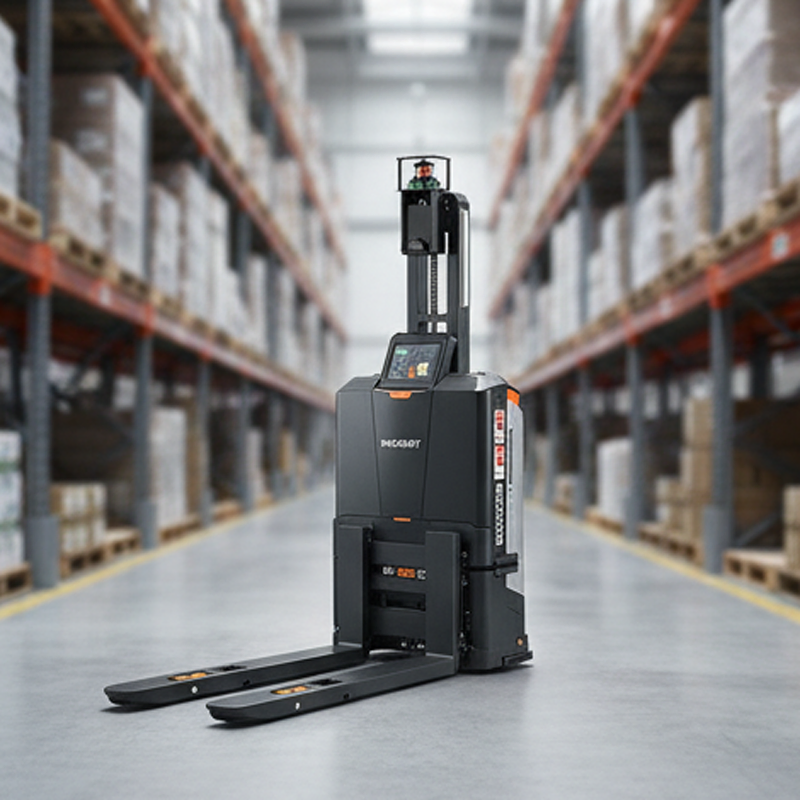

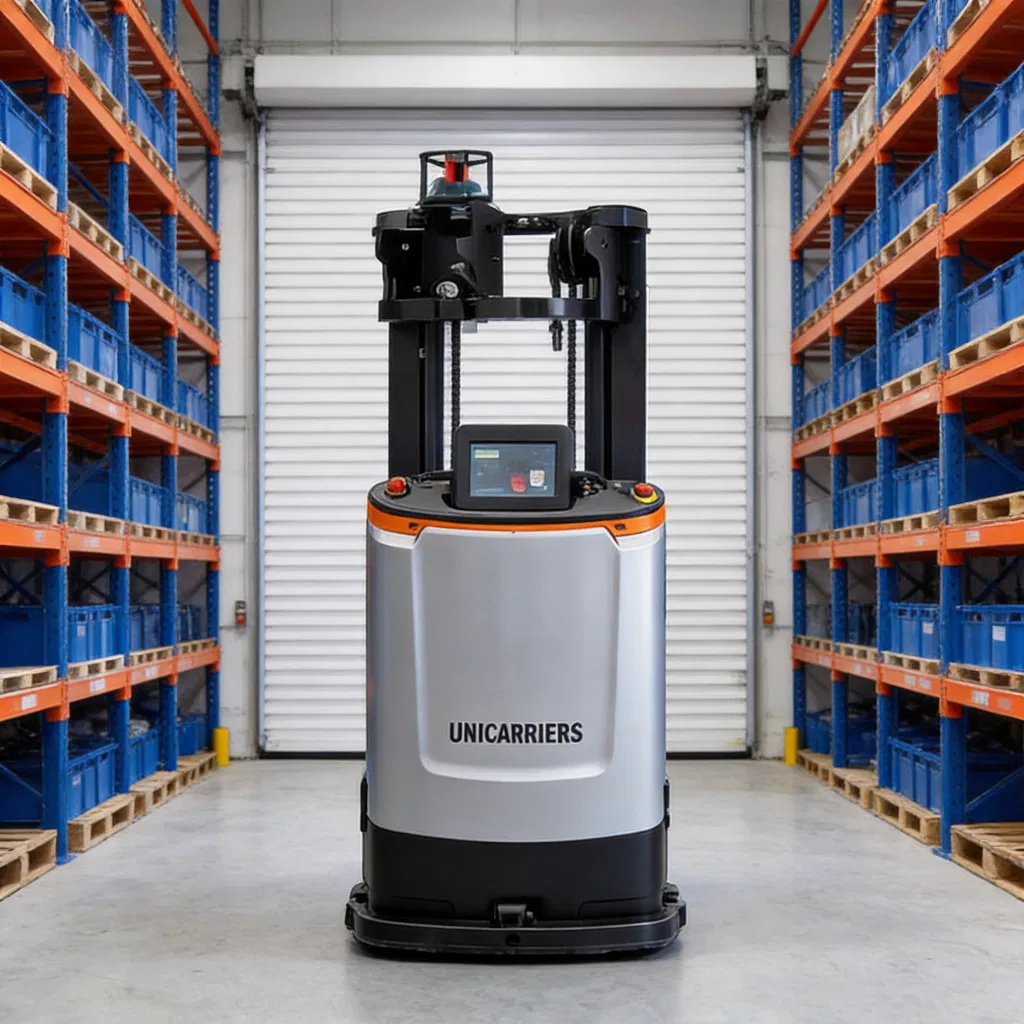

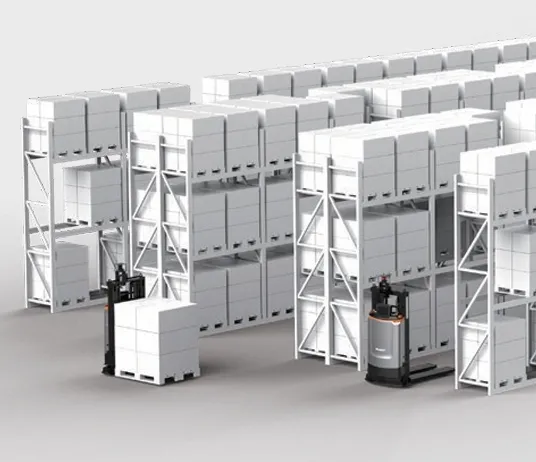

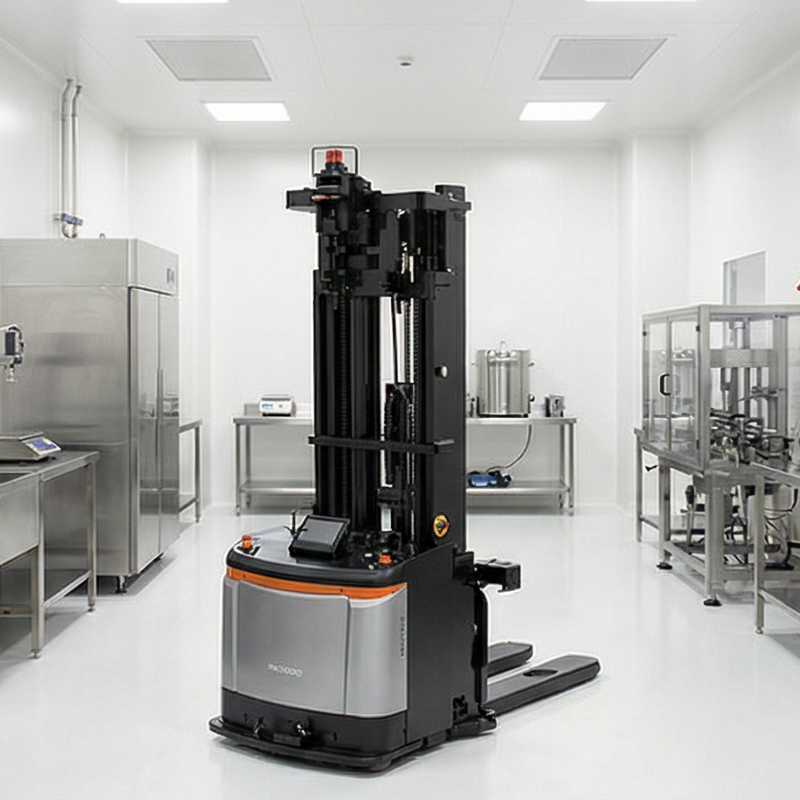

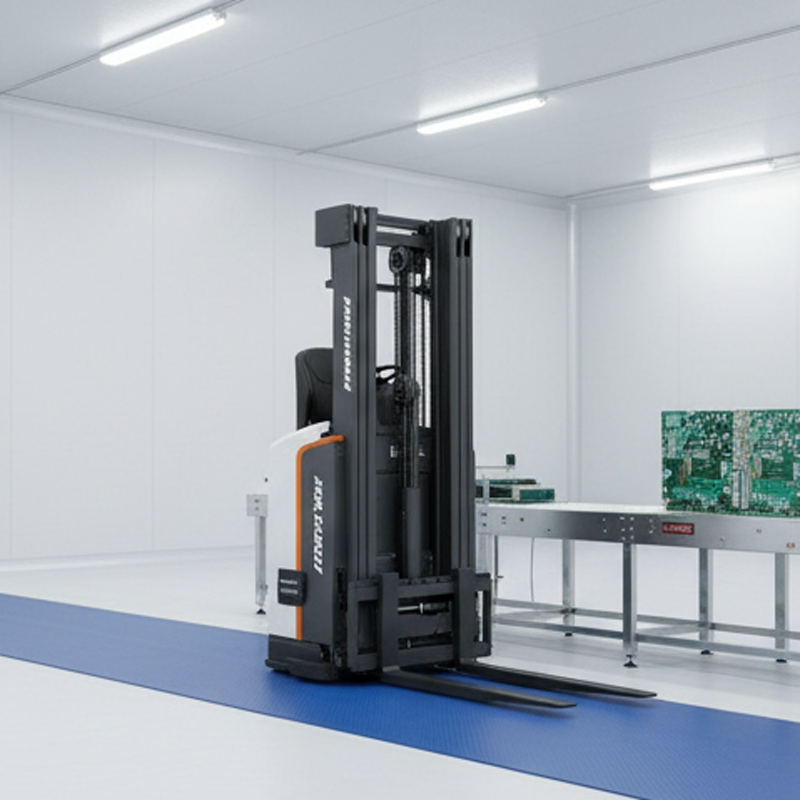

Stacking series FMRs cover the load ranging from 1,000kg to 3,000kg, with the highest lifting height being customized up to 4.5m. The specially designed thickness of the FMR body greatly reduces the operation aisle width, and effectively improves the storage space of materials. Adopting iconic robot head design and modular components, 80% of the components can be used in different scenarios. The whole series obtains full directive CE marking, which are the preferred product series for logistics solutions.

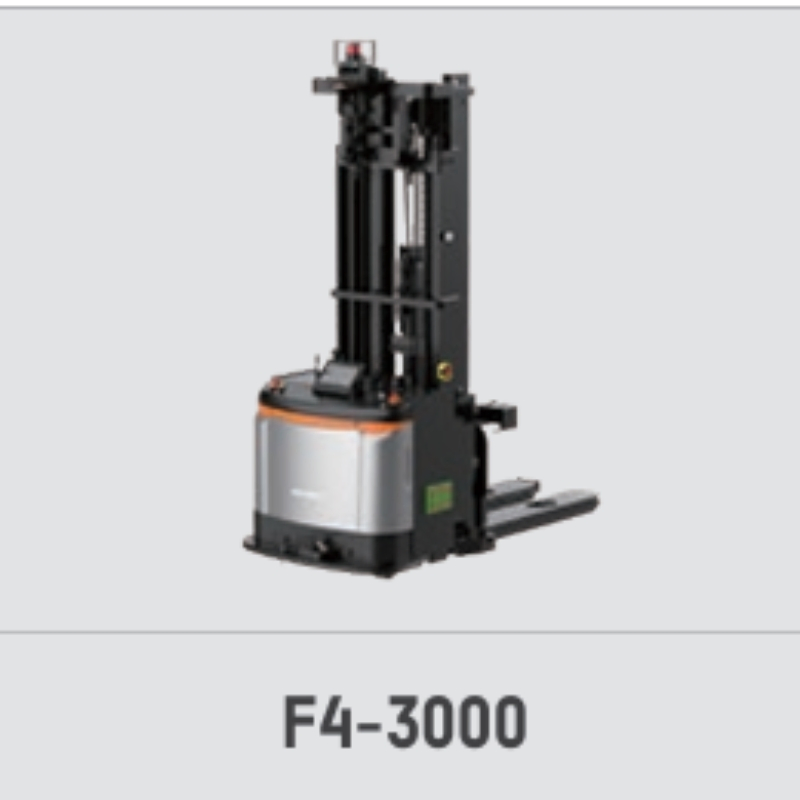

| Model | F4-1000C | F4-1000C | F4-1500 | F4-2000 (3m) | F4-2000 (4.5m) | F4-3000 |
|---|---|---|---|---|---|---|
| Rated running speed (m/s) | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.5 |
| Positioning accuracy (mm)/(°) | ±10/±1 | ±10/±1 | ±10/±1 | ±10/±1 | ±10/±1 | ±10/±1 |
| Min. rotation radius (Wa) (mm) | 1183 | 1183 | 1316 | 1400 | 1400 | 1891 |
| Motion method | Forward, backward, arc, rotate in place | Forward, backward, arc, rotate in place | Forward, backward, arc, rotate in place | Forward, backward, arc, rotate in place | Forward, backward, arc, rotate in place | Forward, backward, arc, rotate in place |
| Min. aisle width (Ast) (mm) | 2062 | 2062 | 2490 | 2065 | 2065 | 2864 |
| Run time (h) | 6-8 | 6-8 | 6-8 | 6-8 | 6-8 | 6-8 |
| Charging time (h) | ≤ 2 | ≤ 2 | ≤ 2 | ≤ 2 | ≤ 2 | ≤ 2 |

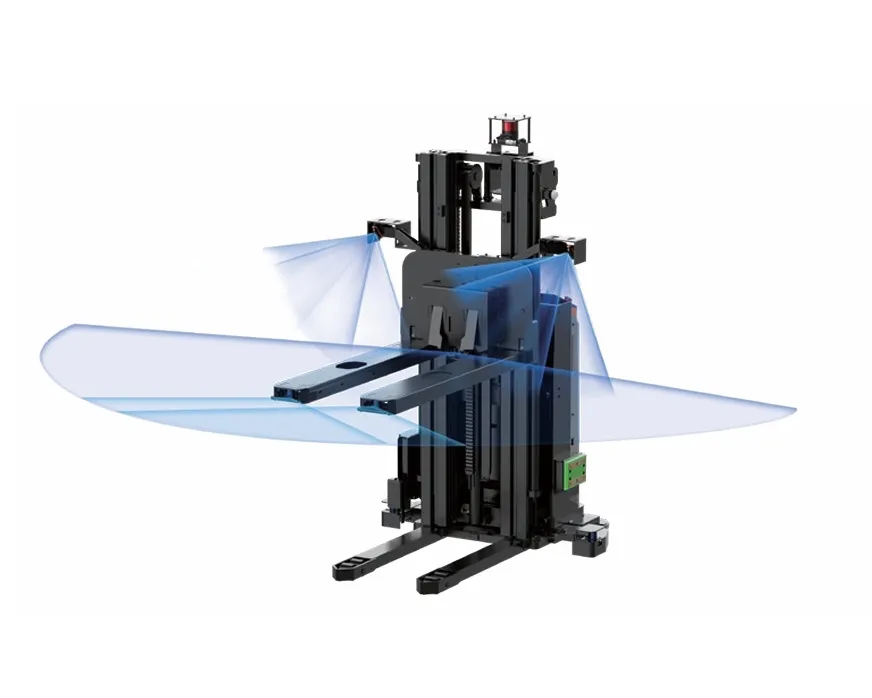

| Laser obstacle avoidance | Support | Support | Support | Support | Support | Support |
| Recorder | Optional | Optional | Optional | Optional | Optional | Optional |
| Bumper Strip Detection | Support | Support | Support | Support | Support | Support |
| Pallet in-position detection | Support | Support | Support | Support | Support | Support |
| Fork collision detection | Support | Support | Support | Support | Support | Support |
| Emergency stop button | Support | Support | Support | Support | Support | Support |
| Indication light | Support | Support | Support | Support | Support | Support |
| Sound and light alarm | Support | Support | Support | Support | Support | Support |
| Human-machine interaction | Touchscreen | Touchscreen | Touchscreen | Touchscreen | Touchscreen | Touchscreen |
| Navigation Mode | L-SLAM/ 3D L-SLAM | L-SLAM/ 3D L-SLAM | L-SLAM/ 3D L-SLAM | L-SLAM/ 3D L-SLAM | L-SLAM/ 3D L-SLAM | L-SLAM/ 3D L-SLAM |
| Fork size customization | Customizable | Customizable | Customizable | Customizable | Customizable | Customizable |

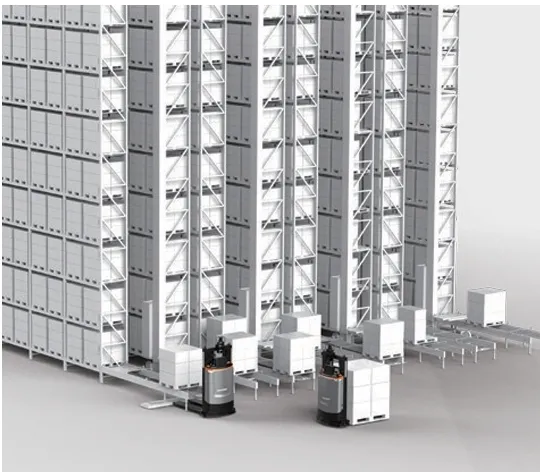

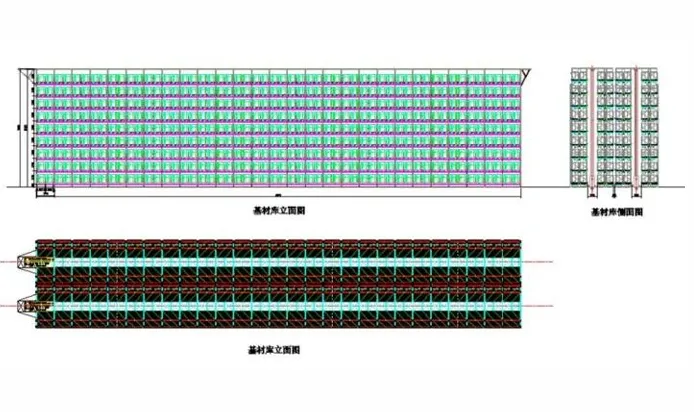

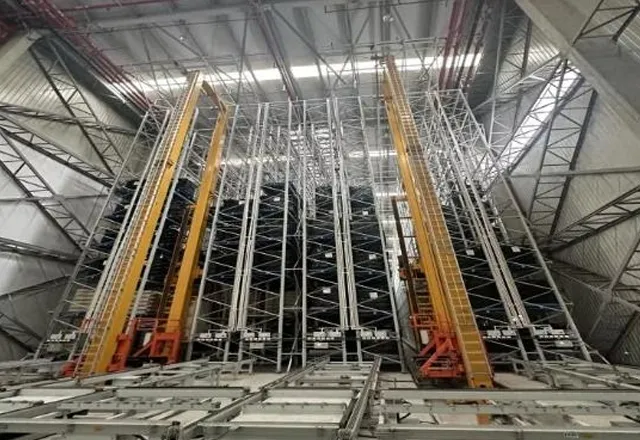

Automated warehouse design, stacker crane and system design.
2 stacker cranes, 4 sets of racks, 3,888 storage locations.
Inbound and outbound flow rate of 92 pallets per hour (P/H).
79 days for engineering design.
200 days for automated warehouse construction and final delivery.
This high-performance equipment features high brightness, energy saving, environmental protection, and easy installation. It has a waterproof rating of IP67 and has passed CE certification. It is suitable for schools, parks, roadsides, factories, squares, etc. It has a warranty period of 3 years. Moreover, we can provide various styles to meet your needs.
Intelligent warehousing Systems
Latent Mobile Robot
Forklift Mobile Robot
Carton Transfer Unit
Software platforms, etc.
Features high brightness, energy saving, environmental protection, and easy installation. It has a waterproof rating of IP67 and has passed CE certification. It is suitable for schools, parks, roadsides, factories, squares, etc. It has a warranty period of 3 years.
Standard Warranty: 12 months or 2,000 operating hours (whichever comes first).
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.
