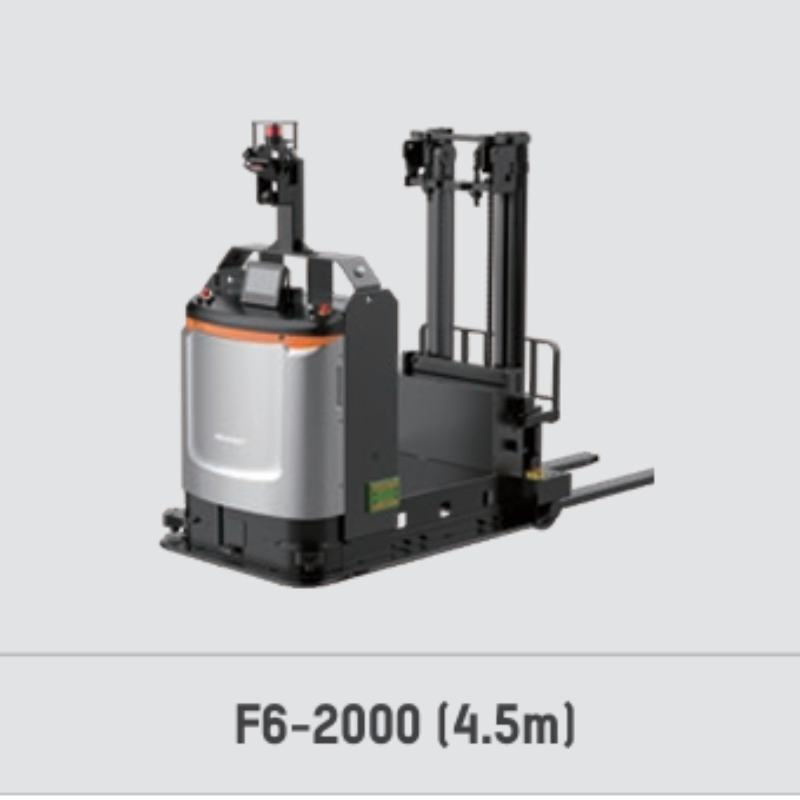

2000kg 4.5m Forward Counterweight Pallet Transferring Stacking Logistics Warehouse Agv AMR Forklift Mobile Robot

Product Description

Forward Counterweight Pallet Transferring Stacking Logistics Warehouse Agv AMR Forklift Mobile Robot

FMR-Forward/Counterweight Series

Adopting an autonomous body design, compatible with the design of the forward and counterweight modules, FMRs of the series are mainly used for indoor carrying scenes with tian word mesh plastic trays, European standard pallets, and small fork space carriers. These FMRs are widely used in industries including lithium battery, beverage, home appliances, and panels. As one of the product series with strong scalability, they also reserve a wealth of attachment interfaces to facilitate the customization of nonstandard carrier businesses, such as distance adjustment and clamping.

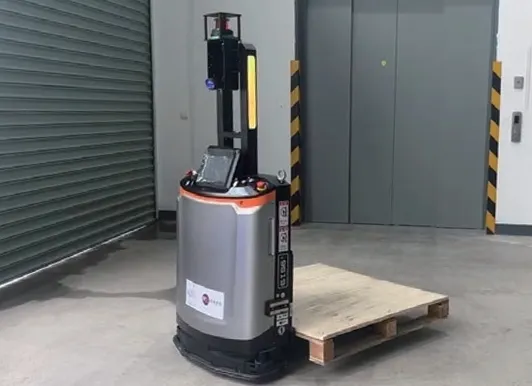

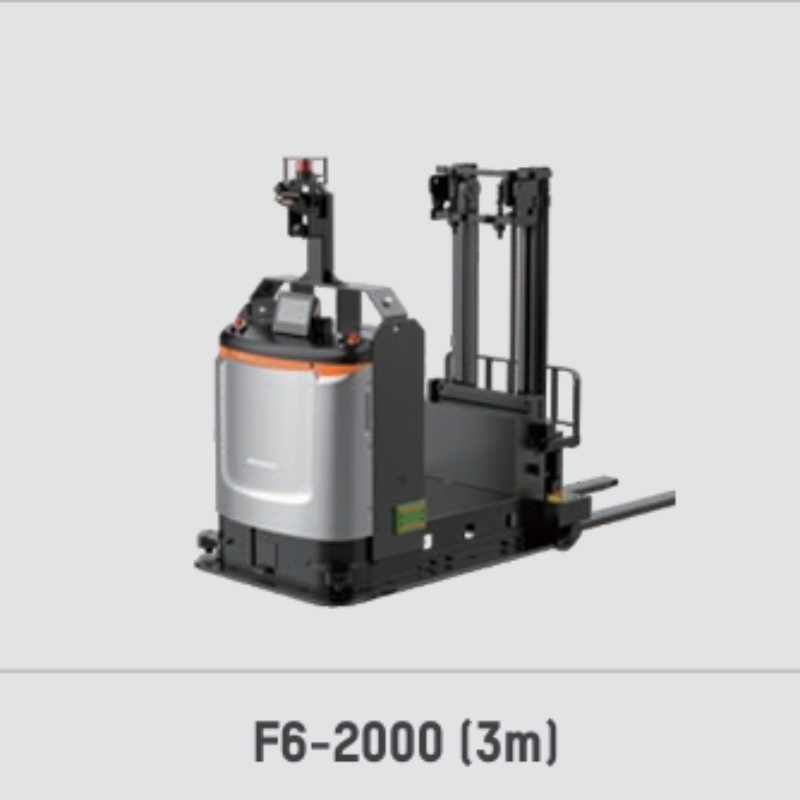

Forward Counterweight Pallet AGV AMR

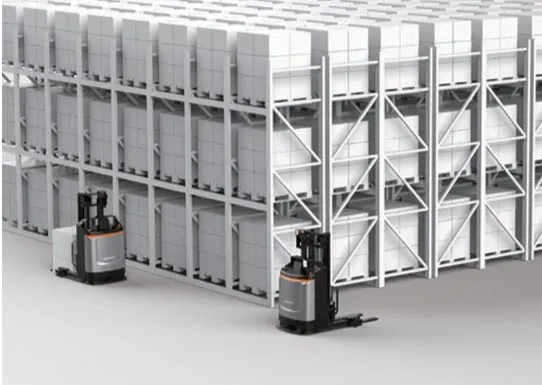

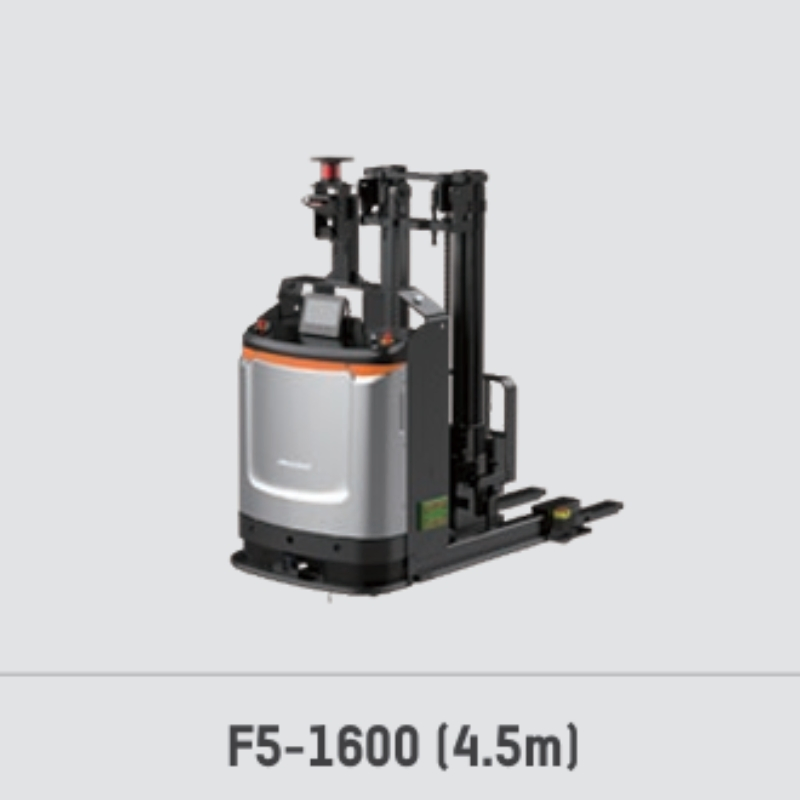

Counterweight Pallet Stacking AGV AMR

Specification Overview

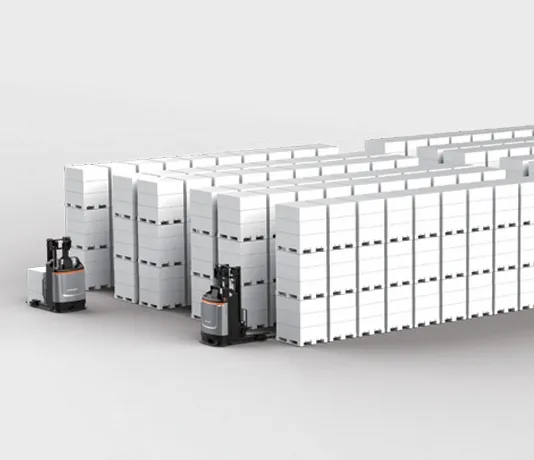

Intensive stacking
Intensive stacking

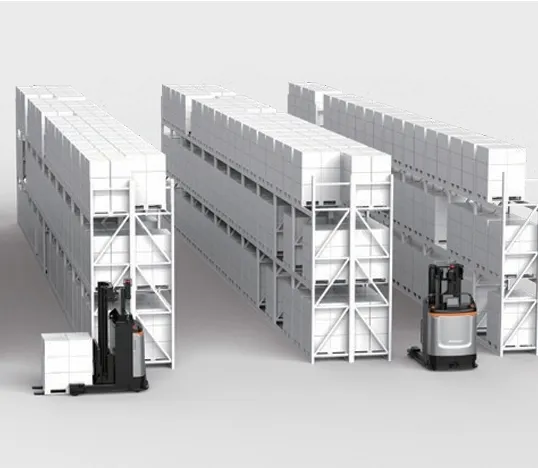

Multi-level rack
Multi-level rack

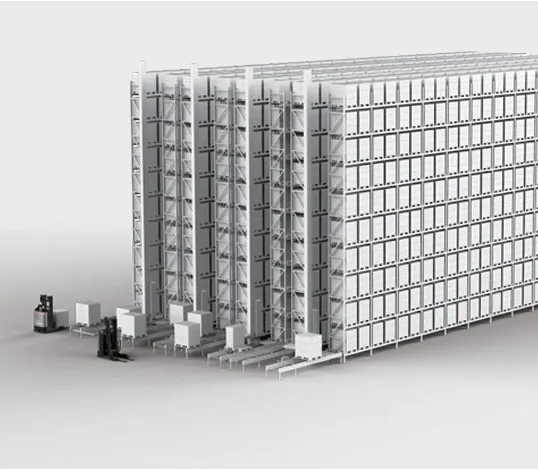

Conveyor docking
Conveyor docking

Key Features

Superior Performance
  • Efficient transportation: maximum steady running speed up to 1.5m/s
  • Safe and reliable: 360° stereo sensing, recognizing various environments and objects
  • Precise positioning: millimeter-level positioning accuracy, combining laser and vision positioning
Full-featured
  • Roadway mode: Use downward-looking navigation to go straight line when laser is blocked
  • Carrier recognition: Autonomous fork picking based on carrier offset
  • Storage location identification: Identify storage space height and offset details
  • Suspended low detection: Detects suspended objects and low obstacles
Rich Models
  • Rich scenarios: Multi-level storage, material stacking, and deep storage
  • Diversified docking devices: Interconnects with other AMRs, automatic doors, and conveyors
  • Various carriers: Support for multiple pallets, frames, roll carriers, and irregular items

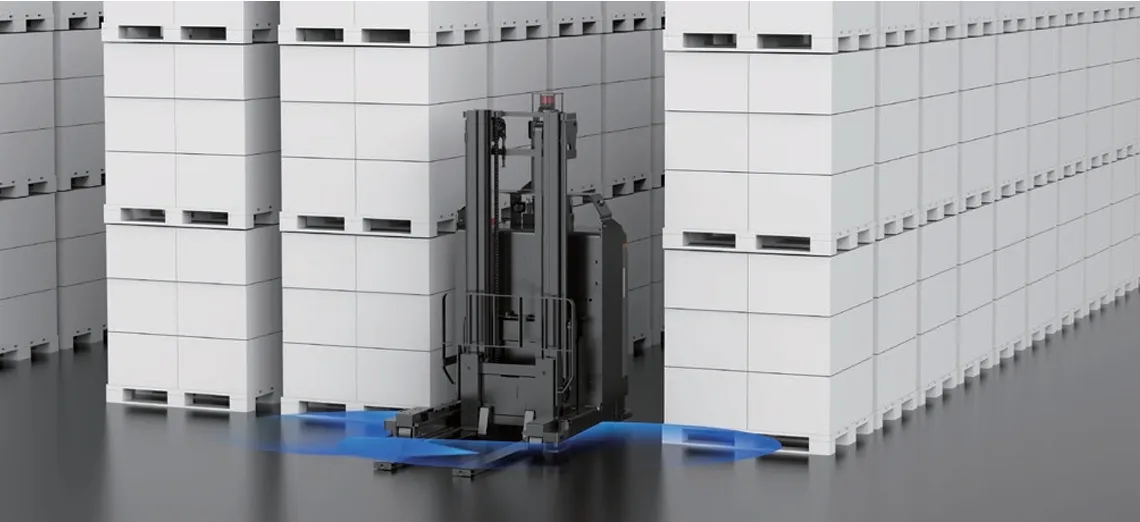

AGV Technical Dimensions Graphic

Technical Specifications

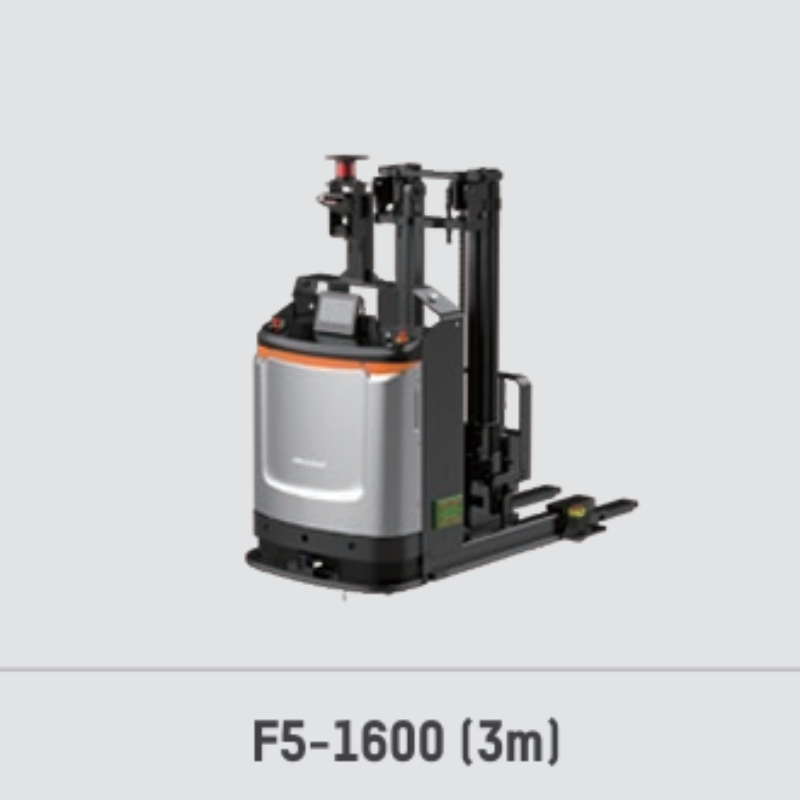

Model F5-1600 (3m) F6-2000 (3m) F5-1600 (4.5m) F6-2000 (4.5m)
Rated running speed (m/s) 1.5 1.5 1.5 1.5
Positioning accuracy (mm)/(°) ±10/±1 ±10/±1 ±10/±1 ±10/±1
Min. rotation radius (Wa) (mm) 1511 1897 1511 1897
Motion method Forward, backward, arc, rotate in place
Min. aisle width (Ast) (mm) 2705 3665 2705 3700
Run time (h) 6-8 6-8 6-8 6-8
Charging time (h) ≤ 3 ≤ 2 ≤ 3 ≤ 2
Laser obstacle avoidance Support Support Support Support
Recorder Optional Optional Optional Optional
Bumper Strip Detection Support Support Support Support
Pallet in-position detection Support Support Support Support
Fork collision detection Support Support Support Support
Emergency stop button Support Support Support Support
Indication light Support Support Support Support
Sound and light alarm Support Support Support Support
Human-machine interaction Touchscreen
Navigation Mode L-SLAM/ 3D L-SLAM (Customizable)
Fork size customization Customizable
Pallet attitude recognition Customizable
Pallet binding recognition Customizable

Main Customers

Main Customers Global Logistics Projects

After-Sales Service

One-Year Warranty
24-Hour Online Support
On-site Support within 48h

Company Overview

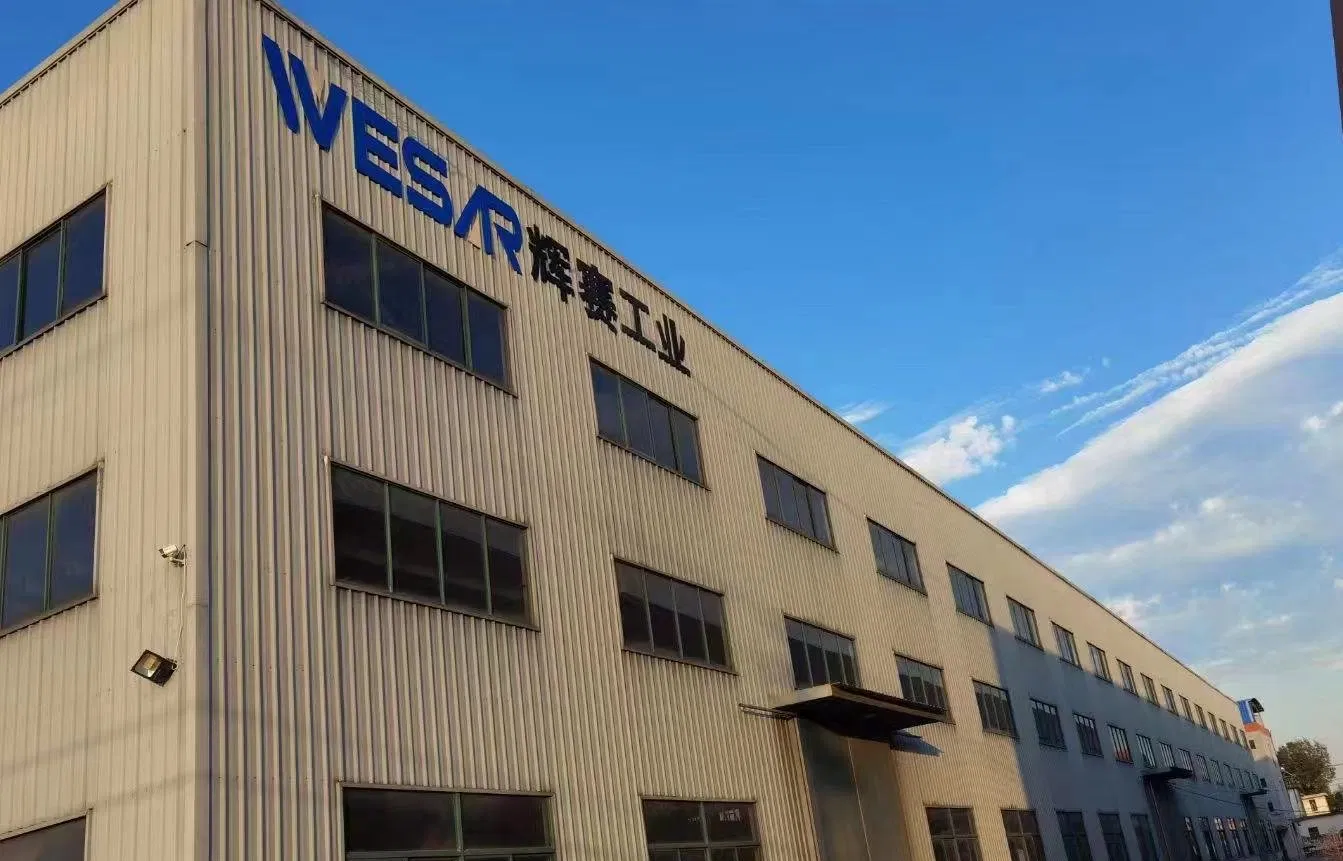

Intelligent Factory Facilities

As a one-stop intelligent factory solutions provider, the company specializes in core services such as green intelligent logistics robots, intelligent factory system design, and construction. The company is dedicated to offering customers expert-level, customized, integrated solutions that include consulting and planning, software development and equipment manufacturing, project implementation and after-sales support, as well as advanced technology integration and enablement.

The company is market-driven and managed by an experienced and knowledgeable team who has many years of industry experience. Furthermore, a professional on-site installation and after-sales engineering team guarantees customer satisfaction. The product line includes: AGV robots, WMS systems, ASRS with storage shelves, factory equipment, logistics equipment, conveyor and mobile yard ramps, storage cabinets, etc. We also help our customers to develop their material flow solutions. These tailor-made solutions bring best value to customers.

Certifications

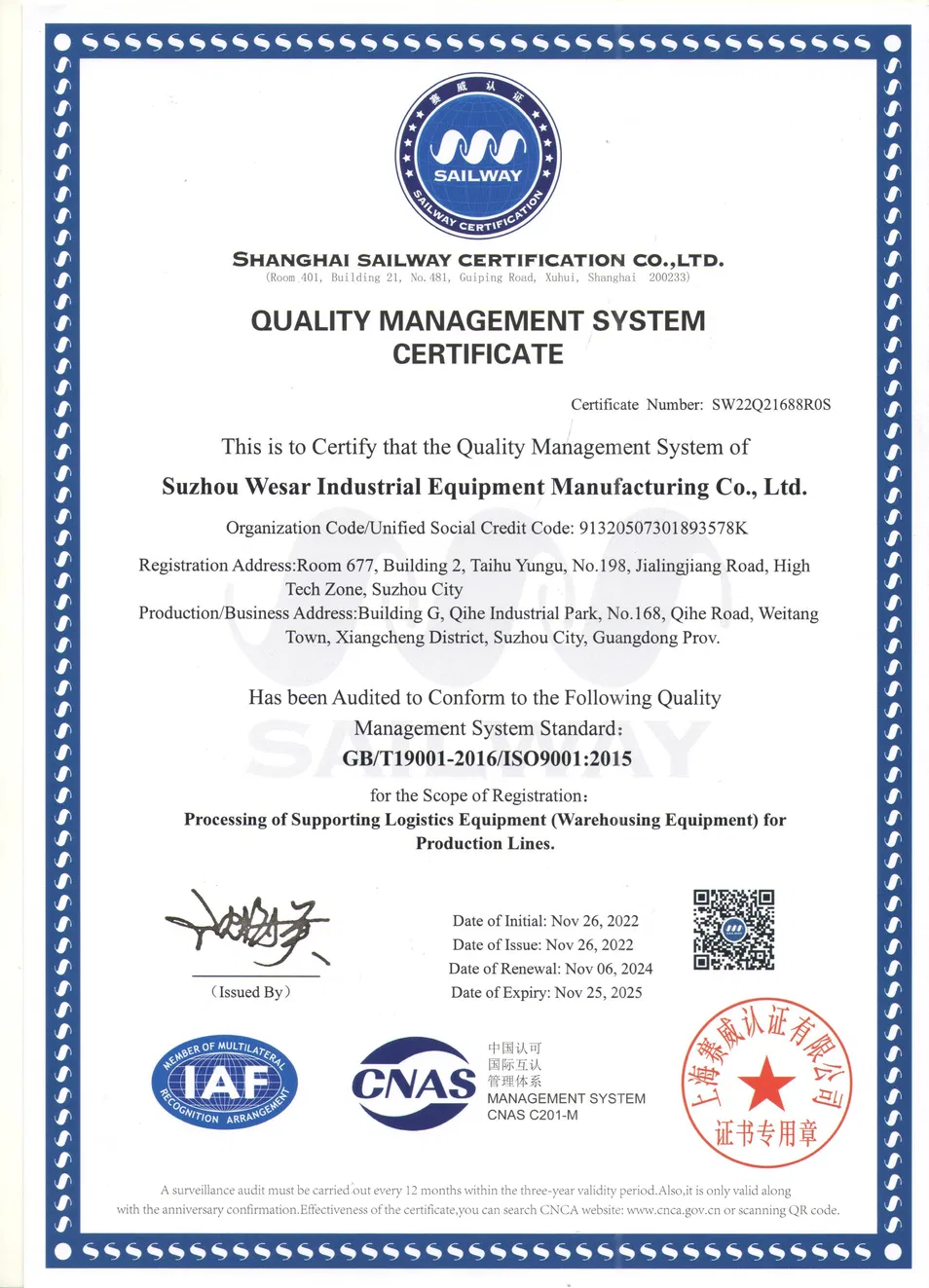

Logistics Equipment Certification Document 1
Logistics Equipment Certification Document 2

Frequently Asked Questions

What are the payment options accepted?
We accept T/T, Paypal, West Union, Trade Assurance (Alipay or E-check), L/C, and D/P.
How is the product quality assured?
We check the quality and quantity of all products twice. The first inspection is done at the end of production, and the second inspection is carried out before packing into cartons.
What warranty and after-sales support do you offer?
We offer a one-year warranty on all products. Our support services include 24-hour online remote service and on-site support within 48 hours after visa approval during the warranty period.
What should I do if there is an issue with my order?
If there is any negligence or issue with the goods, please contact us within 10 days of receiving your order. We will reply within 24 hours to provide a satisfactory solution.
Which industries use FMR-Forward/Counterweight Series robots?
These mobile robots are highly scalable and widely used in indoor carrying scenarios for industries such as lithium battery manufacturing, beverage logistics, home appliances, and panel production.
