Product Description

Overview

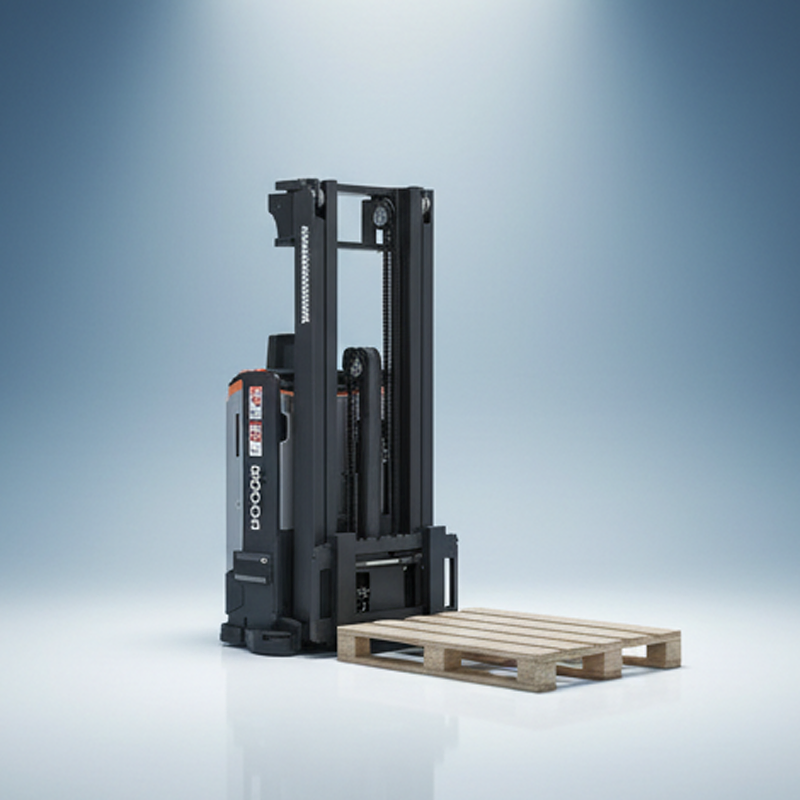

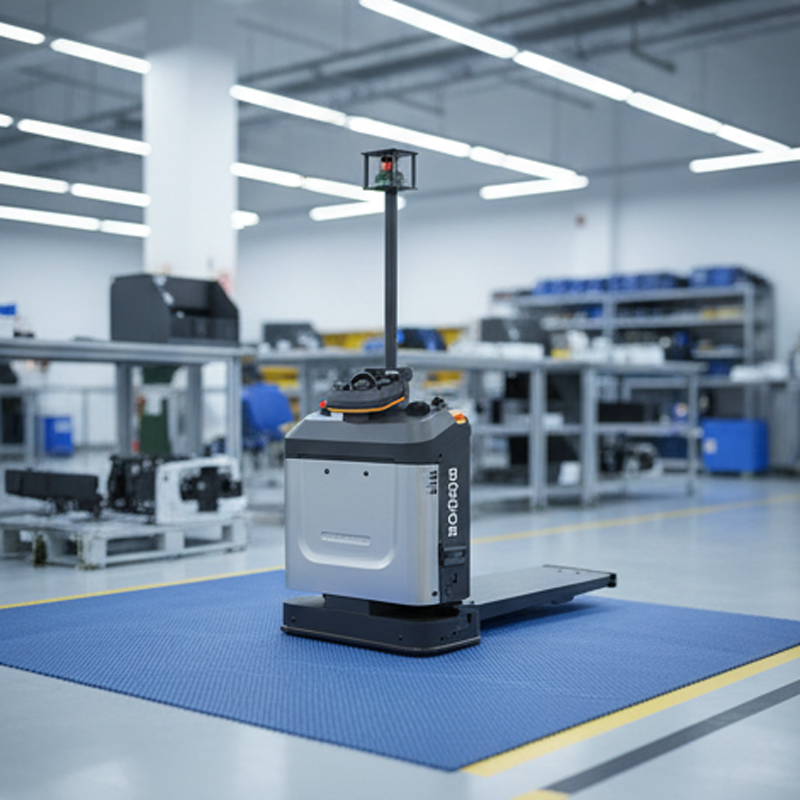

Innovative Material Handling Mobile Robot for 2000kg Load Applications
Basic Info.
Model NO. F3-2000
Load Capacity 2000kg
Safety Features Collision Avoidance System, Emergency Stop Button, Obstacle Detection Sensors, Safety Laser Scanner
Type AMR (Autonomous Mobile Robot)
Dimension (L × W × H) (mm) 1716*950*1906
Weight (with Battery) (Kg) 545
Rated Load (Kg) 2000kg
Load Center Distance (C) (mm) 600
Fork Lifting Height (H3+H13) (mm) 200
Fork Above Ground After Lowering (H13) 75
Fork Dimension (S/E/L) (mm) 70/200/1235
Fork Outer Width (B5) (mm) 720
Applicable Pallet Dimension (mm) 1200*1200
Other Control Mode Point to Point Control
Transport Package Wooden Box
Specification 1716*950*1906
Origin China
Packaging & Delivery
Package Size 120.00cm * 200.00cm * 225.00cm
Package Gross Weight 800.000kg
Product Description

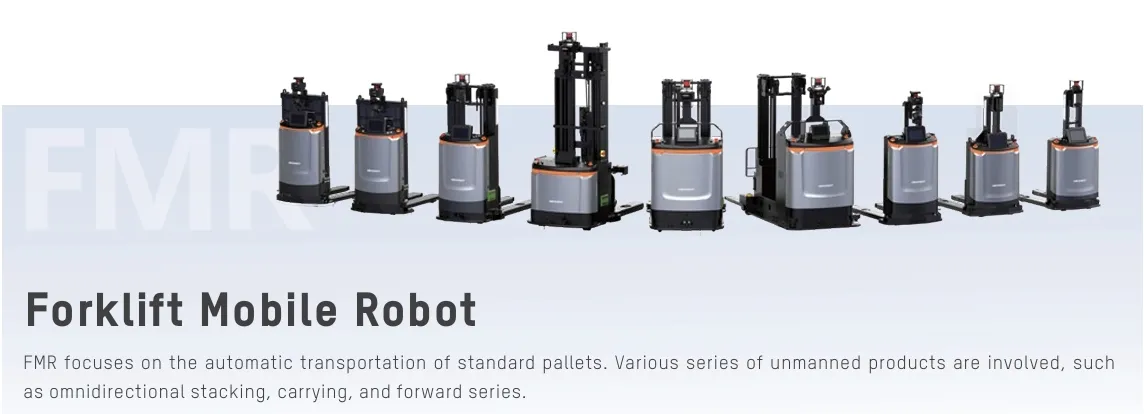

Carrying Series
Carrying series FMRs cover load ranging from 1,000kg to 3,000kg, with a maximum running speed of 2m/s. The lightweight FMR body is equipped with high-capacity batteries, which can be selected according to the needs of the right size, reducing redundancy with precise requirements. The specially designed thickness of the FMR body greatly reduces the width of the running aisle and improves the material storage space. The whole series adopts environmental contour navigation method and supports texture navigation, which makes full use of environmental information for localization and facilitates deployment and implementation.

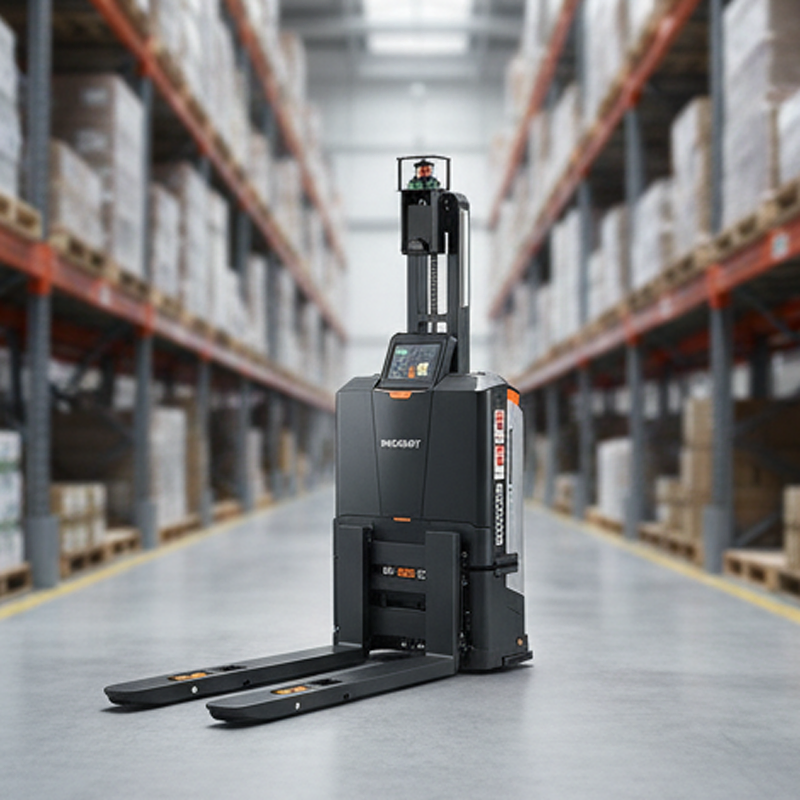

Innovative Material Handling Mobile Robot for 2000kg Load Applications
Specification

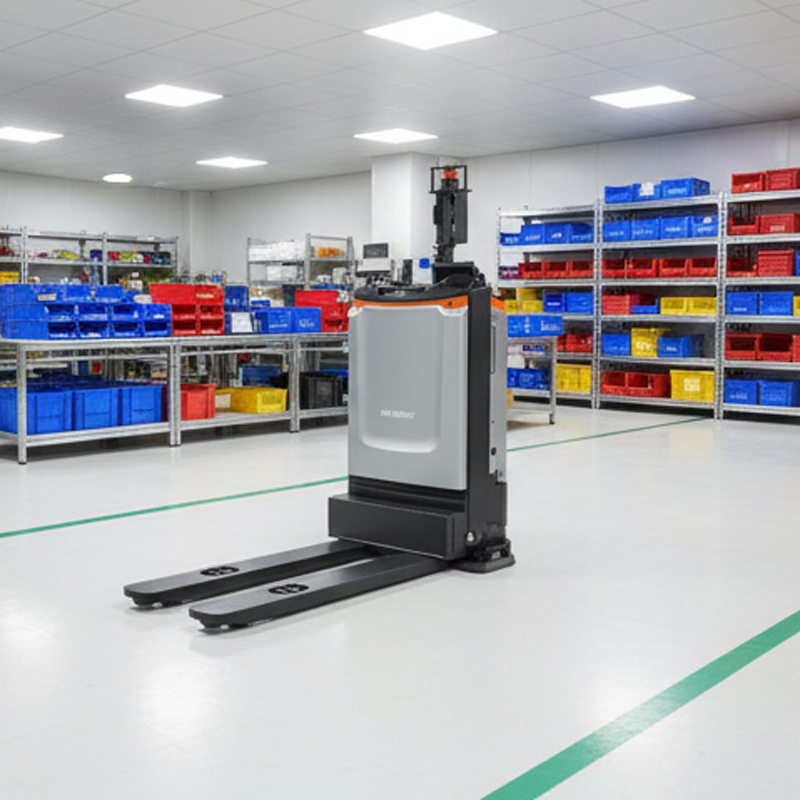

Lineside carrying
Floor-to-floor transferring
Non-passenger freight lifter docking
Lineside carrying applications Floor-to-floor transferring applications Non-passenger freight lifter docking applications

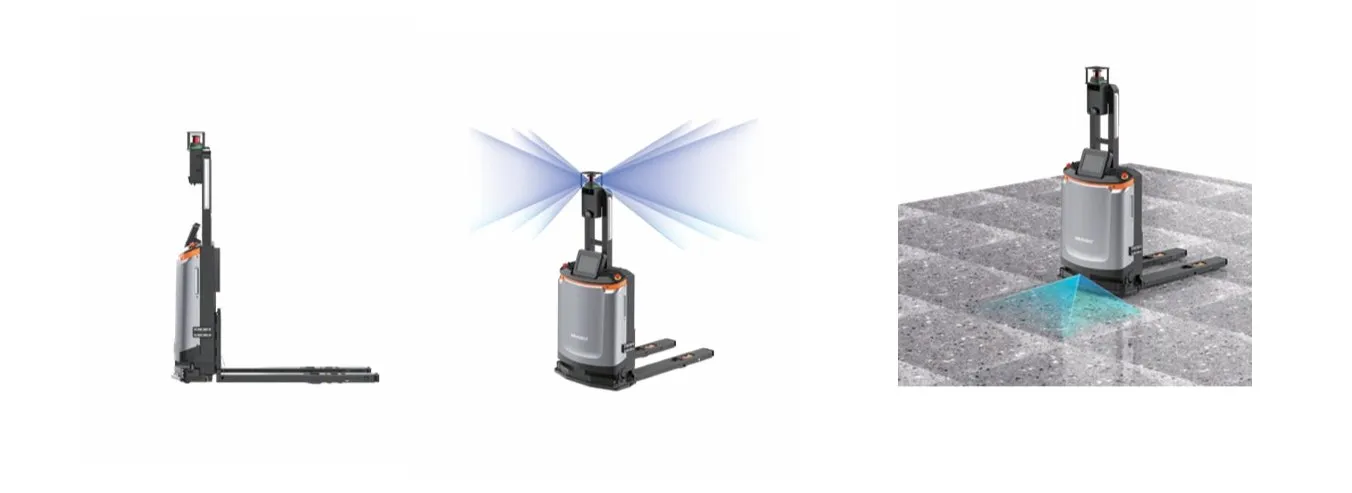

Key Features
Superior Performance
  • Efficient transportation: maximum steady running speed up to 2m/s
  • Wide load coverage: fully independent design, with load ranging from 300kg to 3T
  • Safe and reliable: 360° stereo sensing, recognizing various environments and objects
  • Precise positioning: millimeter-level positioning accuracy, combining laser and vision positioning
Full-Featured Design
  • Pallet recognition: automatic fork picking based on carrier offset
  • Suspended low detection: supports detecting suspended objects and low obstacles
  • Supports full directive CE architecture design, including mechanical, wireless, and electromagnetic directives
Rich Scenario Adaptability
  • Rich scenarios: multiple forms of storage, including lineside carrying, deep storage, alleyway storage
  • Diversified docking devices: dock with other types of AMRs, elevators, automatic doors, conveyors, and other third-party devices
  • Various types of materials/carriers: multiple types of pallets, frames, cage trolleys, flexible packages, and rolls

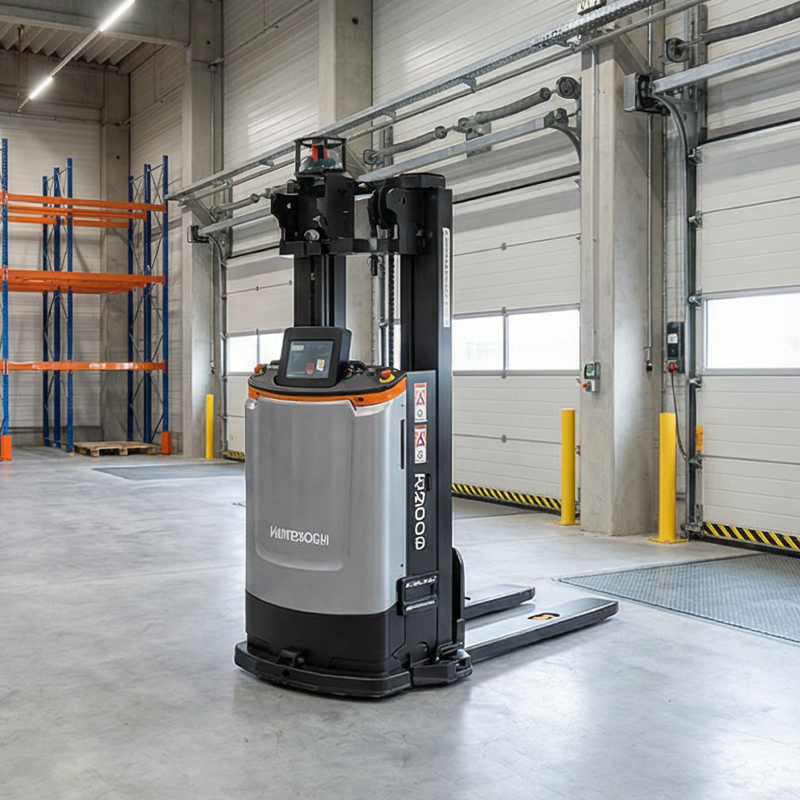

Innovative Material Handling Mobile Robot for 2000kg Load Applications
Model F3-1000 F3-1500 F3-2000 F3-3000
Rated running speed (m/s) 2.5 1.2 1.2 1.6
Positioning accuracy (mm)/(°) ±10/±1 ±10/±1 ±10/±1 ±10/±1
Min. rotation radius (Wa) (mm) 1701 1297 1377 1480
Motion method Forward, backward, arc, rotate in place Forward, backward, arc, rotate in place Forward, backward, arc, rotate in place Forward, backward, arc, rotate in place
Min. aisle width (Ast) (mm) 2525 2191 2277 2230
Run time (h) 6-8 6-8 6-8 6-8
Charging time (h) ≤ 2 ≤ 2 ≤ 2 ≤ 3
Laser obstacle avoidance Support Support Support Support
Recorder Optional Optional Optional Optional
Bumper Strip Detection Support Support Support Support
Pallet in-position detection Support Support Support Support
Fork collision detection Support Support Support Support
Emergency stop button Support Support Support Support
Indication light Support Support Support Support
Sound and light alarm Support Support Support Support
Human-machine interaction Touchscreen Touchscreen Touchscreen Touchscreen
Navigation Mode L-SLAM/ 3D L-SLAM (Customizable) L-SLAM/ 3D L-SLAM (Customizable) L-SLAM/ 3D L-SLAM (Customizable) L-SLAM/ 3D L-SLAM (Customizable)
Fork size customization Customizable Customizable Customizable Customizable
Pallet attitude recognition Customizable Customizable Customizable Customizable
Pallet binding recognition Customizable Customizable Customizable Customizable
Main Customers
Main Customers Global Showcase
After Sales Service
1.
One-year warranty program for all delivered equipment.
2.
24-hour online remote technical support and diagnostics.
3.
On-site engineering support within 48 hours after visa approval during the warranty period.
Company Profile
Advanced Intelligent Factory and Logistics Production Line
As a one-stop intelligent factory solutions provider, we specialize in core services such as green intelligent logistics robots, intelligent factory system design and construction. We are dedicated to offering customers expert-level, customized, integrated solutions that include consulting and planning, software development and equipment manufacturing, project implementation and after-sales support, as well as advanced technology integration and enablement.
We are market-driven and managed by an experienced and knowledgeable team with many years of industry experience. Furthermore, a professional on-site installation and after-sales engineering team guarantees customer satisfaction. Our product line includes: AGV robots, WMS systems, ASRS with storage shelves, factory equipment, logistics equipment, conveyor and mobile yard ramps, storage cabinets, etc. We also help our customers to develop their material flow solutions. These tailor-made solutions bring the best value to customers.
Certifications
Industrial Logistics Safety and System Quality Certification Document 1 Industrial Logistics Safety and System Quality Certification Document 2
FAQ
How should we proceed with AGV selection?
We recommend selecting the AGV hardware based on your actual operational requirements. Our engineering team will analyze your space, load, and paths to propose the most suitable AGV configuration.
Is dedicated software required to run these AGVs?
Yes. To enable efficient AGV operation, dedicated robot dispatching and control software is required to work in conjunction with the AGV hardware.
Can we carry out the AGV commissioning and implementation by ourselves?
AGV commissioning typically requires a high level of professional expertise and hands-on experience. This part of the setup will be handled directly by our engineering team to ensure safe and accurate operation. Additional costs may apply for commissioning services.
Can multiple AGVs or different models operate at the same site?
Yes, absolutely. Our system supports the operation of multiple AGVs, including different models and capacities, working together seamlessly at the same site to meet various material handling requirements.
What initial information do we need to provide to start an AGV project?
In the early planning stage, we require your factory layout (CAD drawings preferred), pallet dimensions, and specific material handling details.
What is the typical timeline for AGV implementation?
The implementation timeline varies depending on the project scope and specification. In some standard cases, deployment can be successfully completed in as little as two weeks.
