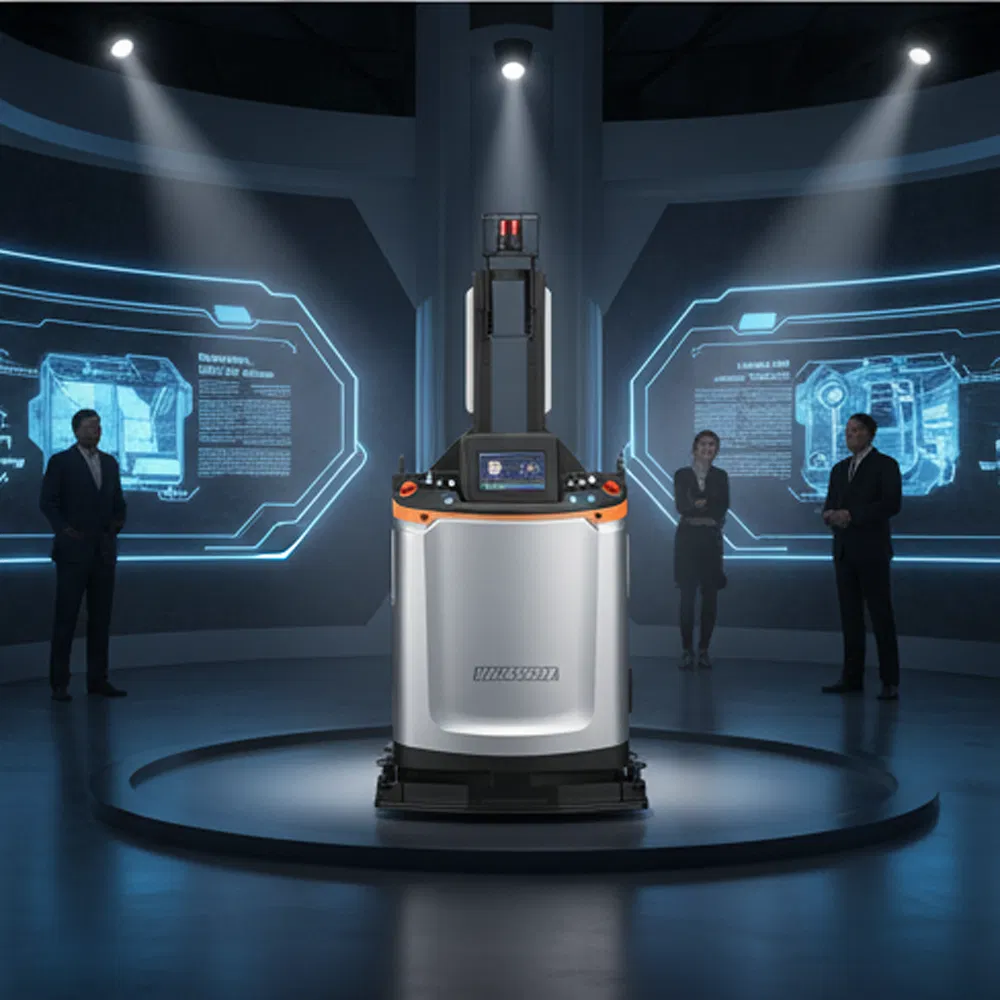

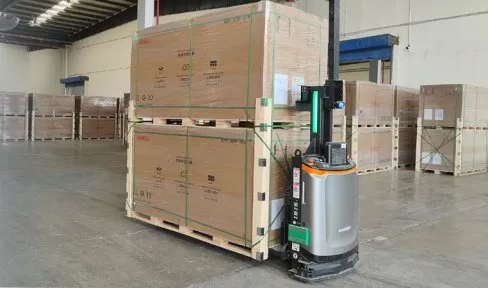

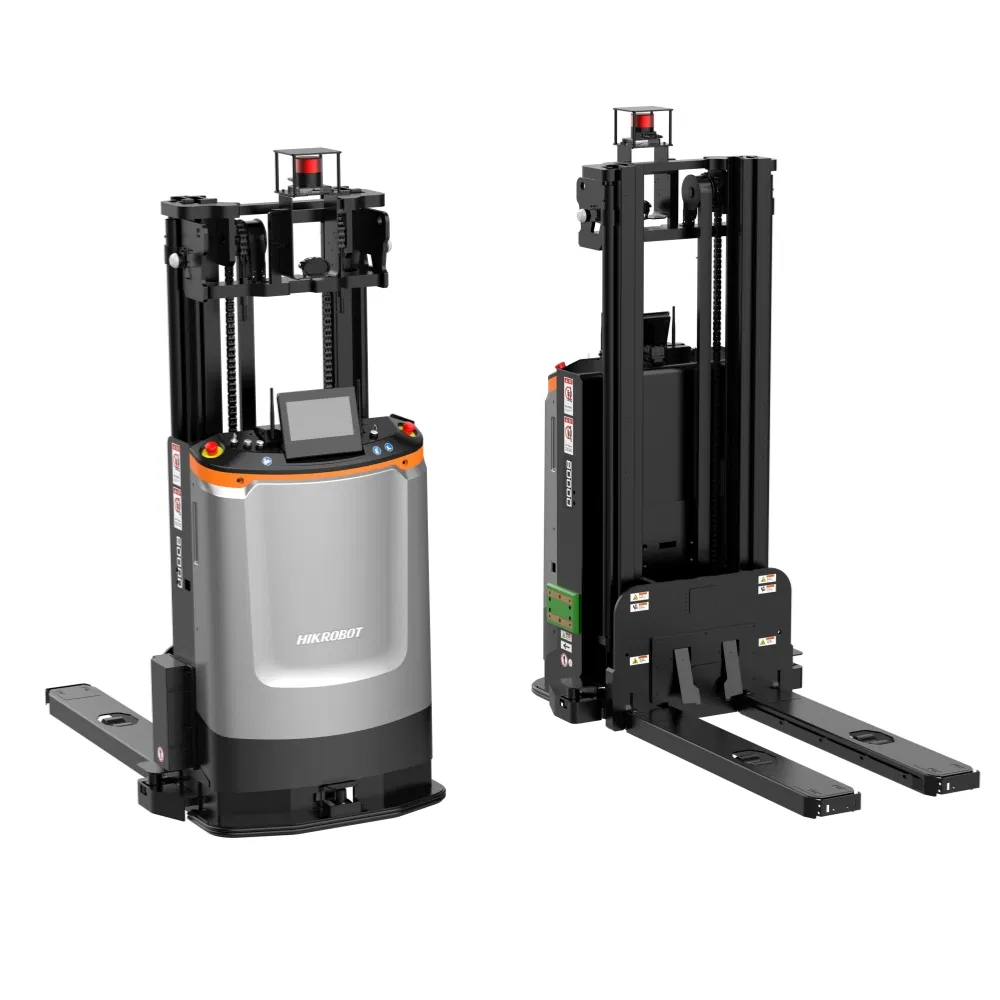

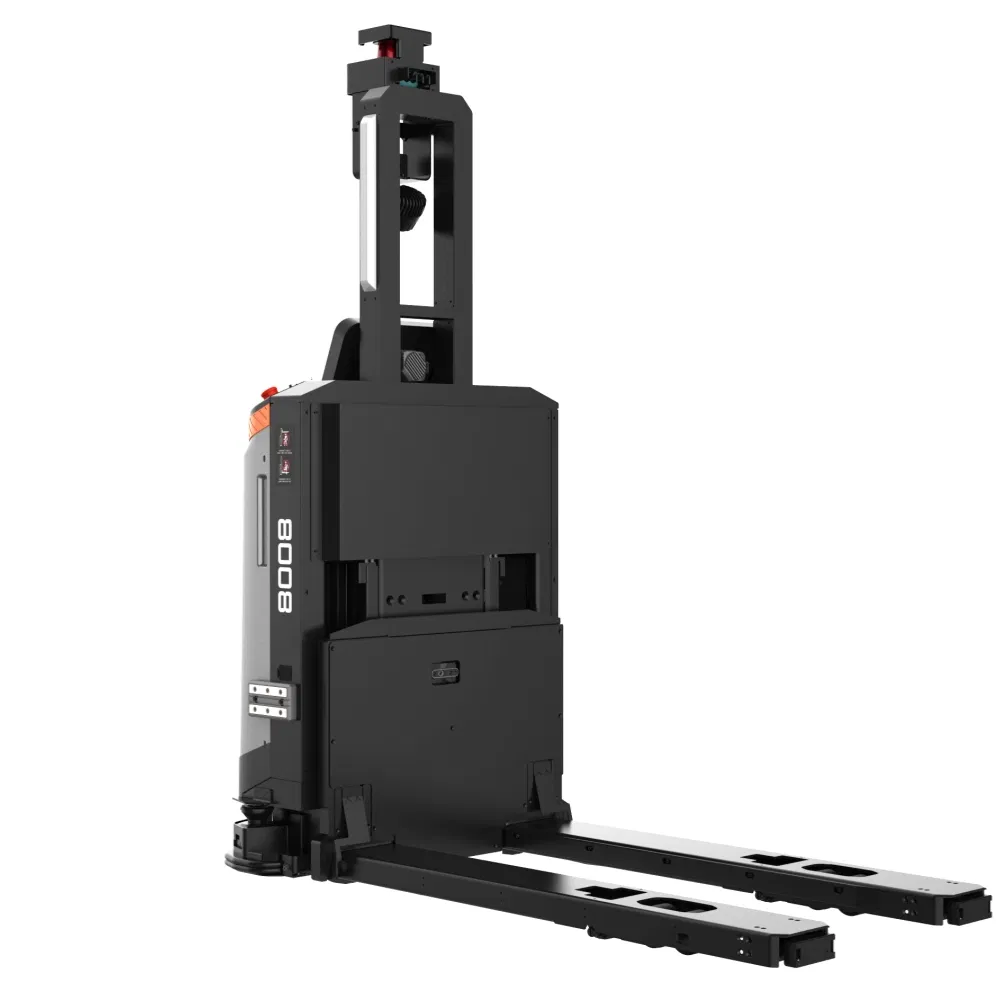

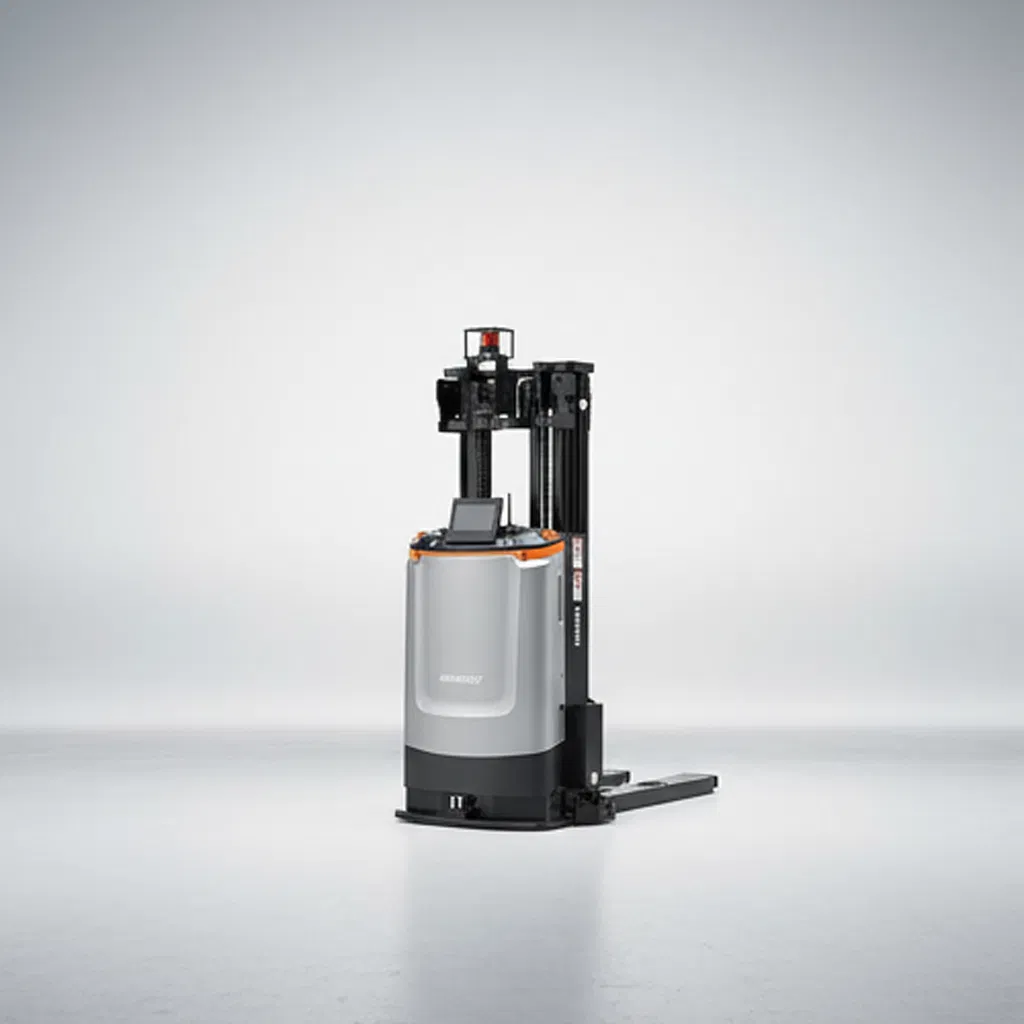

Stacking series FMRs cover the load ranging from 1,000kg to 3,000kg, with the highest lifting height being customized up to 4.5m. The specially designed thickness of the FMR body greatly reduces the operation aisle width, and effectively improves the storage space of materials. Adopting iconic robot head design and modular components, 80% of the components can be used in different scenarios. The whole series obtains full directive CE marking, which are the preferred product series for logistics solutions.
| Model NO. | F4-2000 (4.5m) |
| Load Capacity | 2000 kg |

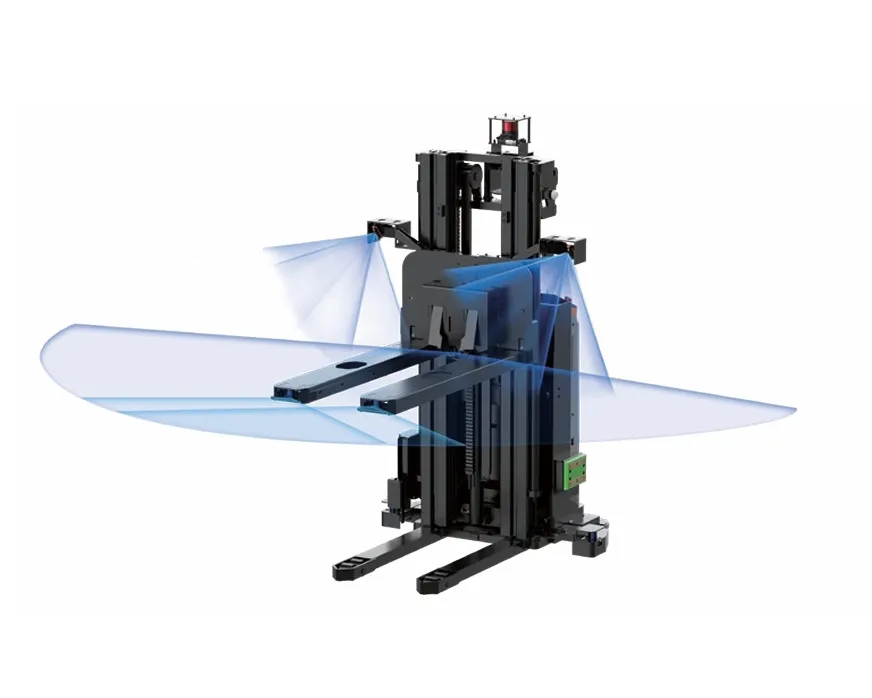

| Safety Features | Collision Avoidance System, Emergency Stop Button, Obstacle Detection Sensors, Safety Laser Scanner |
| Type | AMR (Autonomous Mobile Robot) |
| Dimension (L×W×H) | 2378*1170*1983 mm |
| Weight (with Battery) | 1500 Kg |
| Rated Load | 2000kg |
| Load Center Distance (C) | 600 mm |
| Fork Lifting Height (H3+H13) | 5500 mm |
| Fork Above Ground After Lowering | 107 mm |
| Fork Dimension (S/E/L) | 60/225/1235 mm |
| Fork Outer Width (B5) | 680 mm |
| Applicable Pallet Dimension | 1200*1000 mm |
| Other Control Mode | Point to Point Control |
| Origin | China |
| Package Size | 120.00cm * 200.00cm * 225.00cm |
| Package Gross Weight | 800.000kg |
| Transport Package | Wooden Box |

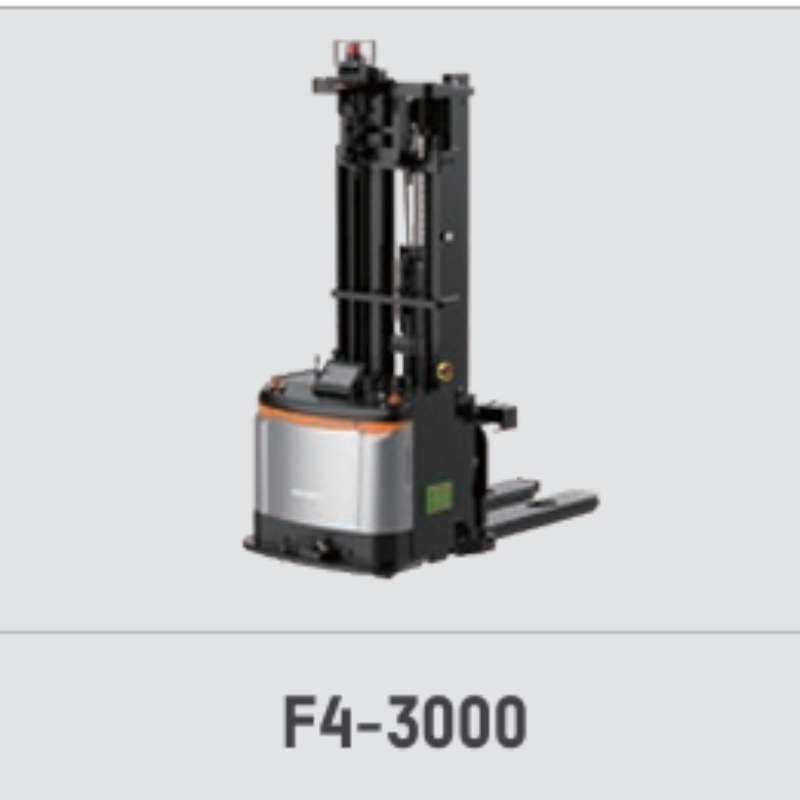

| Model | F4-1000C | F4-1000C | F4-1500 | F4-2000 (3m) | F4-2000 (4.5m) | F4-3000 |
|---|---|---|---|---|---|---|
| Rated running speed (m/s) | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.5 |
| Positioning accuracy (mm)/(°) | ±10/±1 | ±10/±1 | ±10/±1 | ±10/±1 | ±10/±1 | ±10/±1 |
| Min. rotation radius (Wa) (mm) | 1183 | 1183 | 1316 | 1400 | 1400 | 1891 |
| Motion method | Forward, backward, arc, rotate in place | |||||
| Min. aisle width (Ast) (mm) | 2062 | 2062 | 2490 | 2065 | 2065 | 2864 |
| Run time (h) | 6-8 | 6-8 | 6-8 | 6-8 | 6-8 | 6-8 |
| Charging time (h) | ≤ 2 | ≤ 2 | ≤ 2 | ≤ 2 | ≤ 2 | ≤ 2 |
| Laser obstacle avoidance | Support | Support | Support | Support | Support | Support |
| Recorder | Optional | Optional | Optional | Optional | Optional | Optional |
| Bumper Strip Detection | Support | Support | Support | Support | Support | Support |
| Pallet in-position detection | Support | Support | Support | Support | Support | Support |
| Fork collision detection | Support | Support | Support | Support | Support | Support |
| Emergency stop button | Support | Support | Support | Support | Support | Support |
| Indication light | Support | Support | Support | Support | Support | Support |
| Sound and light alarm | Support | Support | Support | Support | Support | Support |
| Human-machine interaction | Touchscreen | Touchscreen | Touchscreen | Touchscreen | Touchscreen | Touchscreen |
| Navigation Mode | L-SLAM/ 3D L-SLAM (Customizable) | |||||
| Fork size customization | Customizable | Customizable | Customizable | Customizable | Customizable | Customizable |
| Pallet attitude recognition | Customizable | Customizable | Customizable | Customizable | Customizable | Customizable |
| Pallet binding recognition | Customizable | Customizable | Customizable | Customizable | Customizable | Customizable |

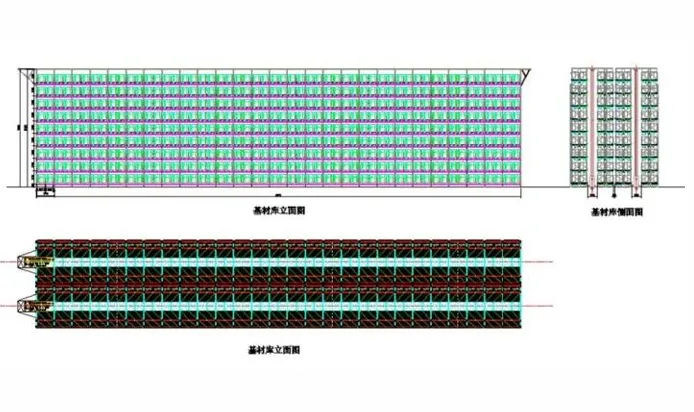

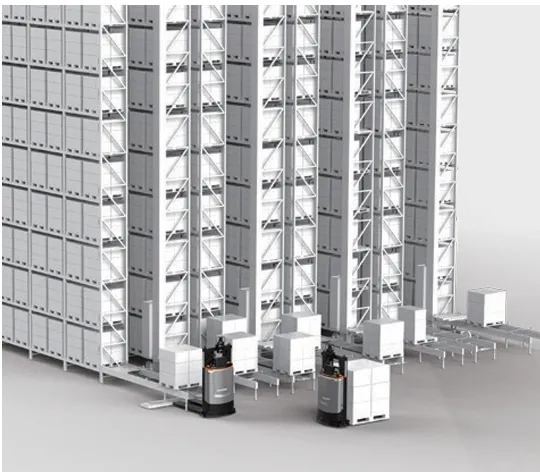

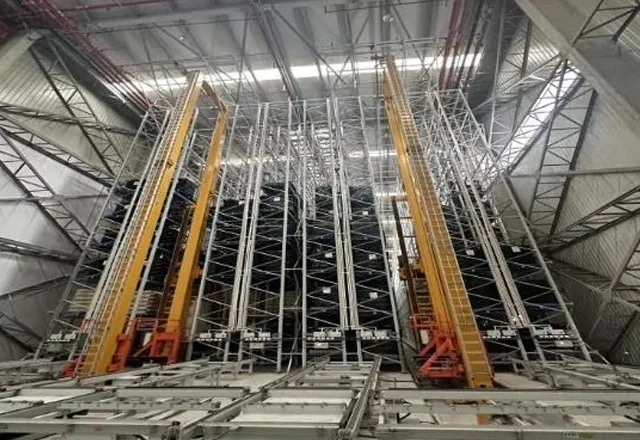

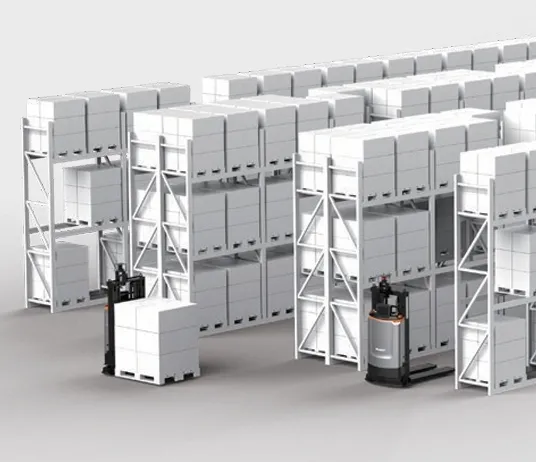

Automated warehouse design, stacker crane and system design.
• 2 stacker cranes, 4 sets of racks, 3,888 storage locations.
• Inbound and outbound flow rate of 92 pallets per hour (P/H).
• 79 days for engineering design.
• 200 days for automated warehouse construction and final delivery.
