We are engaged in the plan, design, manufacture, installation, and consulting service of racking and other material handling systems. As a member of the China Logistics Association, we are well-known for providing series of automated logistics systems solutions and management software.

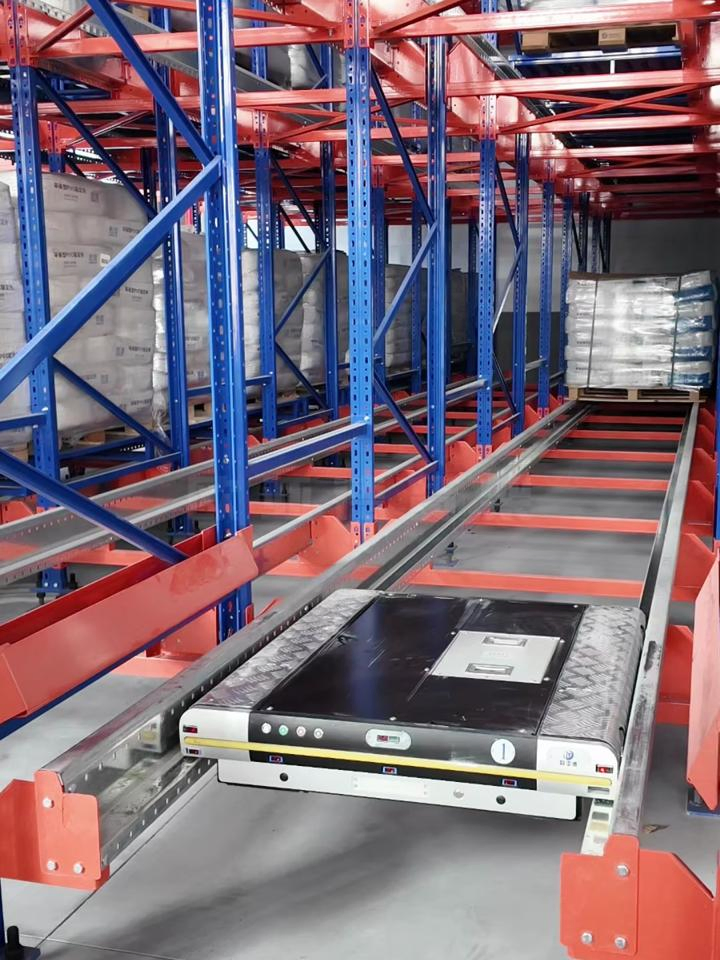

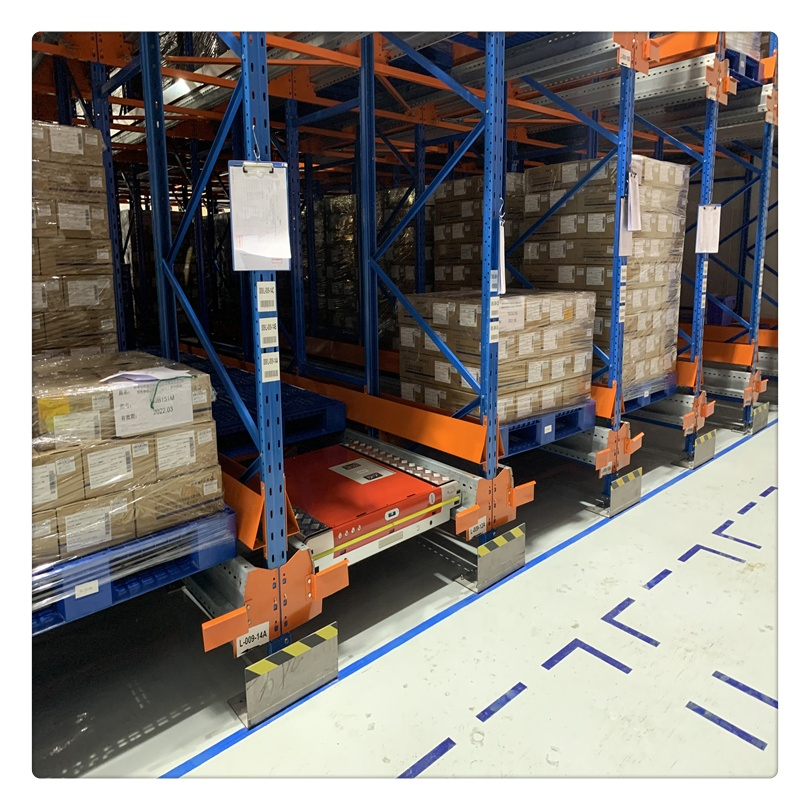

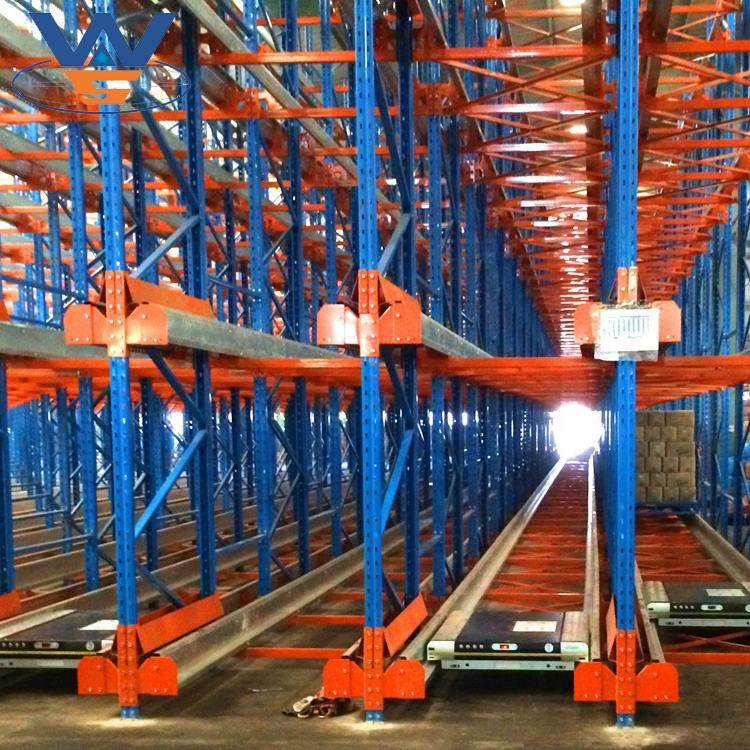

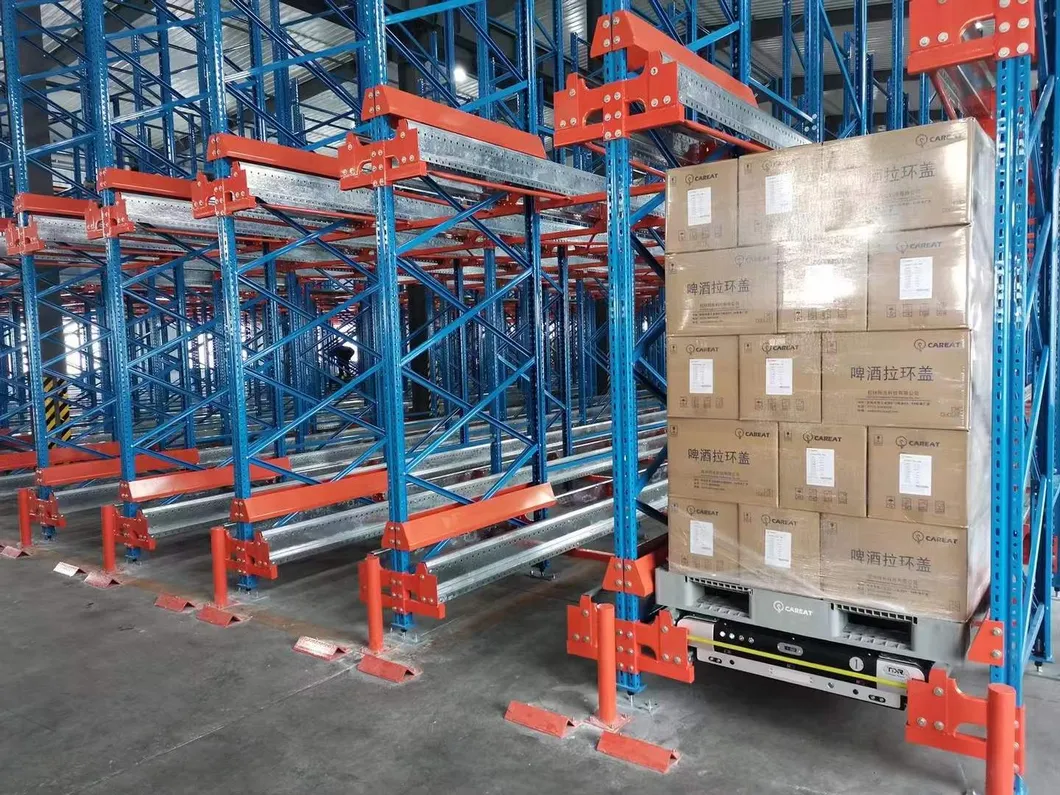

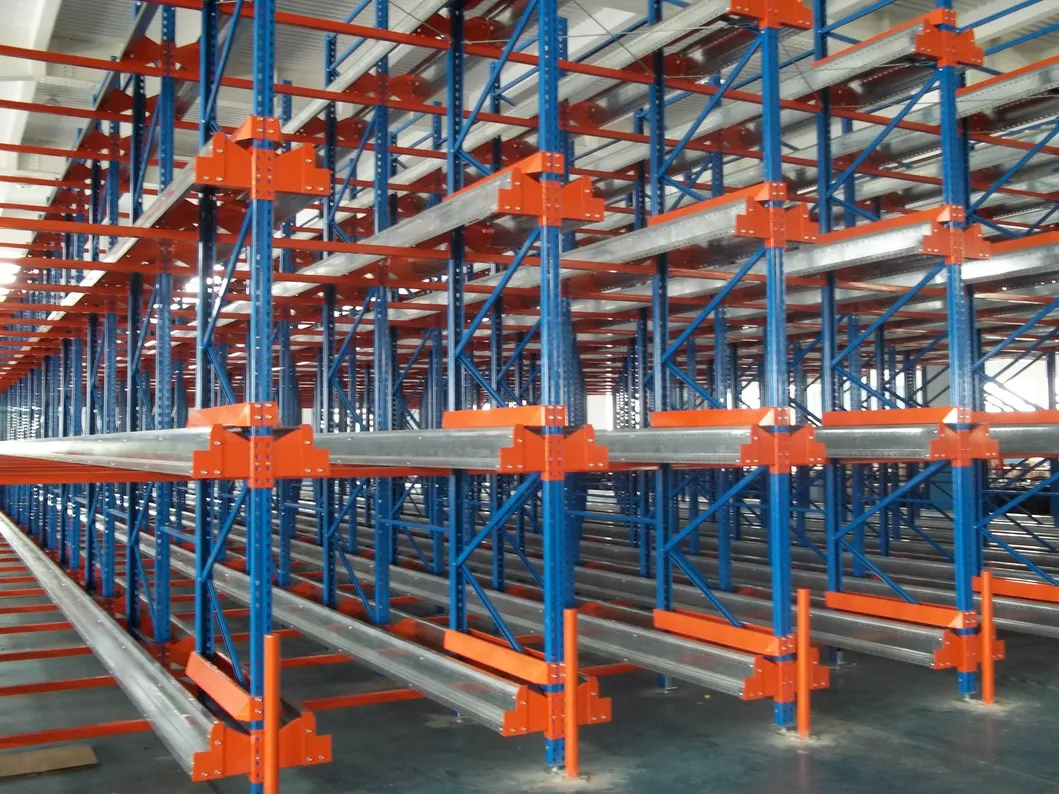

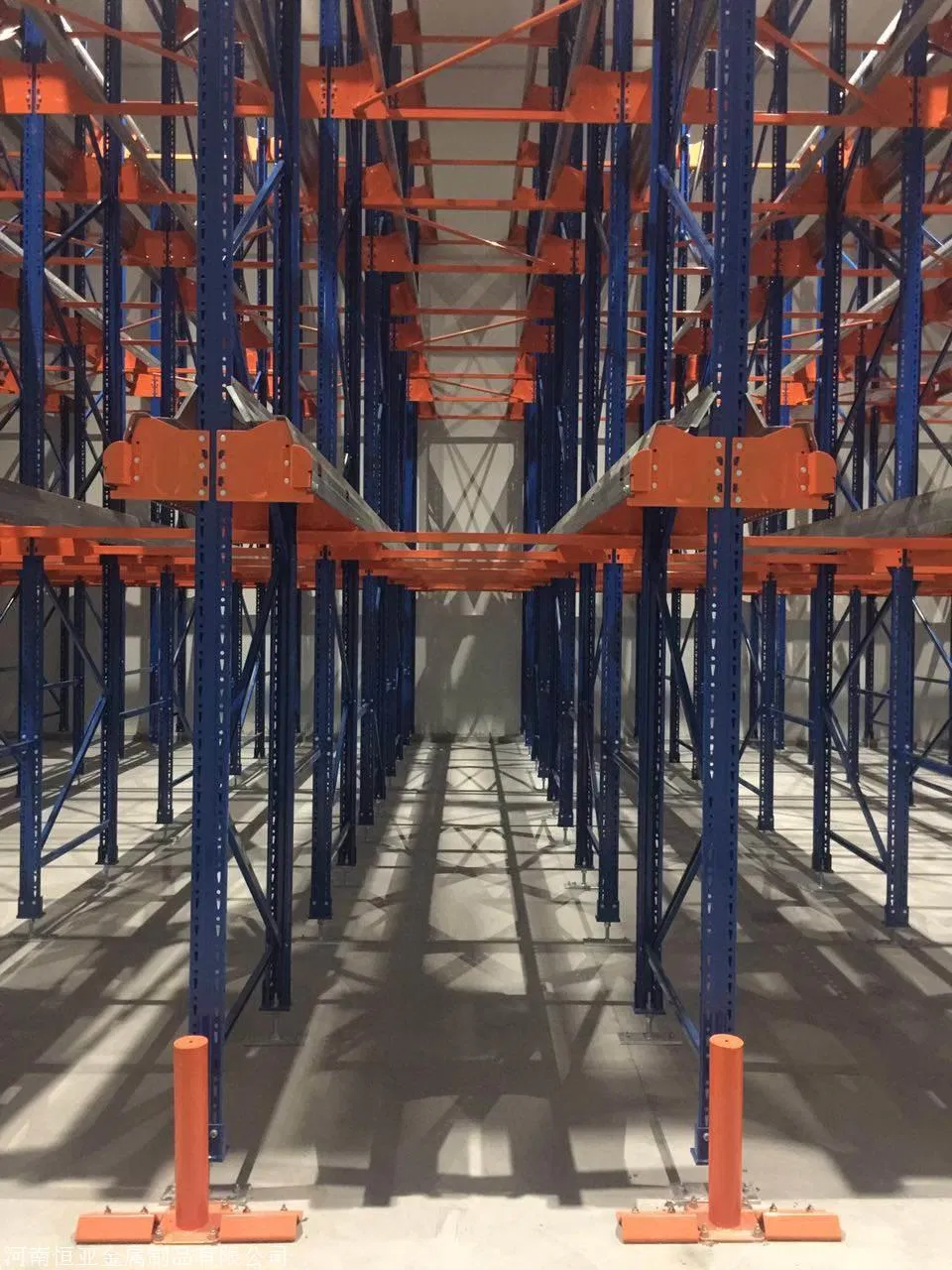

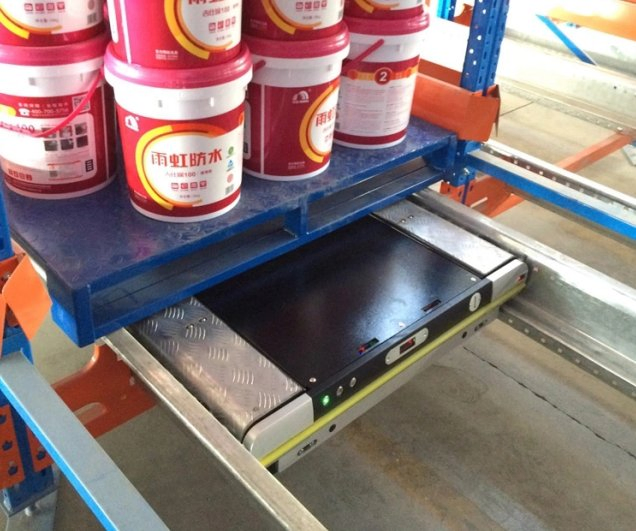

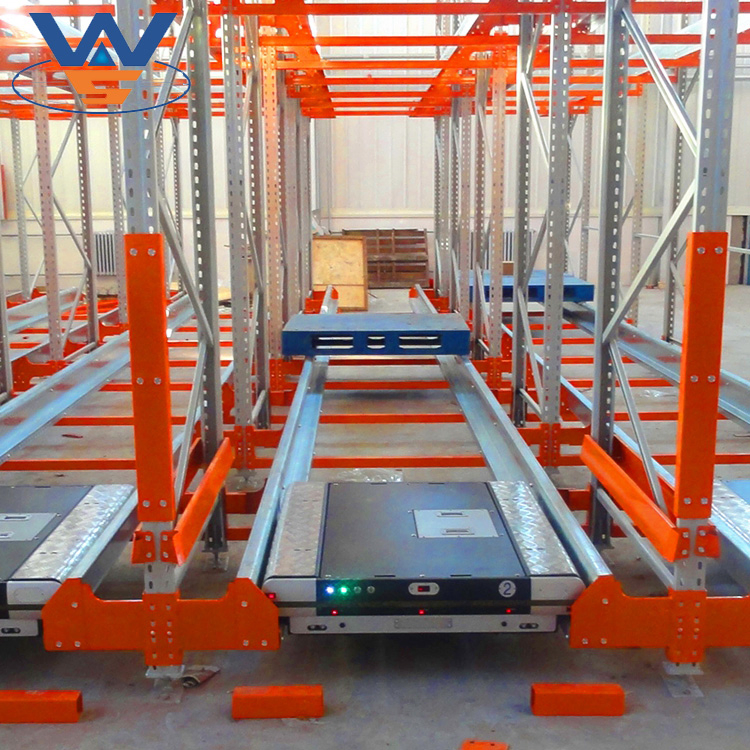

A shuttle system consists of supporting rack, shuttle rails, and a shuttle cart. The shuttle cart runs on the rails and is propelled by an electric motor. It also has a platform on the top that can lift up and down. The lifting action is required to lift a pallet that is placed on the rail and then the electric motor moves the cart with the pallet on top into the rack in order to deposit the pallet in its right position.
When the pallet is required, the cart moves in under the pallet, lifts it, and brings it to the front of the rack where it can be retrieved by a forklift. All the movements of the shuttle cart are controlled with a hand-held remote control. The shuttle cart is placed in the desired lane with a forklift.

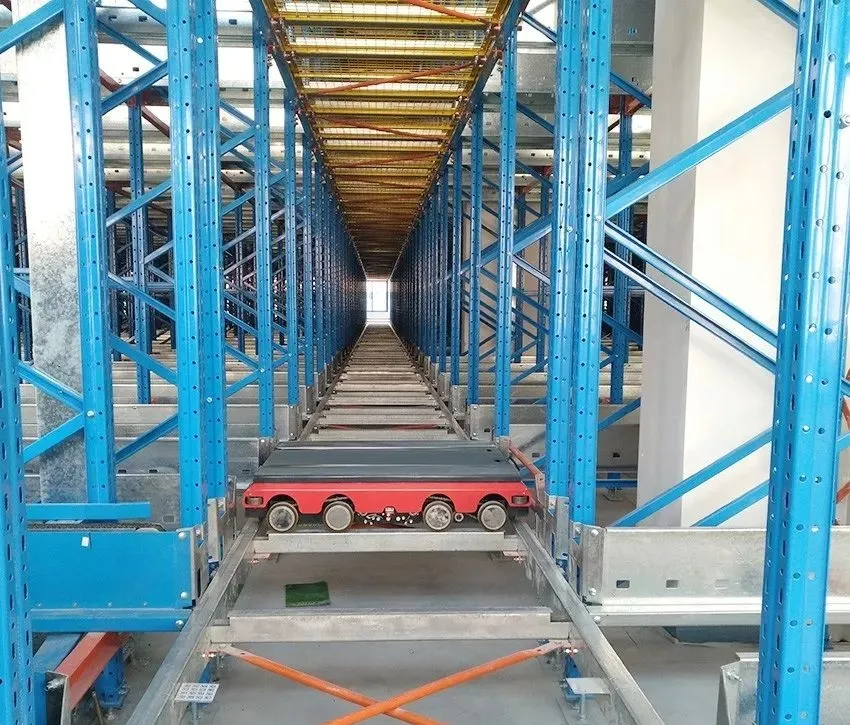

The Shuttle is a fully programmable deep lane storage and retrieval system used to transport pallets within a racking structure for maximum storage and throughput of bulk stored items. The shuttle system allows for more pallets to be stored in a given area when compared to normal static rack. It also minimizes damage to the rack because the forklift does not have to travel into the racking, as is the case with drive-in rack. Accessibility is increased because all the levels can be accessed at any time. In a drive-in rack system, the bottom level must be cleared first in order to be able to access the higher levels.
• Goods can be stored in the warehouses with highest density and low cost.
• FIFO or FILO, Optional.
• As each pallet only needs to be positioned at the beginning of the deep lane storage it increases efficiency within operations.
• Better safety and anti-seismic performance than drive in racks.
| Nominal Loading Capacity | 500 KGS ~ 2000 KGS |
| Speed | Max: 50M/Min |
| Operation Methods | To be operated manually or vehicle-mounted or Radio remote control |
| Temperature in the freezer | -30°C |
