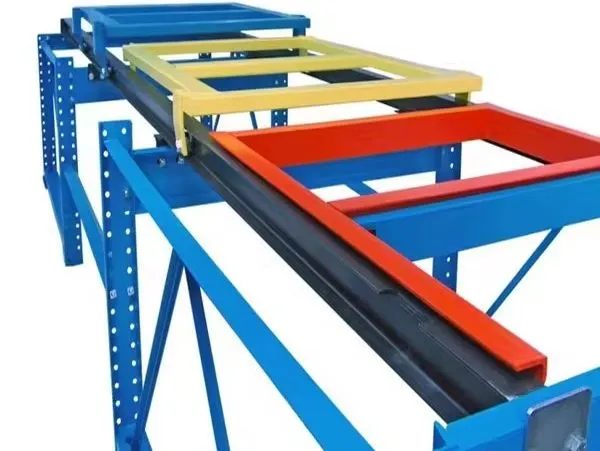

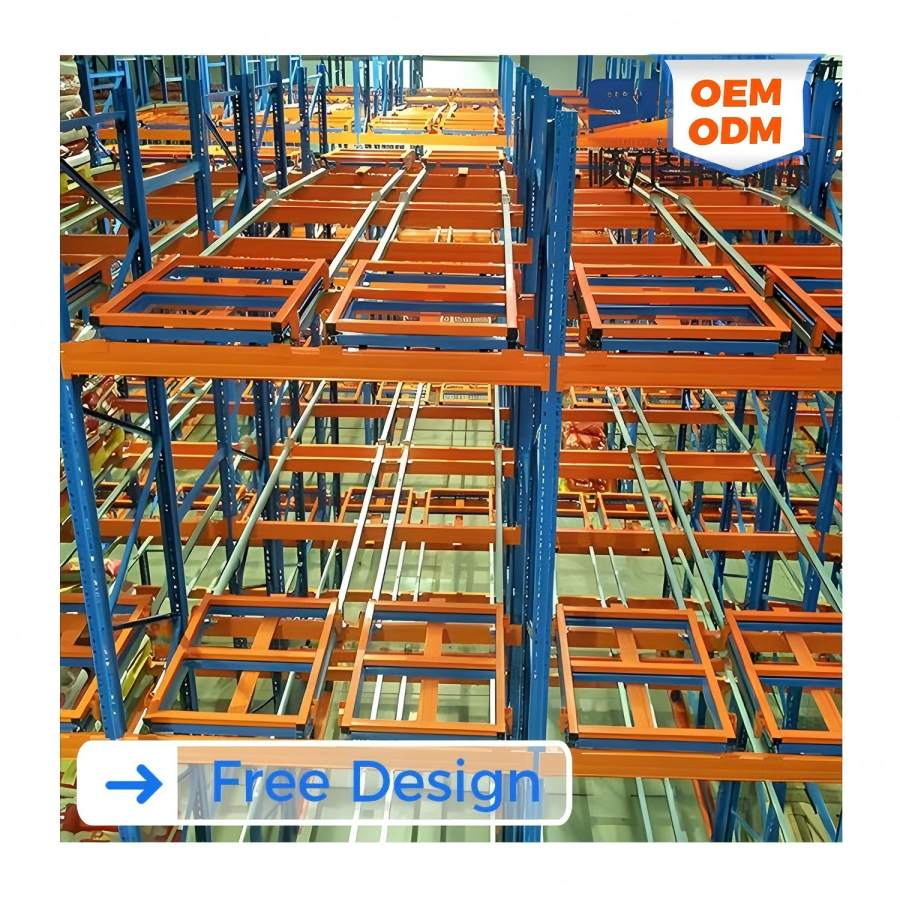

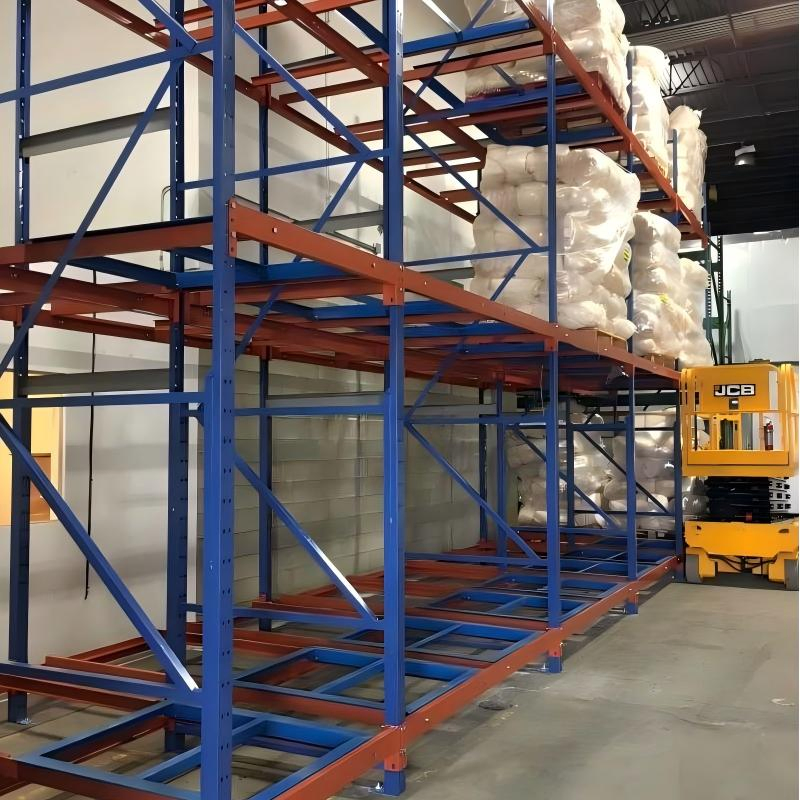

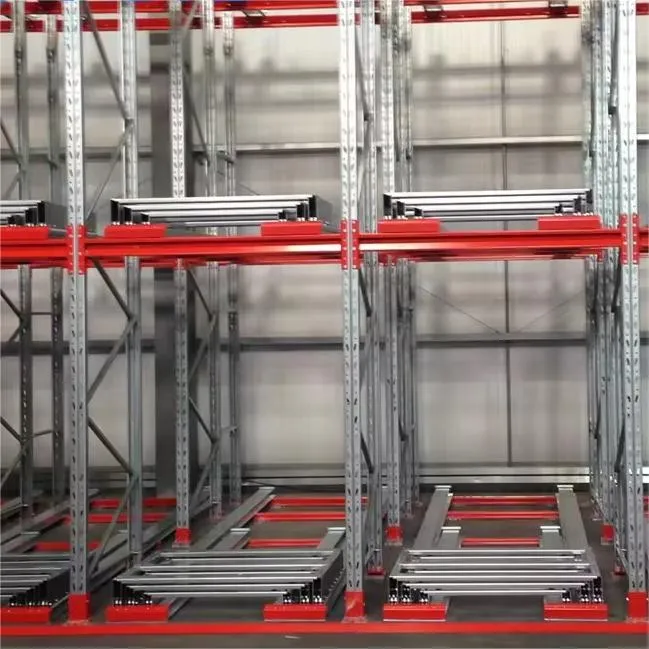

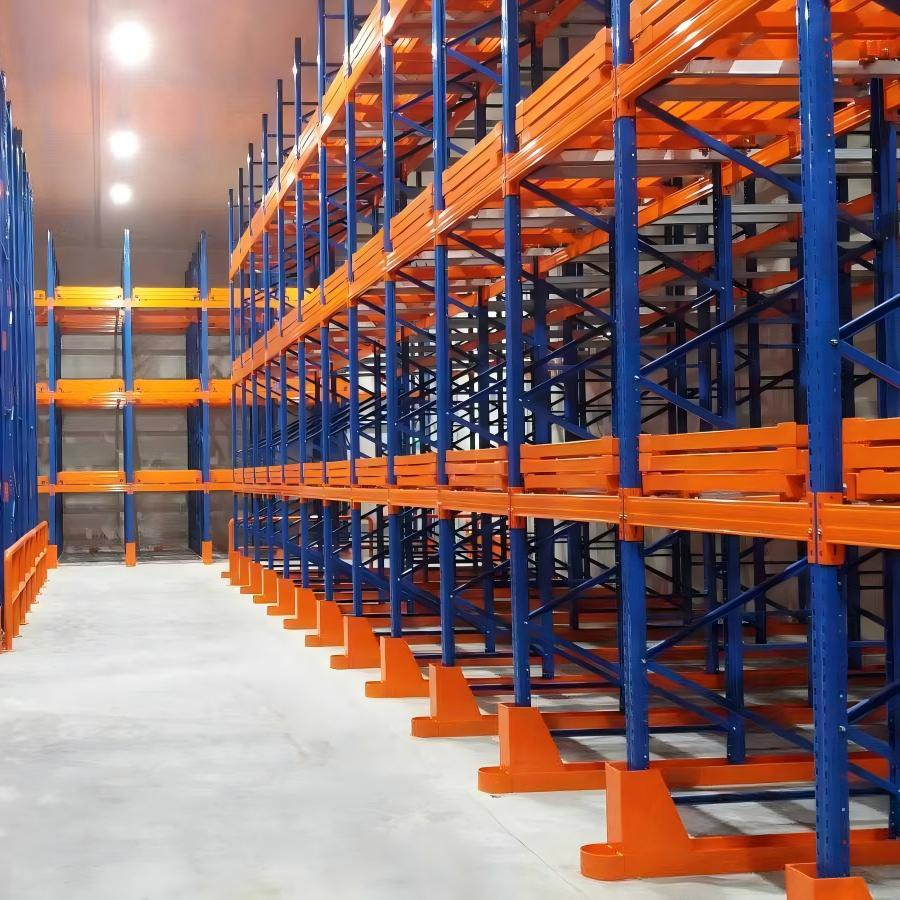

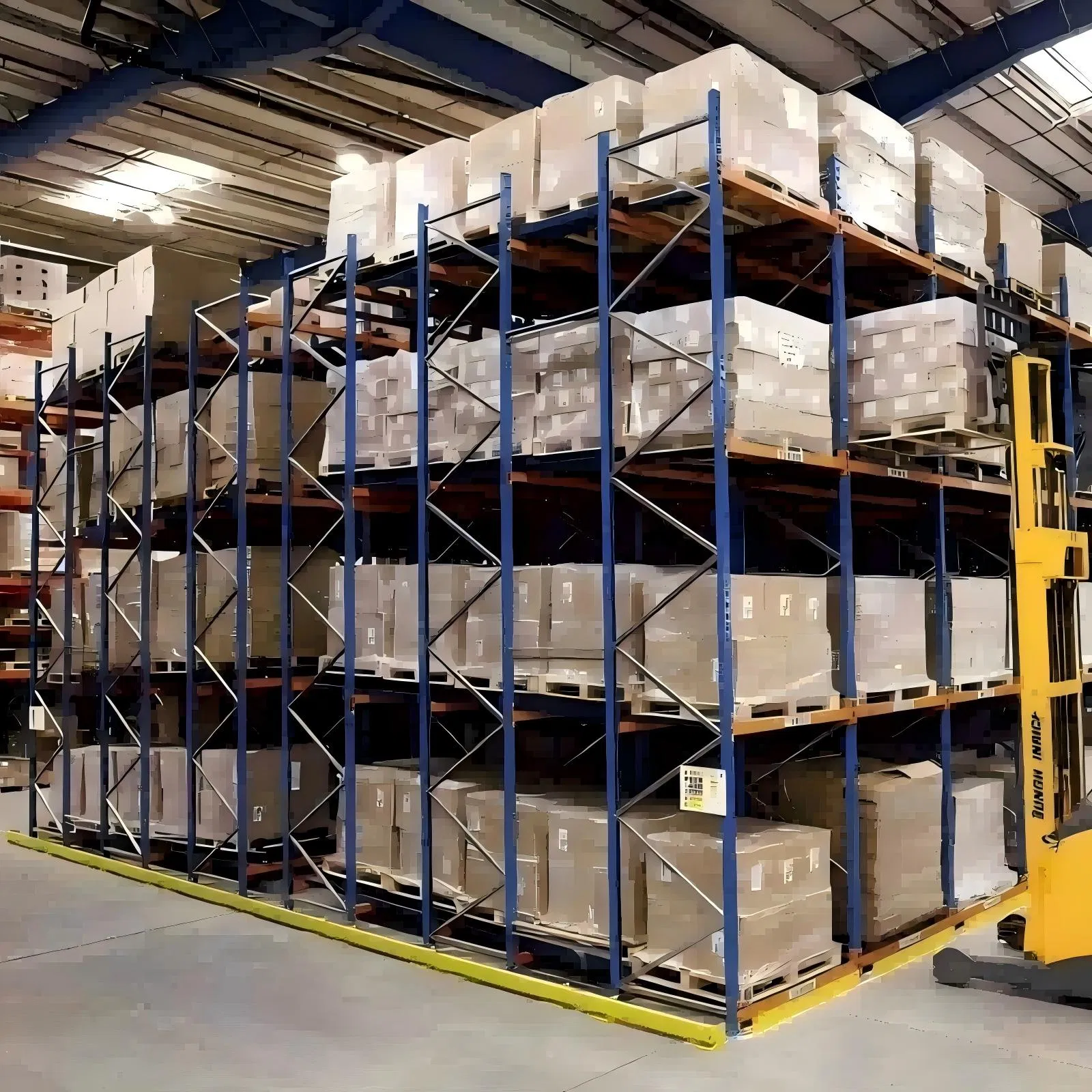

Push-back racking: Push-back racking is composed of pallet racking and combined with trolley and around 2° guide rail. The push back pallet rack uses heavy-duty carts to form 2 to 5-pallets-deep configurations, single pallet loading capacity is less than 1000kg.

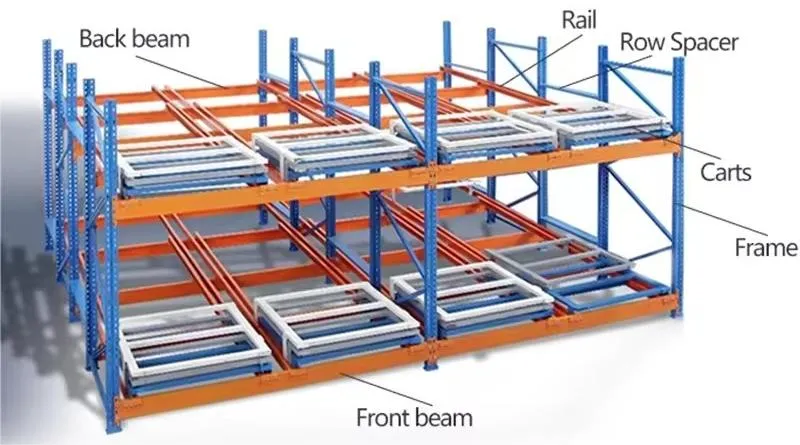

The racking has a slight downward slope, allowing pallets to be easily moved in and out.

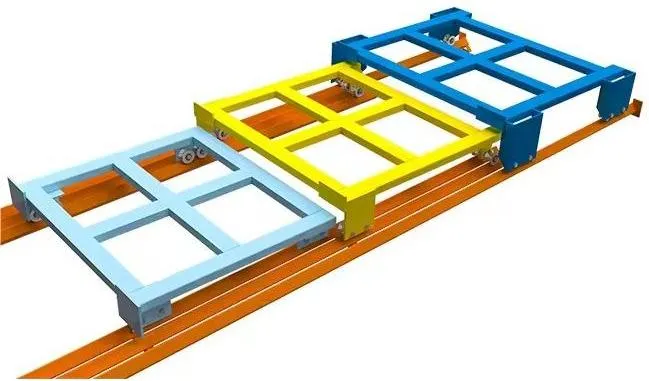

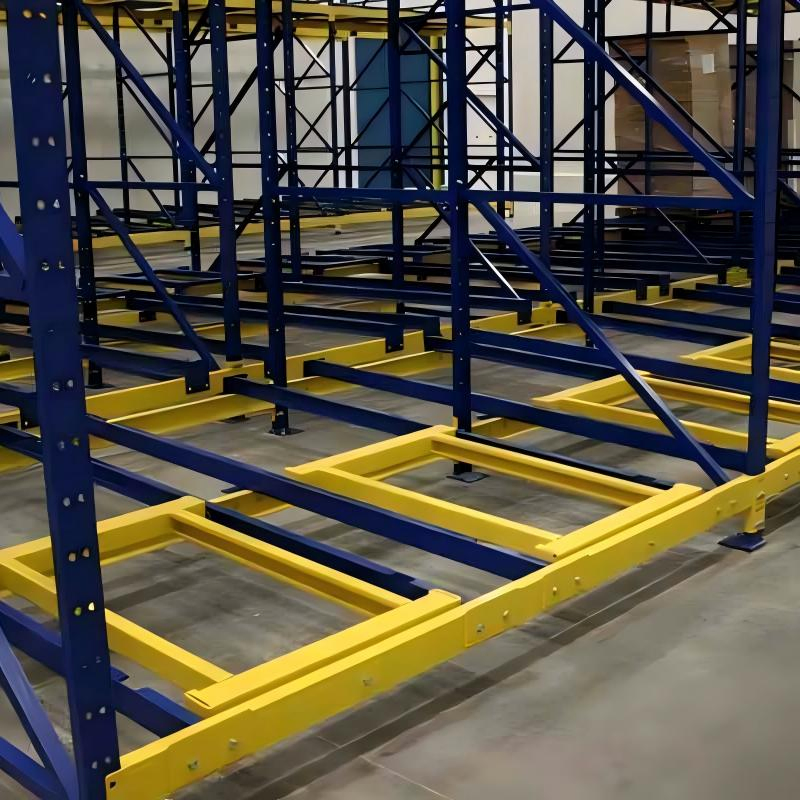

Wheeled carts are used to hold the pallets. These carts can be nested within each other, allowing multiple pallets to be stored in the same storage location.

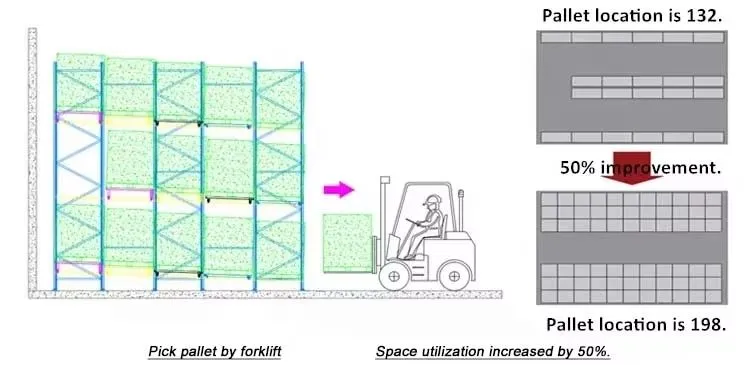

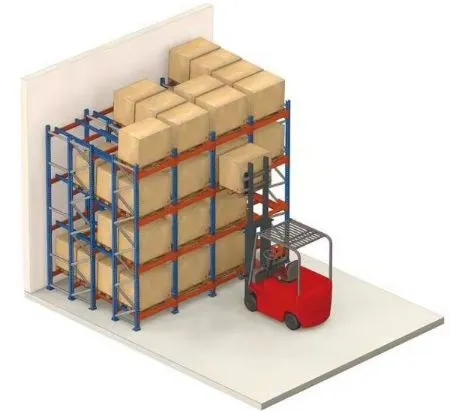

The last pallet loaded on the sloped rail can be retrieved first, suited for warehouses with consistent inventory turnover.

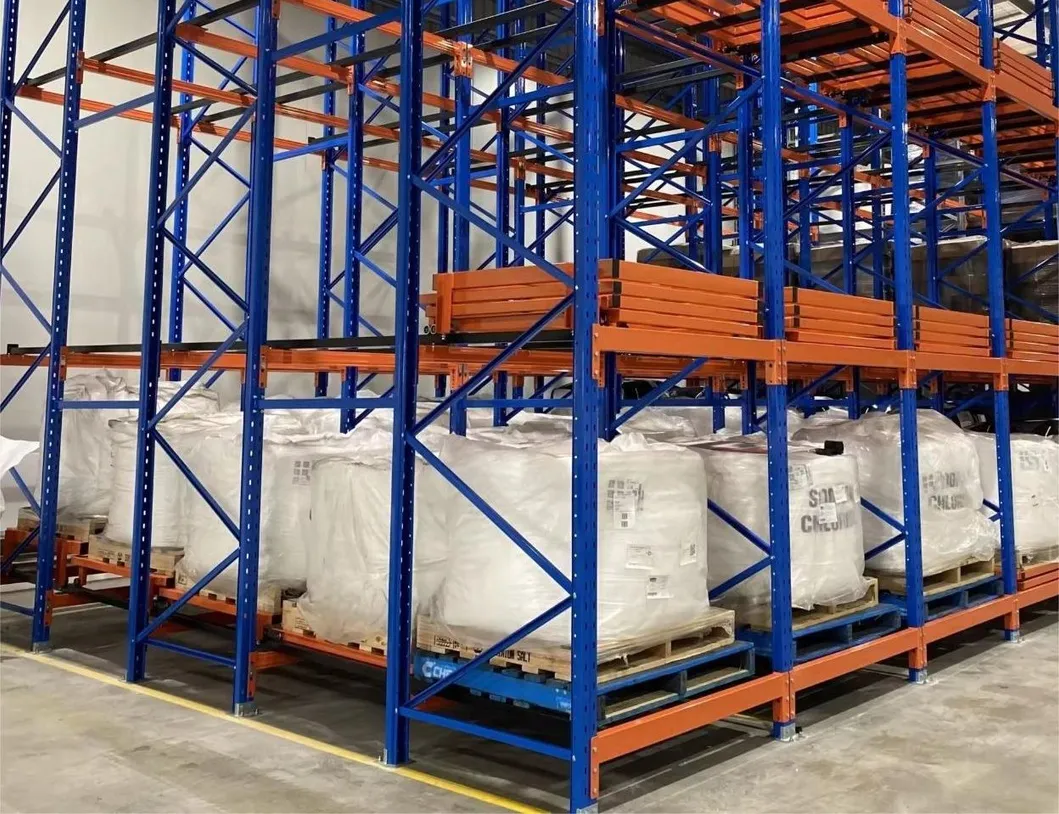

Push-back racking is commonly used in retail distribution centers, manufacturing facilities, and cold storage warehouses. It provides an excellent balance of storage density, accessibility, and operational efficiency.
| Rack Type | push back pallet rack |
| Pick-up Mode | first in, last out (FILO) |
| Structure | knock down or bolted |
| Forklift Aisle | around 3200mm, depends on customer's forklift parameter |
| Load Capacity | ≤ 1500kgs/pallet |
| Dimension | customized based on clients pallet |
| Core Components | frame (upright, post, bracing, base plate, fasteners), beam, support rail, cart, spacer |
| Other Components | upright protector, frame protector, guide rail, protect mesh |
| Upright Specification | 80*60, 90*60, 90*70, 100*70, 120*95, 120*135 (mm) |
| Beam Specification | 80*50, 100*50, 110*50, 120*50, 130*50, 140*50, 160*50 (mm) |
| Finish | Epoxy resin electrostatic spraying (powder coating), galvanized |
| Coating thickness | no less than 60um for average thickness for powder coating |
| Material | Q235B, or Q355 |
| Color | Ral 5015 (sky blue), Ral 5005 (signal blue), Ral 2004 (pure orange), Ral 1003 (signal yellow), Ral 7035 (light grey) or Customized colors |
Q: Are you manufacturer or trading company?
A: We are experienced manufacturer in the warehouse storage industry.
Q: How is your delivery time?
A: Generally, it is within 20 days against formal order and deposit. It also depends on other factors such as order quantity.
Q: What is the payment term?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q: What is your terms of delivery?
A: EXW, FOB.
Q: Are samples available?
A: Yes, we can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q: What is the material being used for your products?
A: Mild steel Q235.
