Selective Heavy Duty Steel Pallet Warehouse Rack | Industrial High Quality Storage Shelving | China Factory

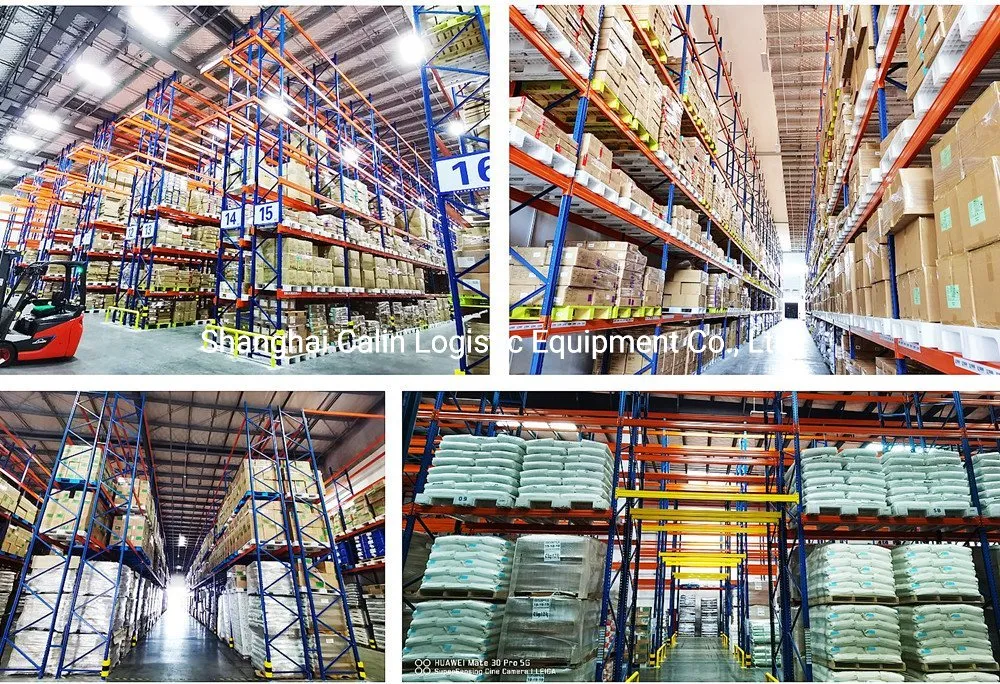

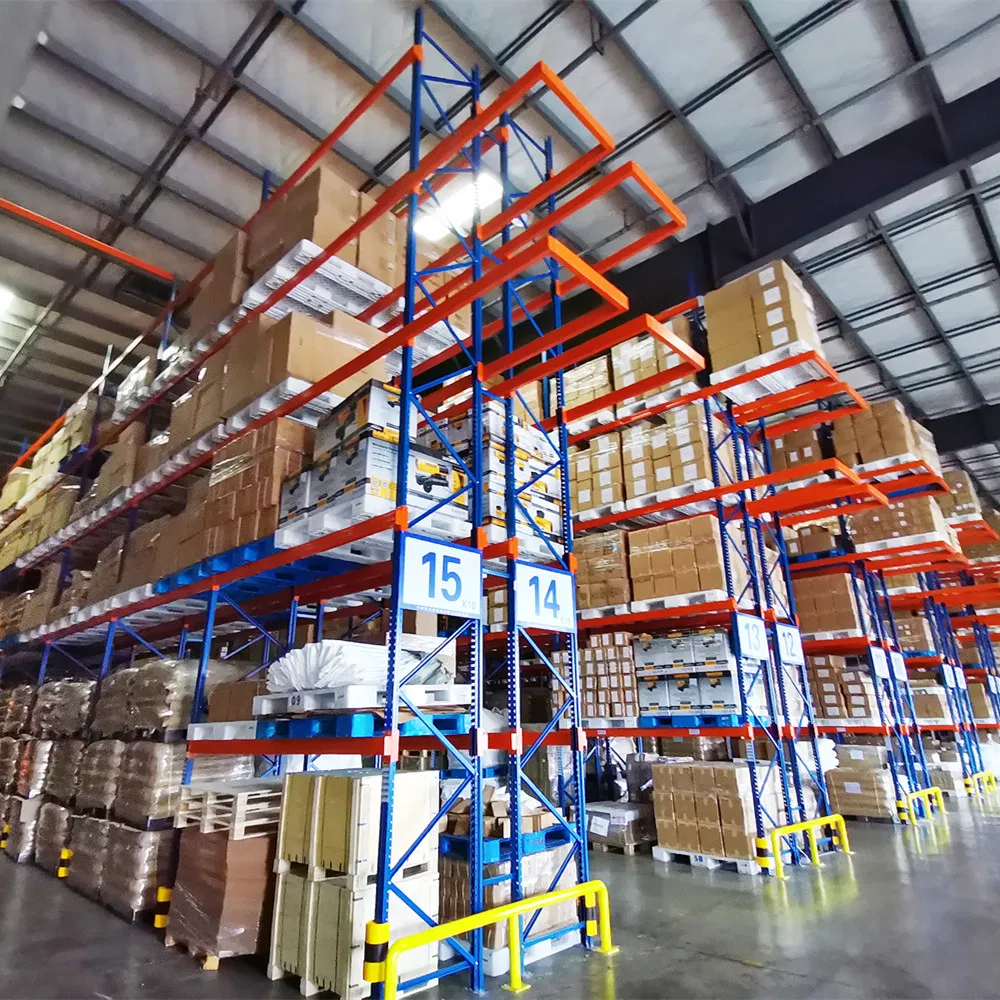

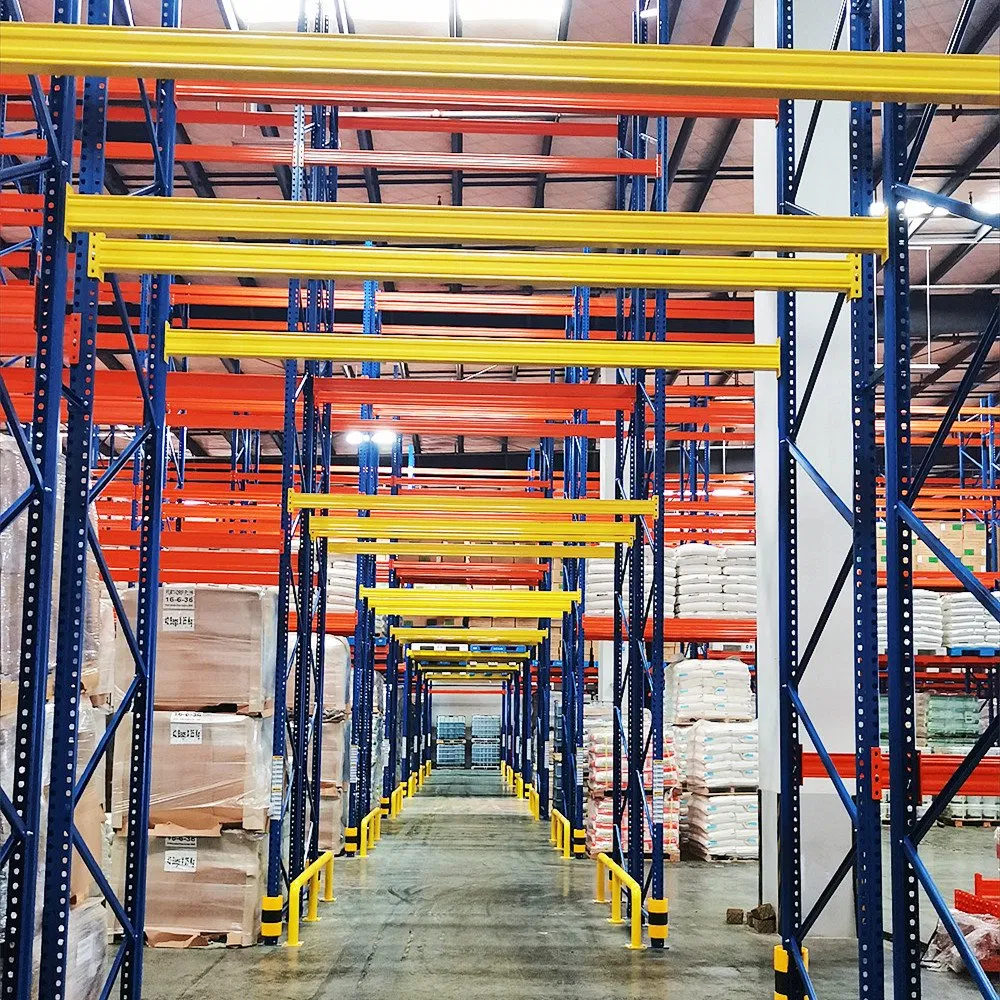

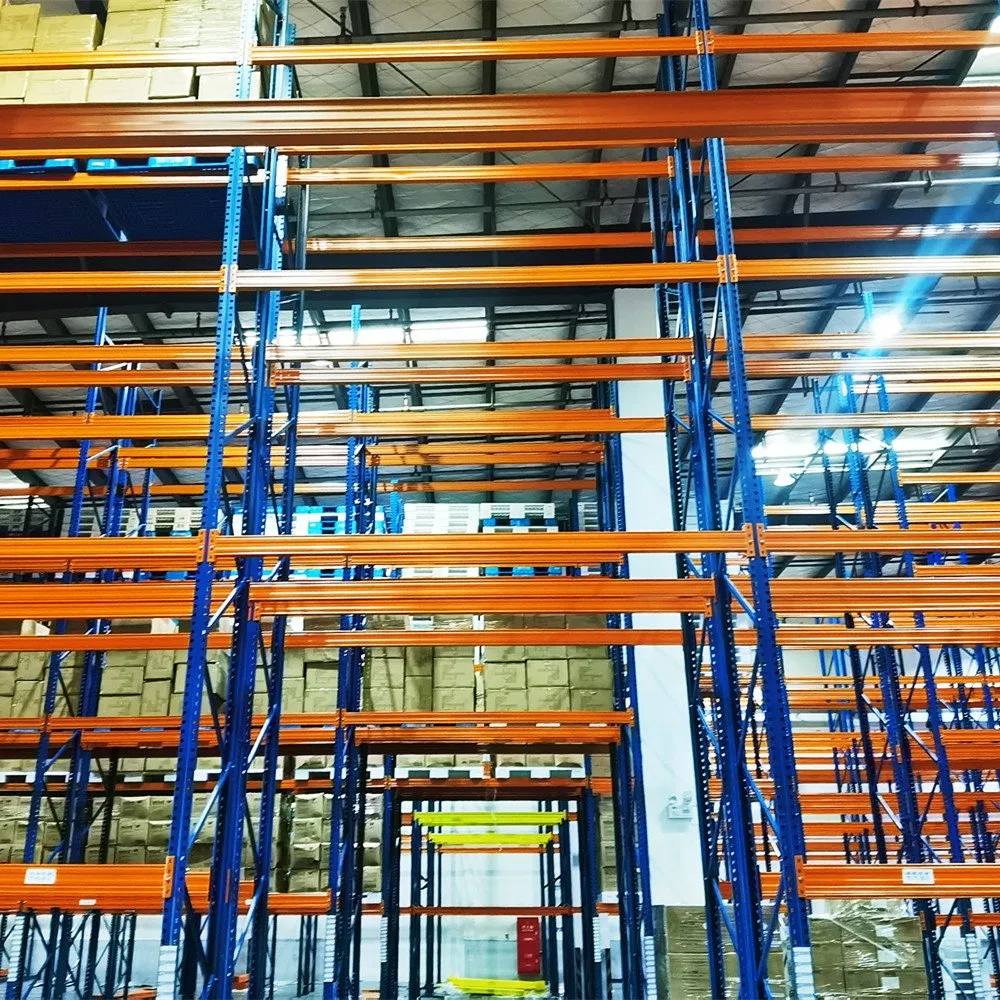

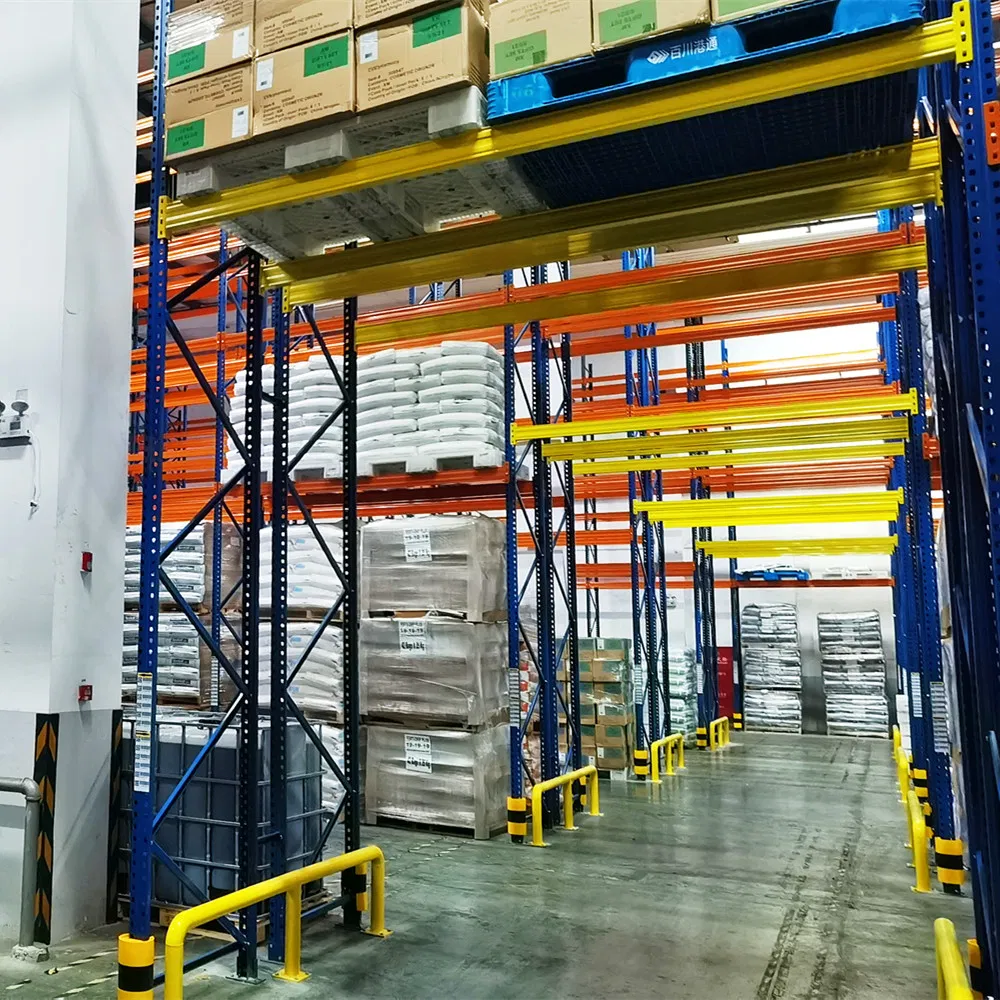

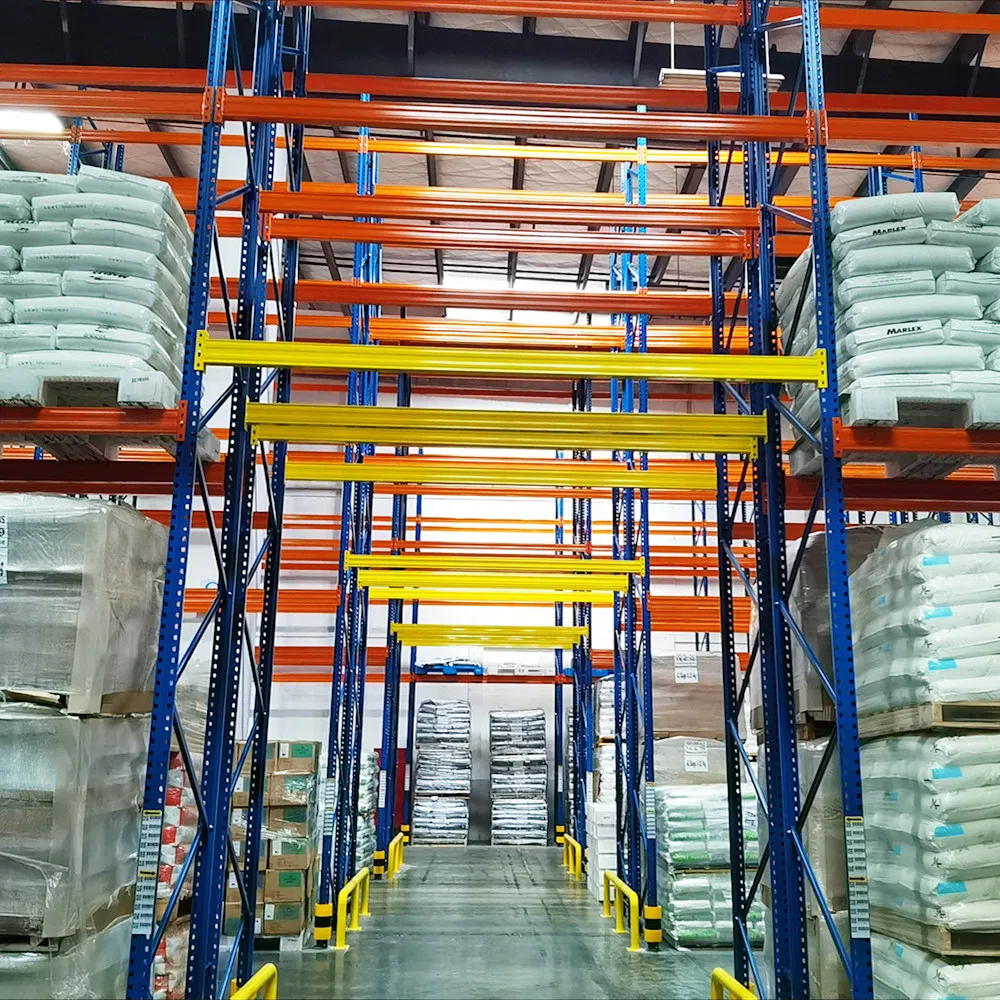

Customized industrial warehouse pallet rack storage system is a popular choice for storing heavy-duty pallets and hand-picking cartons. Warehouses typically manage inventory in both palletized and carton modes with suitable handling equipment, and this system effectively improves operational efficiency, safety, and space utilization. It is widely used in warehouses, supermarkets, distribution centers, and manufacturing facilities worldwide.

Designed to work with Electric Stackers, Counter Balance Trucks, and Reach Trucks to meet diverse needs, this racking system leverages vertical space while enabling immediate access to every pallet. Crafted from industrial-grade Q235B steel, it handles heavy loads ranging from 2 tons to 4 tons per pallet. Its heavy-duty box beams with double C-profiles deliver exceptional load-bearing capacity, making it a reliable solution for heavy-duty storage demands.

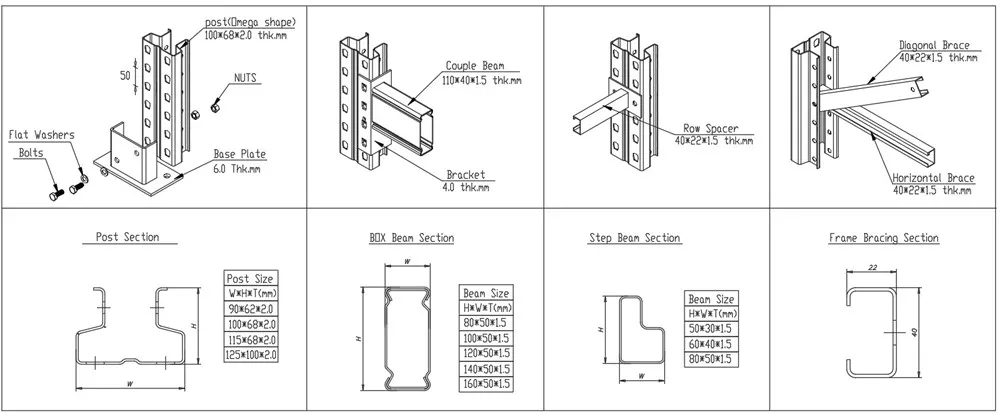

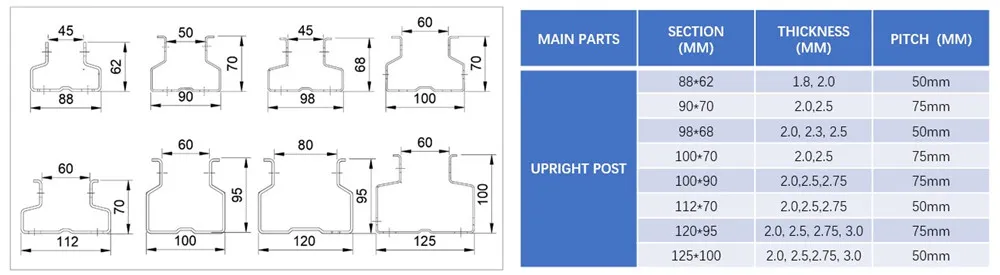

• Composition: 2 cold-formed uprights + multiple diagonals (high precision forming for structural stability)
• Connection: Bolted assembly with lock-nuts for easy maintenance and low repair cost if damaged by lift trucks
• Performance: Max height up to 15m (single-piece upright length up to 15m); max bay load up to 30 tons
• Thickness: 1.8mm - 3.0mm (customized based on loading requirements)

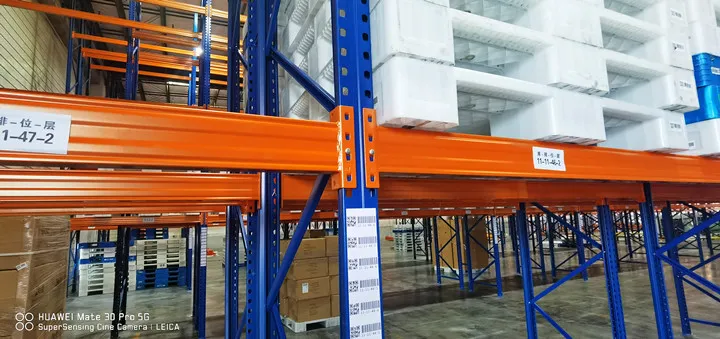

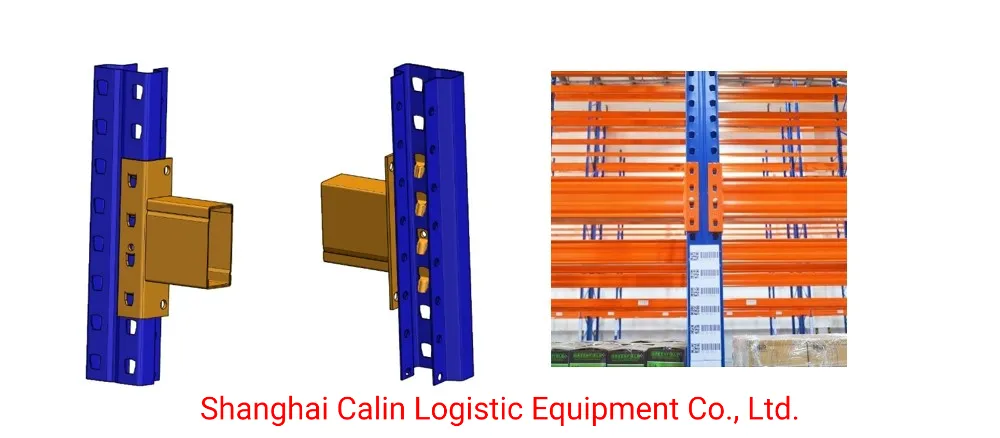

• Composition: Two cold-formed C-profiles, offering excellent torsion resistance and stiffness in horizontal and vertical directions
• Load Capacity: Up to 4 tons UDL per level; deflection <1/200 (meets international structural safety standards)
• Thickness: 1.5mm - 2.0mm (customized based on span and load demands)

We offer a full range of matching accessories to optimize storage safety and functionality:

• Pallet support bar
• Wire mesh decking
• Grating panel
• Steel shelves
• Corner guard
• Barrier
• Frame protector
• Edge protectors (for thin materials like steel decking)
• Other customized accessories (industry common supplementary parts)

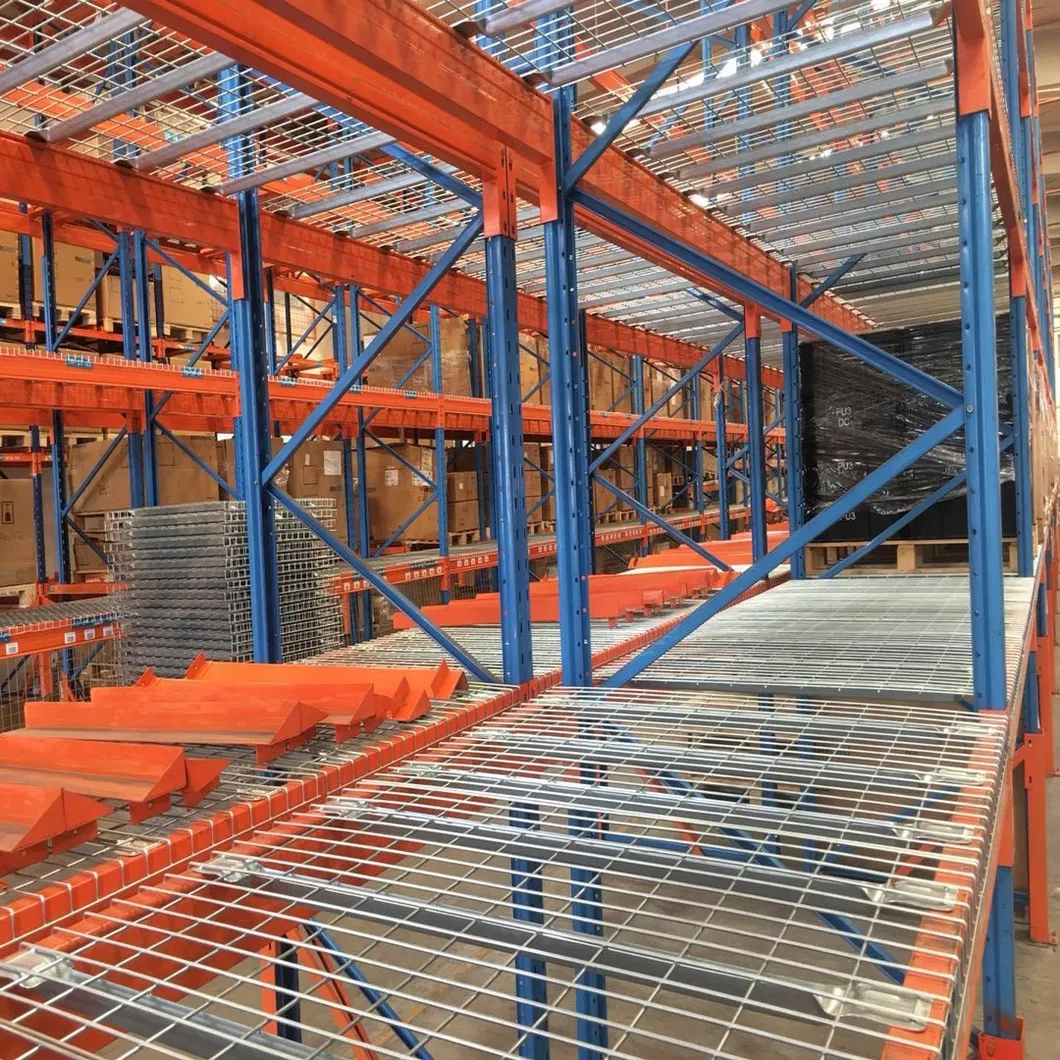

Wire mesh decking

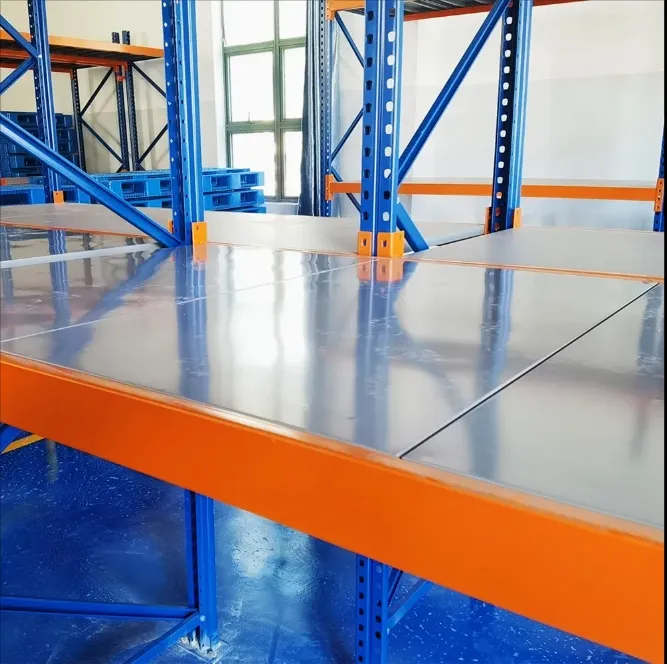

Steel Shelves

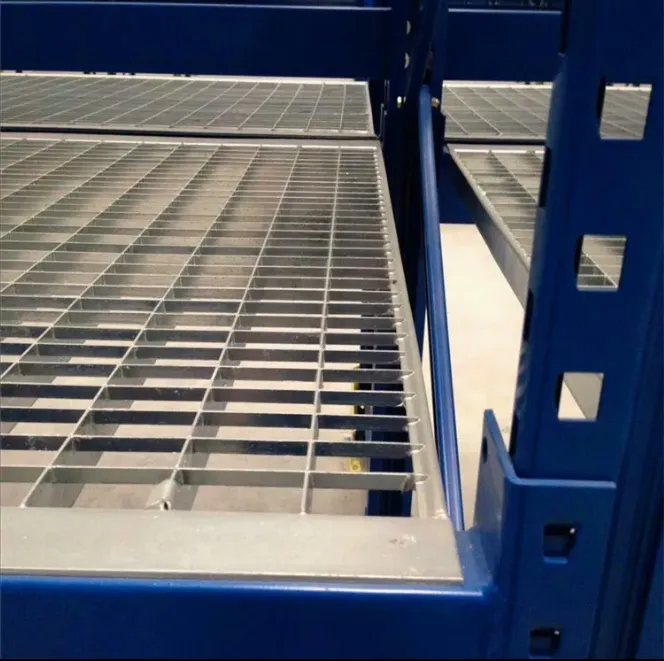

Grating Panel

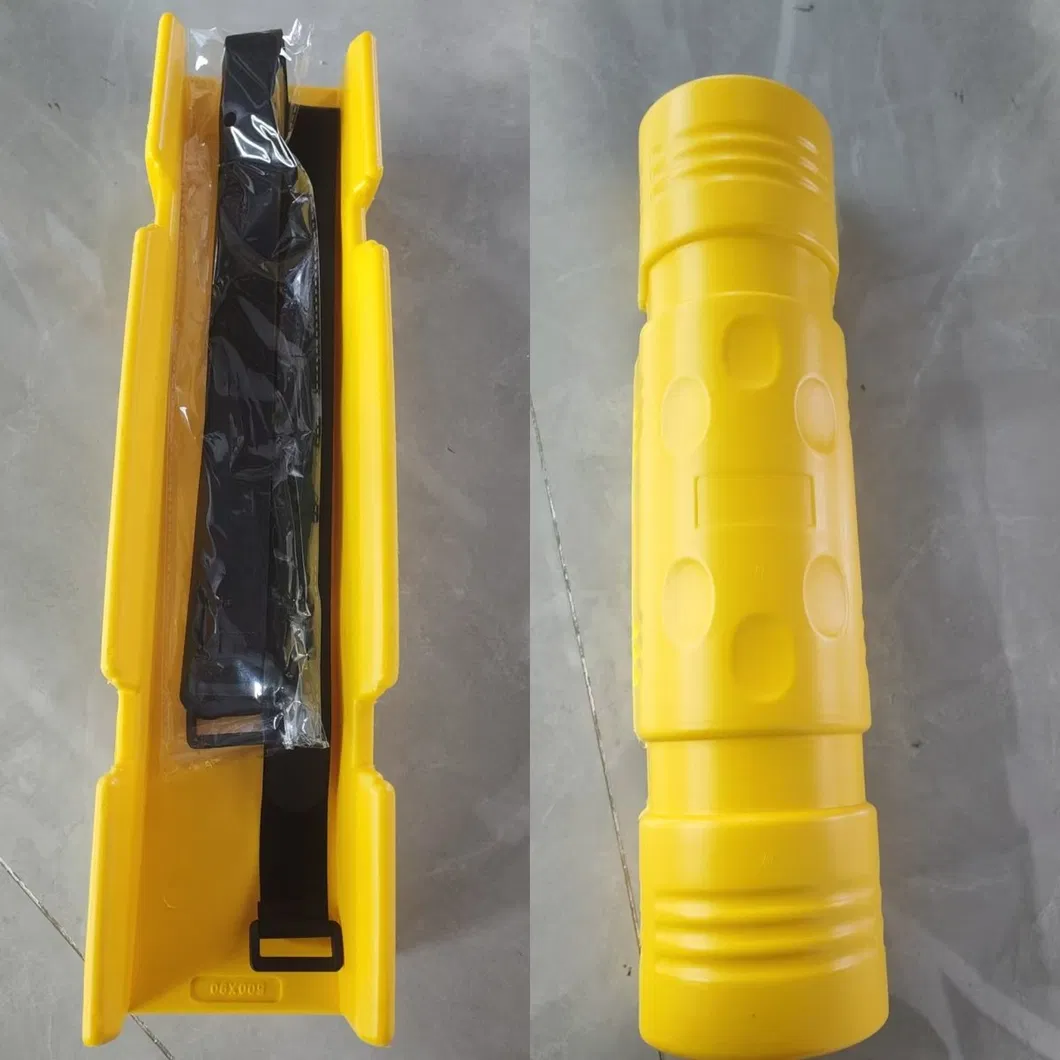

New material 500mmH Protector

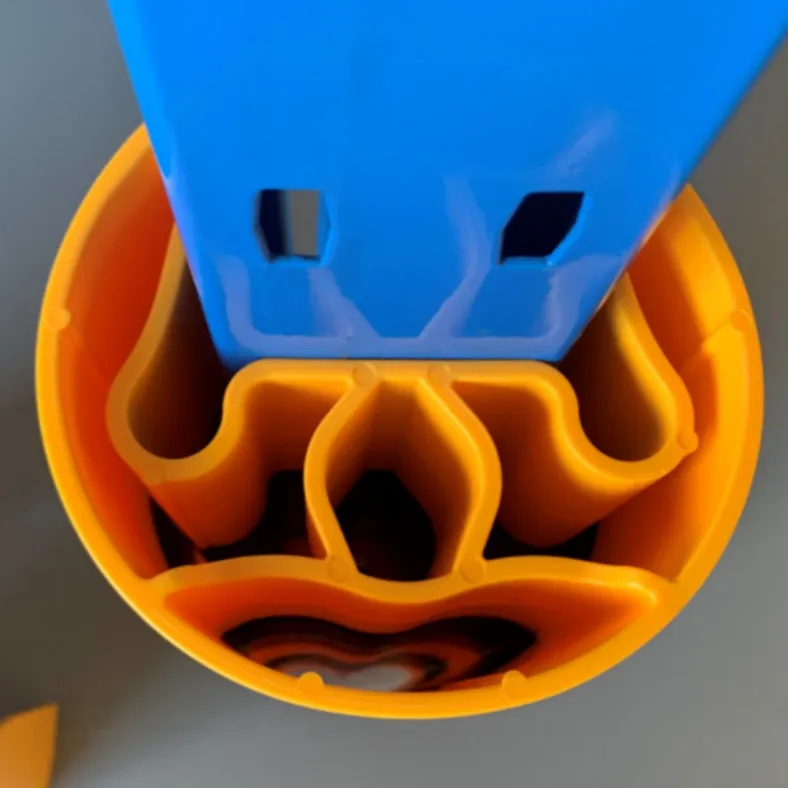

Regular 100mmH Protector

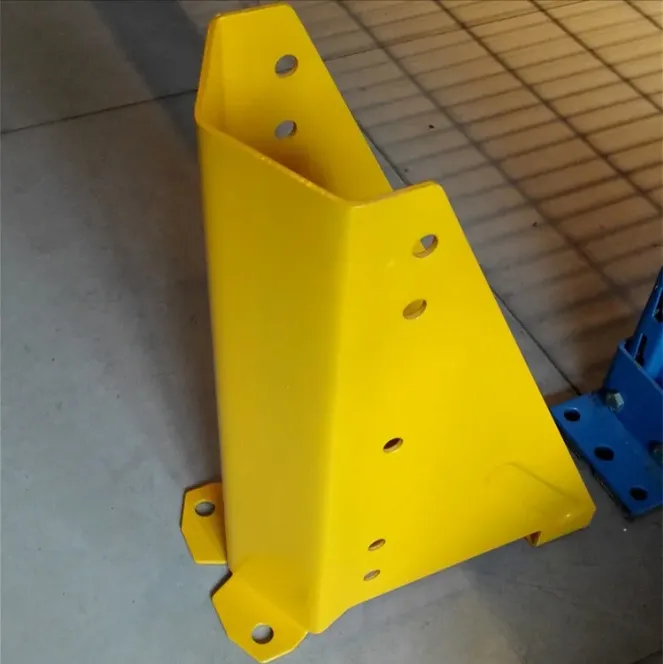

Metal Upright Guard

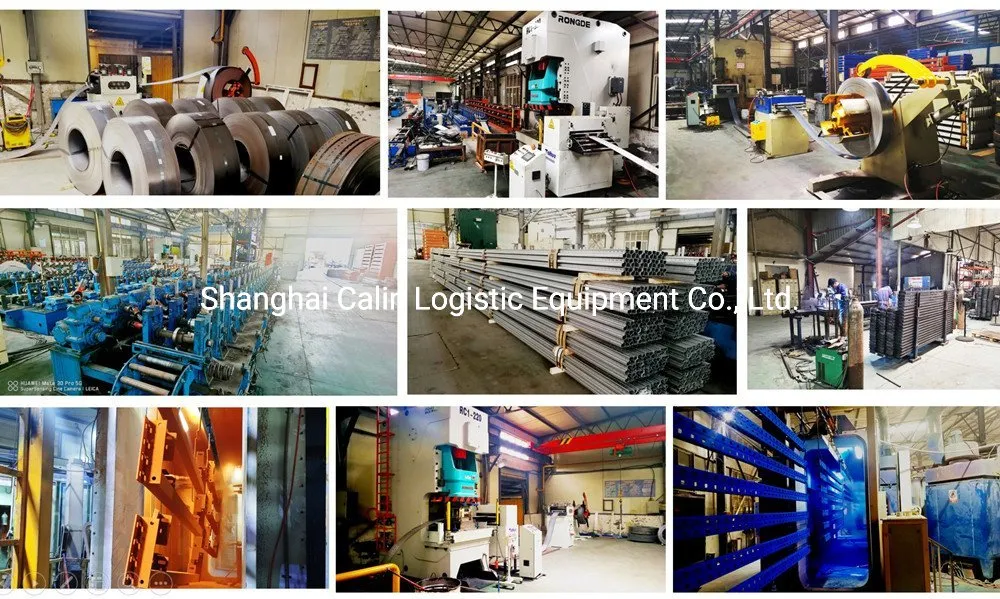

• Scale: 18,000m² workshop area; over 80 employees
• Annual Capacity: Mass-volume production (supports large bulk orders with cost-effective pricing)
• Core Equipment: High-precision roll-forming production lines, automated welding machines, laser cutting equipment, sheet metal processing tools, and 2 fully automatic electrostatic powder coating lines.

1. Professional R&D & Design: 20+ years of industry experience; expert engineers use the latest AutoCAD software for 3D layout design and static calculations.
2. High-Quality Manufacturing: Strict quality control system (IQC→IPQC →FQC) to ensure component precision and structural stability.
3. One-Stop Service: Covers pre-sales consultation, customized solution design, production, packaging, shipping, on-site installation guidance, and after-sales maintenance.
4. Certification Support: Provides material inspection reports, load-bearing test reports, and compliance certificates (FEM/SEMA) as required.

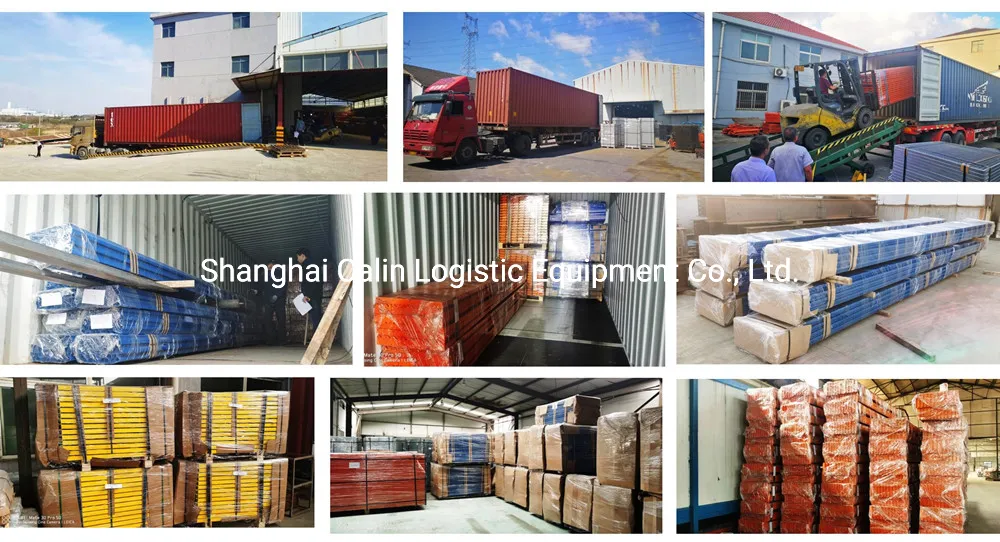

• Standard export package: Long profiles (beams, uprights) are bundled on plywood/steel pallets, wrapped in durable plastic film (dust/moisture-proof); air bags are filled between packages for shock absorption; edge protectors are applied to thin materials; small accessories and fasteners are packed in cartons and fixed on pallets.
• Custom packaging: Available for special transport needs (e.g., extra moisture protection for humid regions).

• Transport mode: Bulk orders mainly use sea freight (space-optimized by weight balancing and anti-shift bracing); small orders support air freight/express (DHL, FedEx, UPS).
• Delivery Lead Time: Standard products: 3 weeks after receipt of 30% deposit; customized products: 4-5 weeks.
• Documentation: Provides complete commercial invoices, customs declarations, packing lists, and certificates for smooth cross-border clearance.
• Tracking: Real-time logistics tracking service to ensure product integrity until delivery.

To provide you with an accurate and customized quotation, please share the following details (if no complete bill of quantities is available):

• Pallet specifications: L*W*H dimensions, pallet entry side, and overall height of goods with pallets.
• Loading weight per pallet (for structural design optimization).
• Warehouse layout CAD drawings (including clear height of the warehouse).
• Forklift information: Model, working aisle width, and maximum reaching height.
• Internal logistics flow requirements (e.g., storage density, picking frequency, FIFO needs).

CE Certificate

ISO 9001

ISO 14001

Trademark Certificate

Patent Certificate 1

Patent Certificate 2

Software Copyrights 1

Software Copyrights 2
