| Operating Steps | Operating Process |
|---|---|
| GERBER check up | Open GERBER comparison inspection software, enter the stencil GERBER.CAD file, and the items to be checked. The stencil GERBER file is automatically checked and compared by the software to check the differences of the GERBER file, such as position, multi-hole, small hole size, area size, etc., and give the inspection result prompt to confirm the correctness of the stencil GERBER. |
| Offline programming | Open the programming software, input the stencil GERBER to analyze the GERBER hole information and automatically follow the GERBER hole Information is grouped → Detection parameters are automatically set according to the opening group → Positioning MARK is specified → The program is generated and saved. |

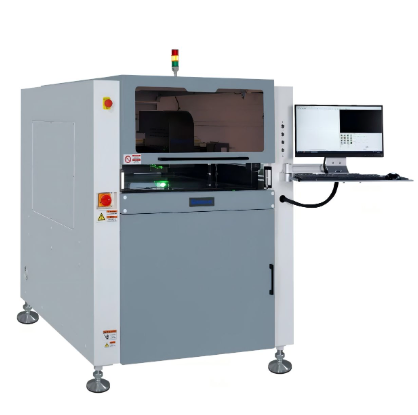

| The stencil is placed in the code scanner | According to the GERBER direction, put the stencil into the equipment detection platform and manually or scan the code to read the detection program. |
| Program debugging and confirmation | Confirm the size of the frame and MARK positioning → The device automatically generates the tension position and detection program. |

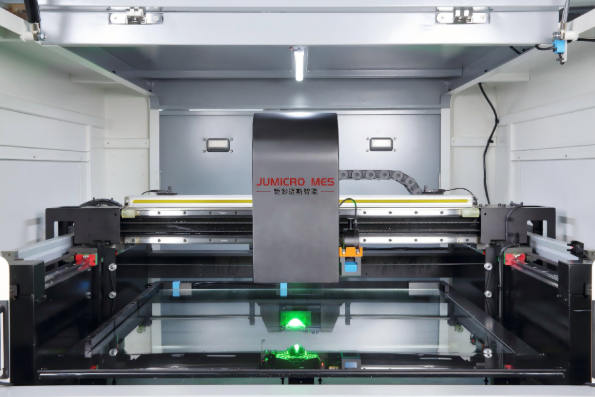

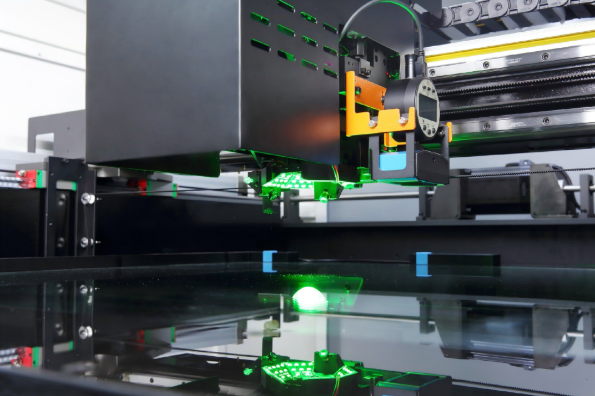

| Automatic equipment detection | The equipment automatically detects the position, size, quantity, accuracy, foreign matter, burr, damage, fine porous, shape, perimeter, true roundness, tension and thickness of the opening according to the program steps; All detection data and results such as mesh, tension, thickness and steel mesh accuracy are output. |
| The test results are confirmed | Confirm the stencil test results → automatically store the test data and remove the stencil. |
| SPC report generation | Through SPC software, standard SPC stencil test report files are automatically generated according to the data of test results. |
| Data is uploaded to the server | Open the customized MES docking and uploading software. After the detection is completed, the equipment automatically uploads the corresponding data content to the management system. |
A leading provider of SMT intelligent equipment and industrial software solutions, holding 26 patent certificates and 23 software copyright certifications. Committed to developing software systems such as MES (Manufacturing Execution System), WMS (Warehouse Management System), PLM (Product Lifecycle Management), and ERP (Enterprise Resource Planning), while also focusing on the production and sales of smart manufacturing hardware products. These include smart sensor shelves, smart sensor mobile carts, intelligent X-ray component counters, smart stencil cabinets, smart moisture-proof cabinets, and smart tool cabinets.

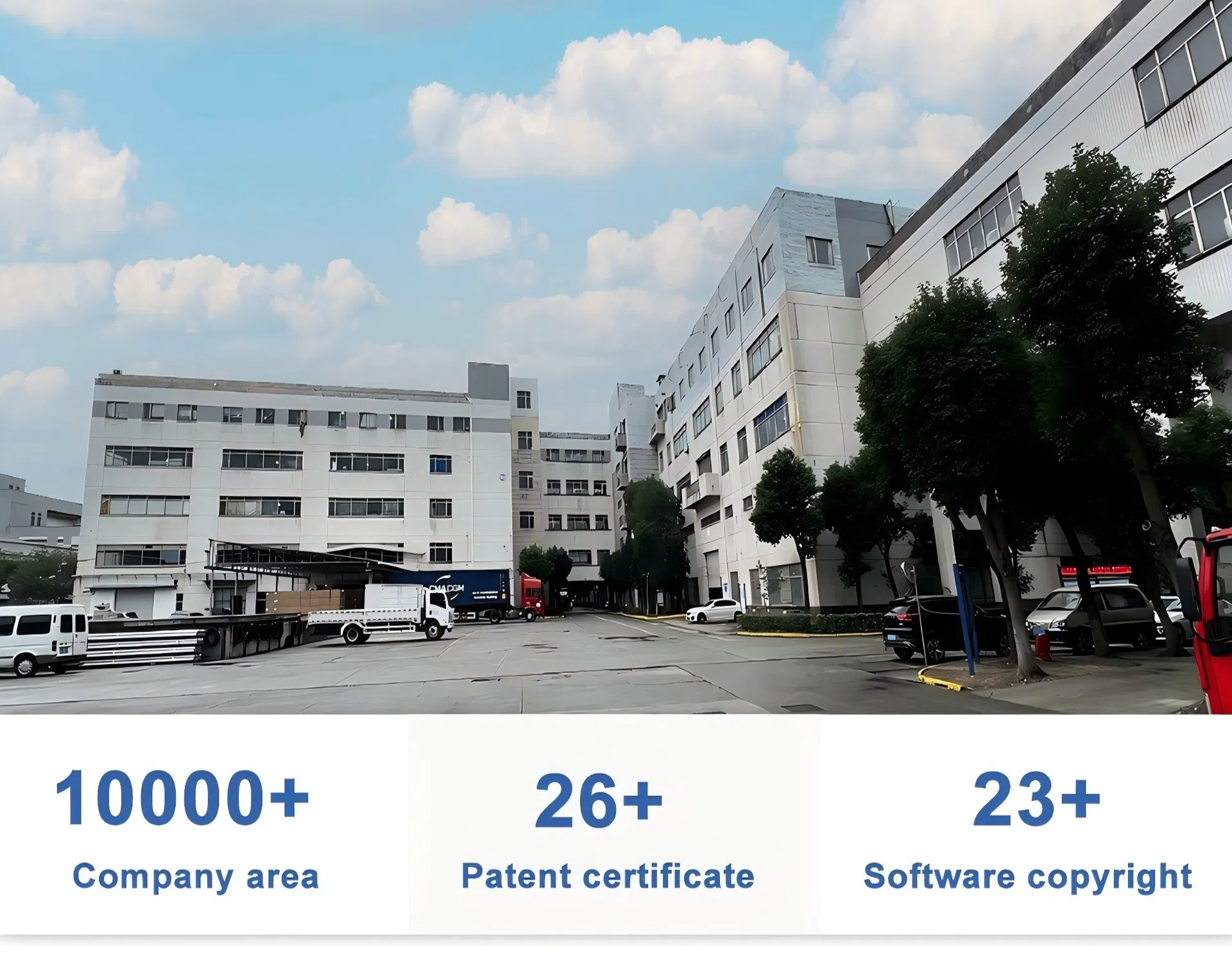

Operating a 5,000-square-meter standardized industrial plant and over 1,000 square meters of office space. With established branch offices, we provide high-quality and efficient integrated hardware and software solutions to clients worldwide. Centered on "precision manufacturing," we offer high-precision, high-stability end-to-end SMT solutions for global electronics manufacturers, helping clients increase production efficiency by over 30% while continuously advancing the industry toward intelligent manufacturing.
