1. Efficiency: The three-stage top scanning system significantly improves the barcode recognition rate of parcels usually reaching over 99% through multi-angle and phased scanning; the dual swing wheels can complete sorting actions synchronously, increasing the overall processing efficiency by 3-5 times compared to manual operations, with a capacity of 1,500-3,000 parcels per hour.
2. Accuracy: The DWS system automatically collects and verifies weight, volume, and barcode information, avoiding errors from manual recording; the dual swing wheels, controlled by servo motors, achieve a sorting positioning accuracy of ±5mm, reducing the mis-sorting rate to below 0.1%.
3. Flexibility and Compatibility: The equipment is compatible with parcels of different sizes e.g., 10cm-120cm in length and weights typically 0.1kg-50kg without frequent parameter adjustments; it also supports integration with logistics management systems such as WMS and TMS, enabling real-time data synchronization to adapt to subsequent route planning and order management.

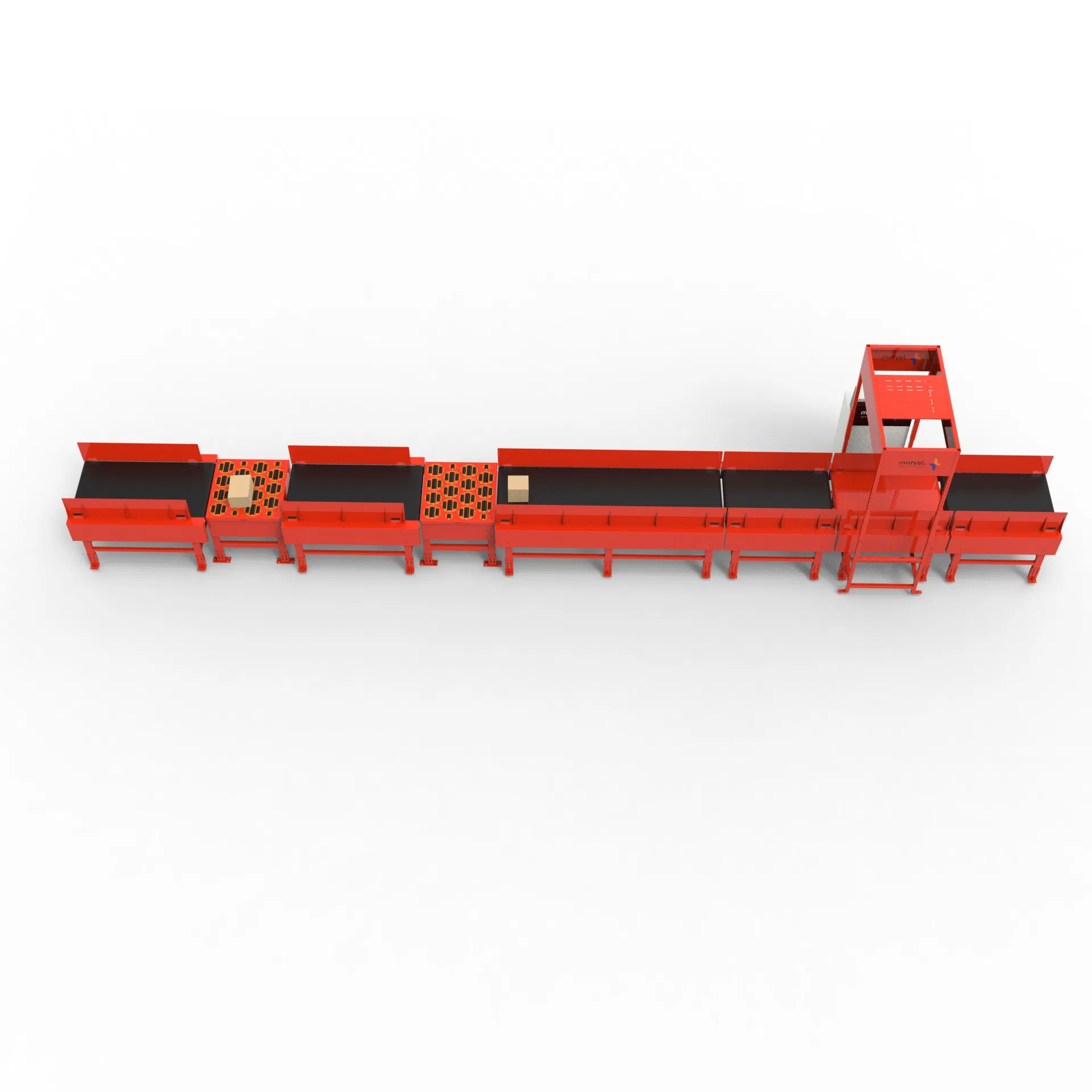

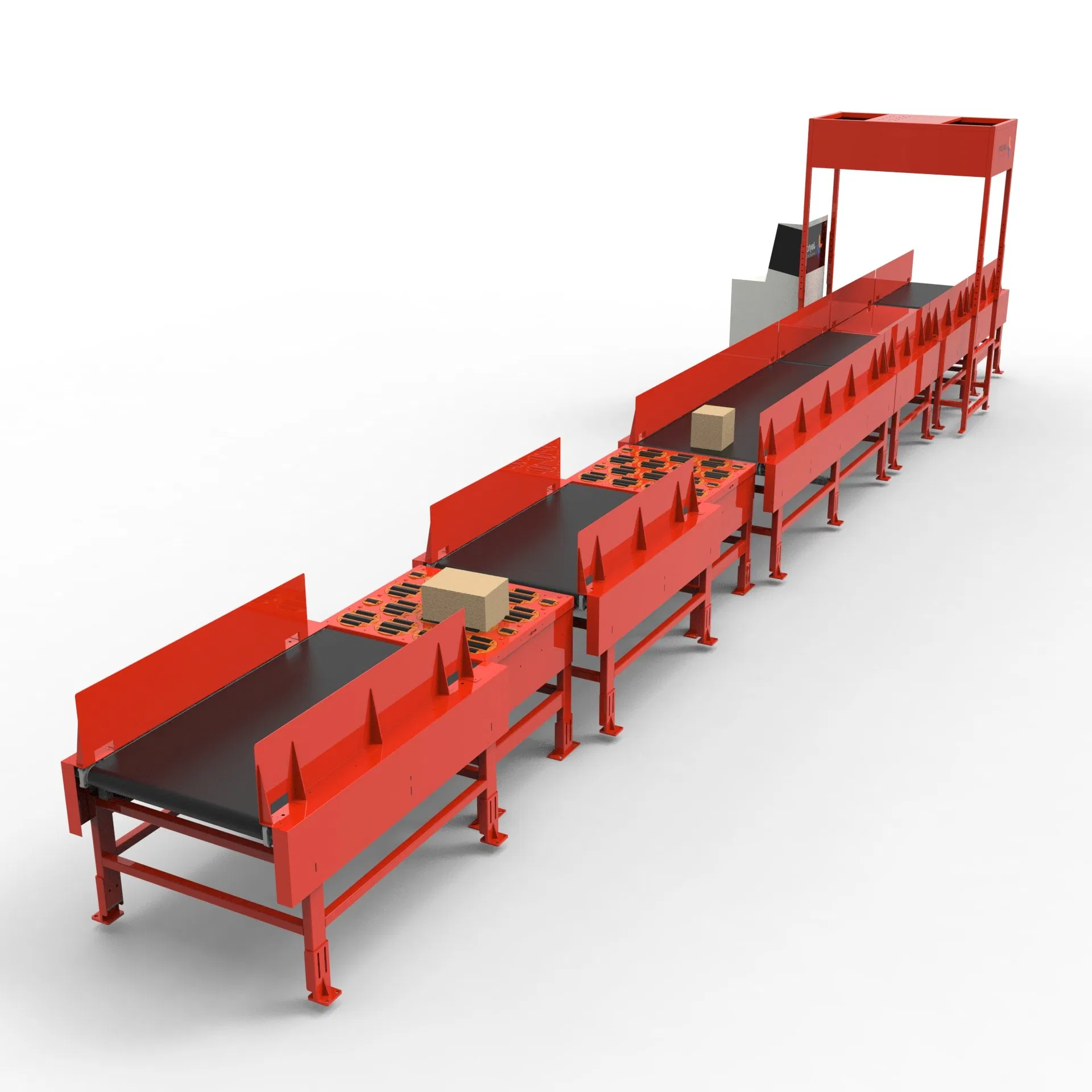

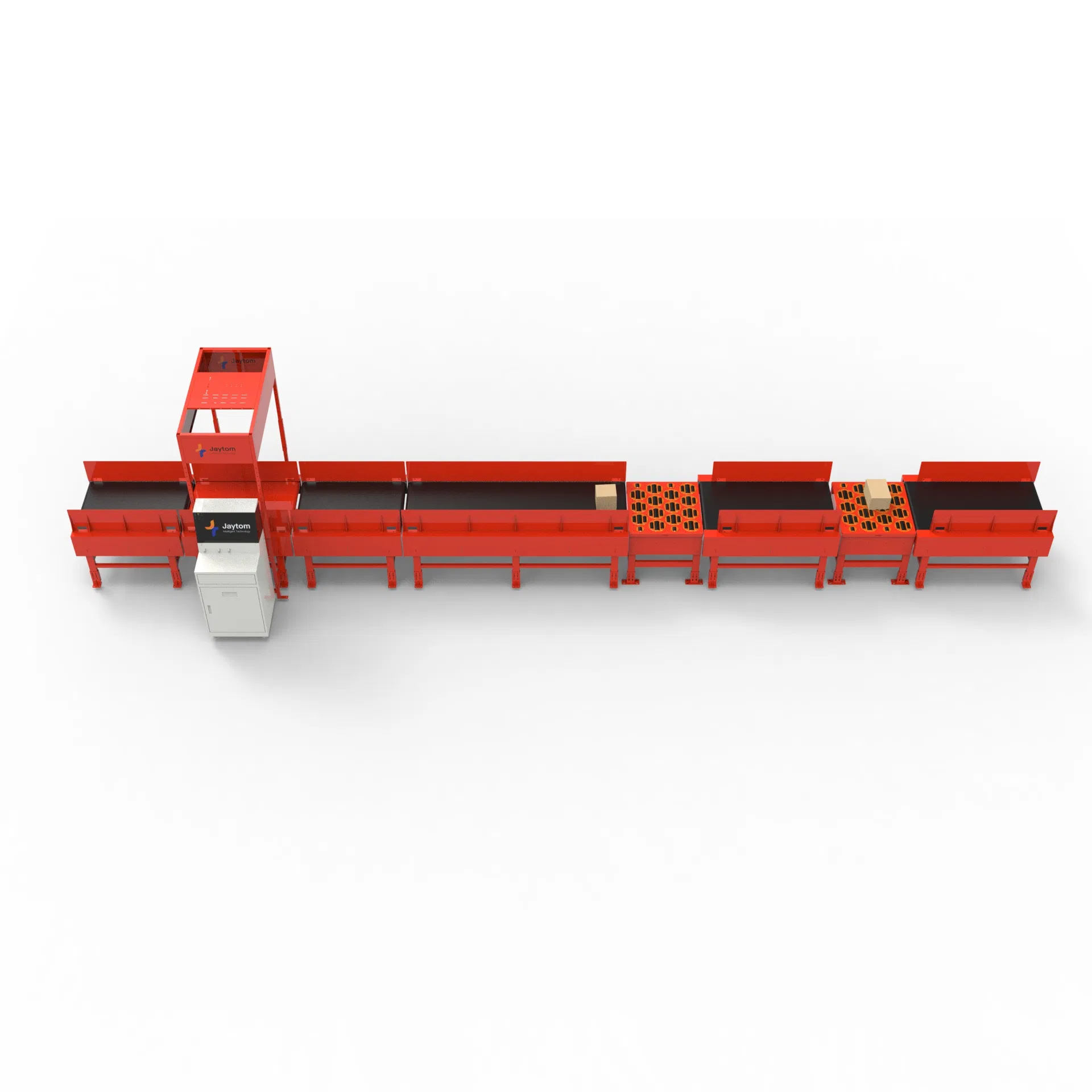

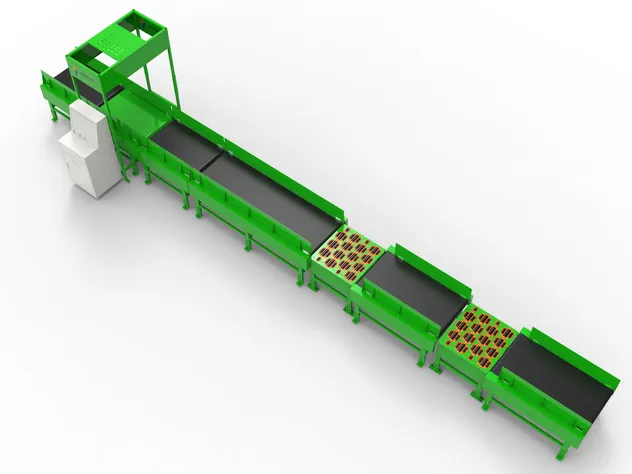

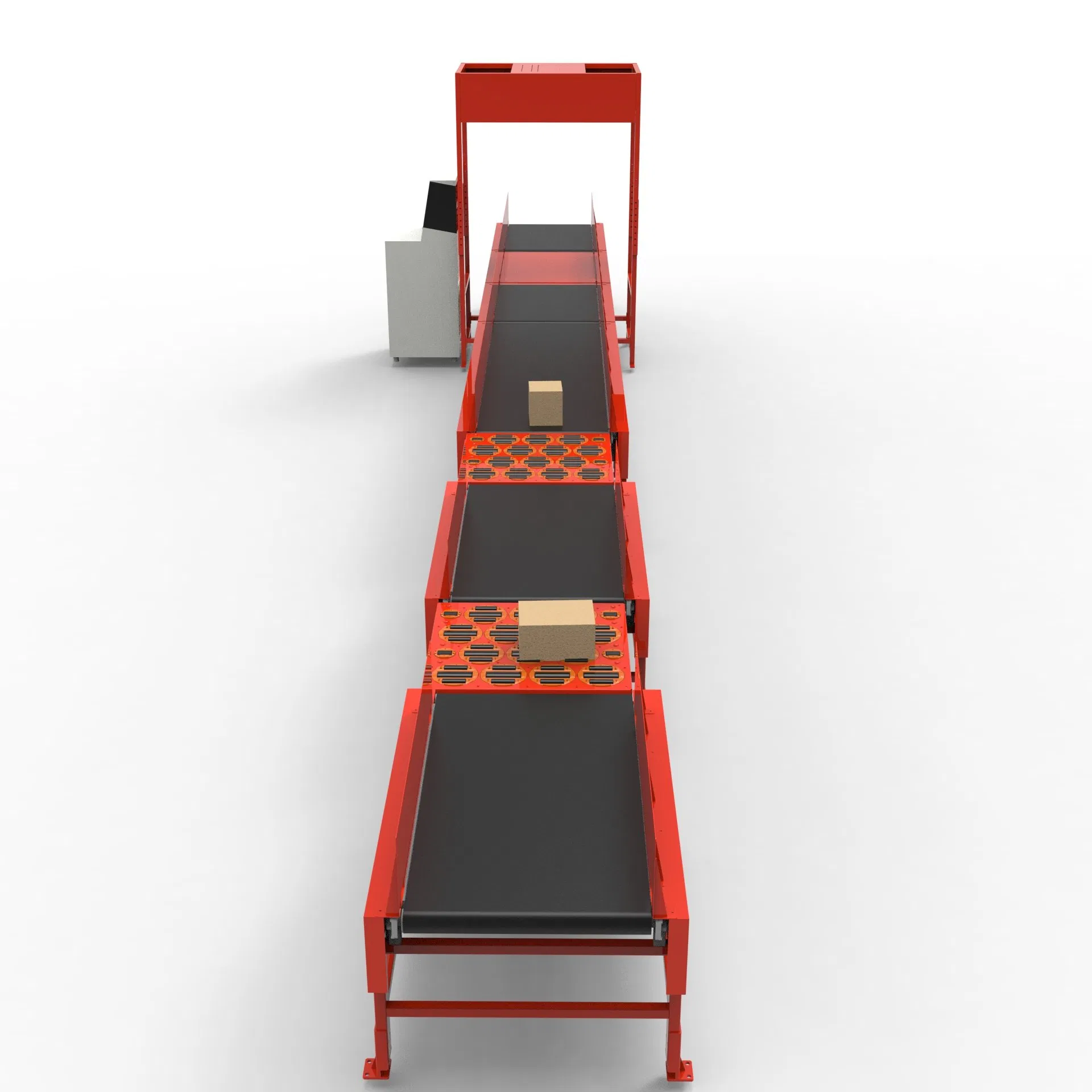

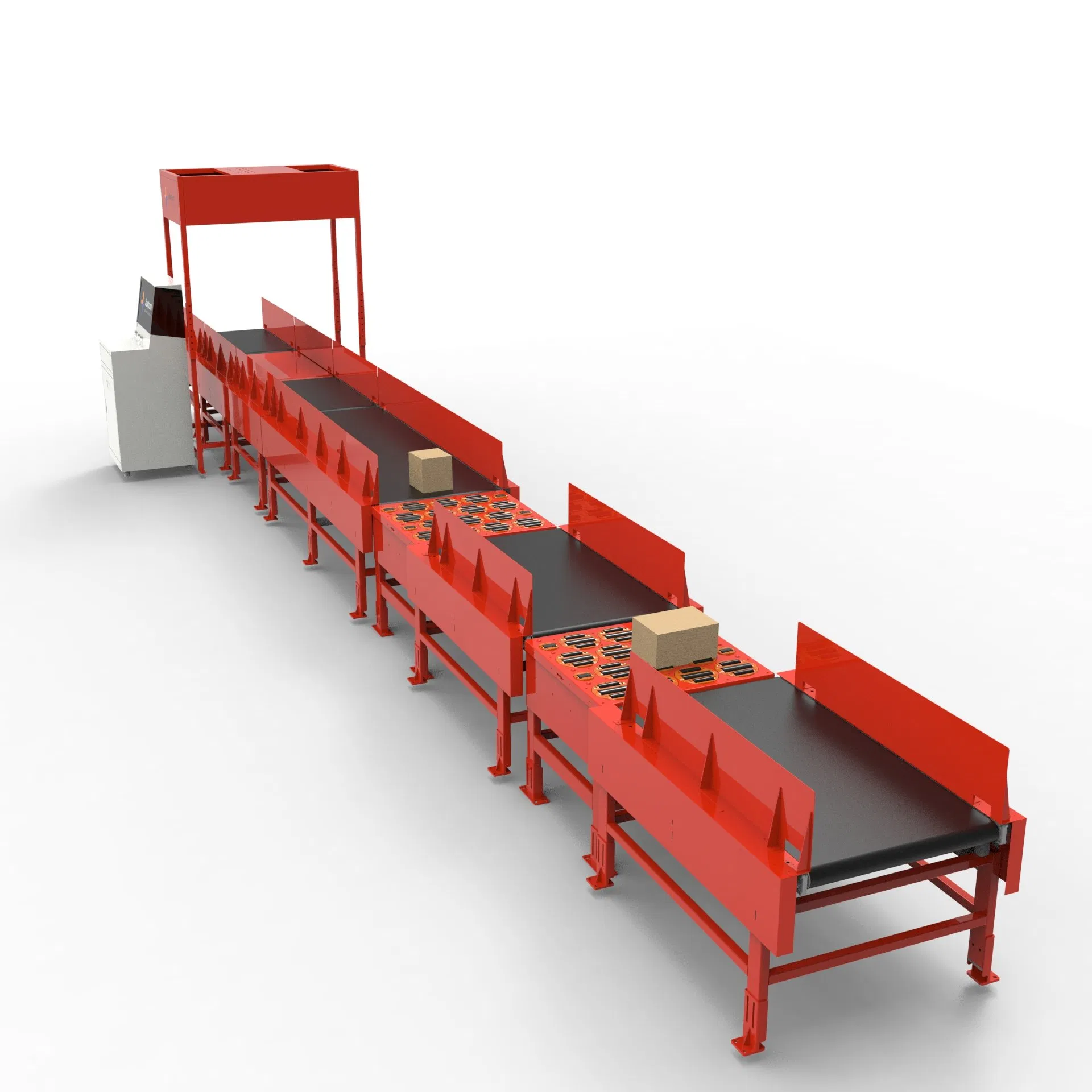

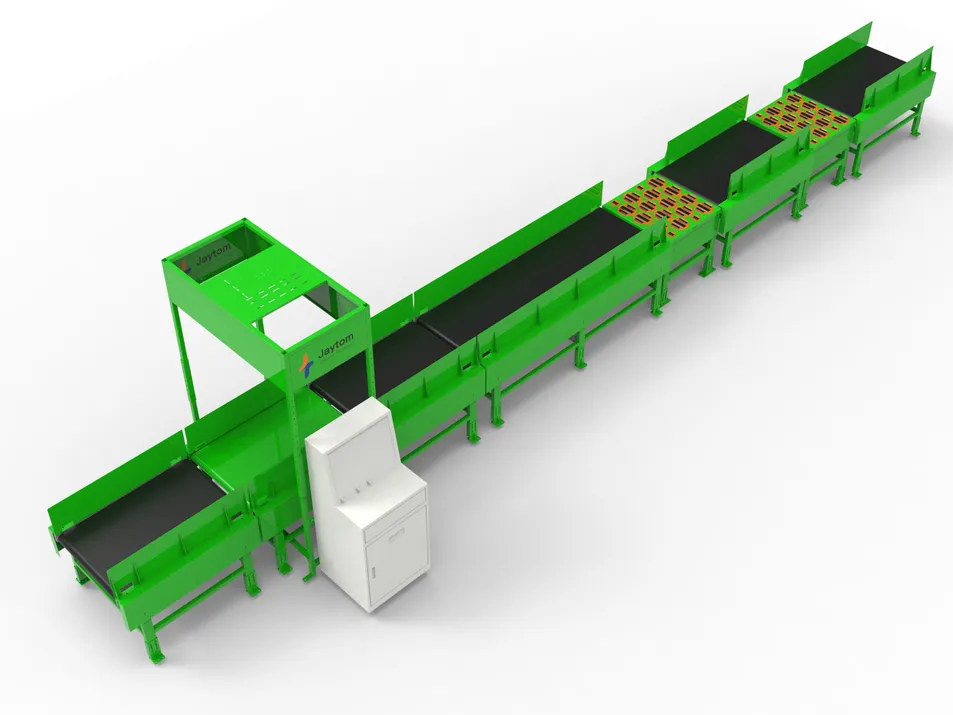

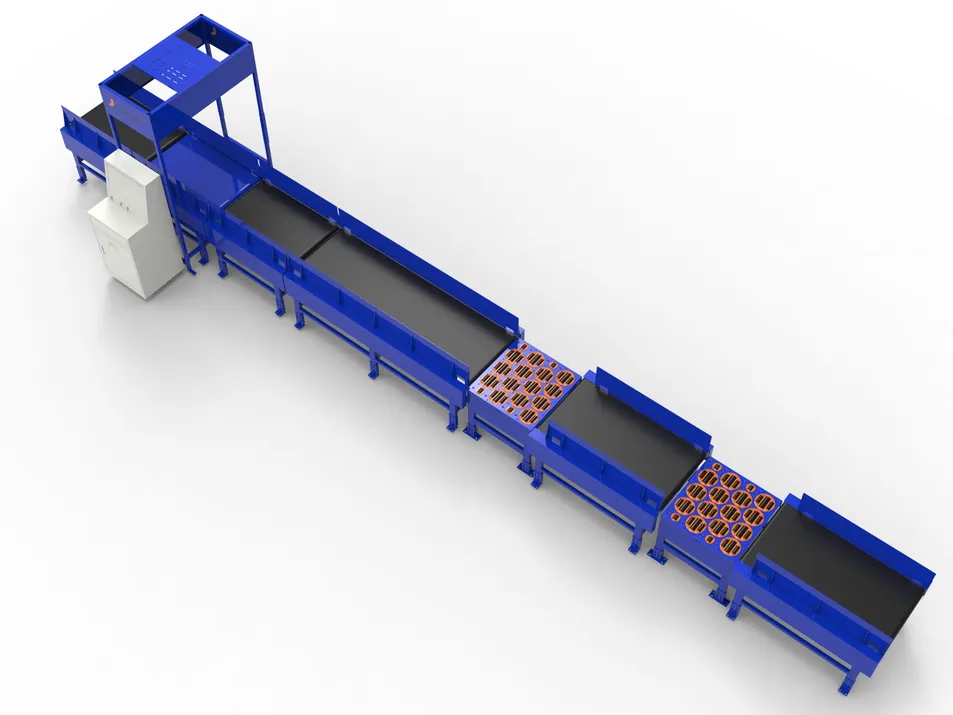

1. Structural Design: It adopts a three-section design of "package pulling section + weighing and scanning section + buffer middle section" combined with dual swing wheels. It integrates single-scale accurate weighing, top scanning, electric roller automatic conveying, and dual swing wheel parallel automatic sorting, which is suitable for scenarios such as e-commerce sorting lines, logistics transfer warehouses, and retail warehousing assembly lines.
2. Operational Flow: It smoothly connects the feeding, inspection, and circulation links to avoid goods jamming and accumulation; the electric rollers support speed adjustment to match different operation rhythms; it synchronously completes the integrated data collection of "weighing + volume detection + top barcode recognition + automatic sorting", and connects to the system in real time. It replaces manual segmented operations, improving efficiency by more than 3 times, and accurately meets the standardized data collection needs of small and medium-sized items.
| Solution Introduction | Component Name | DWS Parcel Pulling Section | Corresponding Function | Adjust parcel posture to ensure it enters the weighing section at a suitable angle |
| Component Name | DWS Single-scale Weighing Section | Corresponding Function | Automatically complete weight detection and record data | |
| Component Name | DWS Buffer Section | Corresponding Function | Information processing of scanned items | |
| Component Name | wheel sorter | Corresponding Function | Automatic Sorting | |
| Solution Working Parameters | Speed | 1.5~2m/s | ||
| Parcel Control Spacing | 1000mm | |||
| Efficiency | 6000 | |||
| Parcel Position | No Requirement | |||
| Field of View | No Blind Area | |||
| Applicability | Suitable Parcel Size | W100×L100×H50-W800×L1500×H700 | Unsuitable Types | High-reflective and highly transparent parcels may have inaccurate volume measurement |
| Suitable Type | Various parcels with flat surface waybills | Unsuitable Types | parcels with severely damaged or wrinkled surfaces, severely reflective parcels, parcels with excessively sticky magnets, and round packages such as cylindrical and spherical parcels | |
| Weighing Performance | Weighed Object Weight (kg) | ≤30 | ||
| Measurement Accuracy (g) | ±20 | |||
| Precision Level | IIIClass | |||
| Identification Performance | Code Reading Performance | Barcode Identification | Minimum Barcode Width (mm) | 0.25 |
| Barcode Type | 1D CodeCode128/code39/EAN 2D Code QR2/DM |
|||
| Barcode Reading Rate | ≥99% | |||
| Image Recording | Image Resolution | 4000×3000 | ||
| Optional Volume Performance | Optional Brand | Hikvision/Huarui | ||
| Accuracy (mm) | ±10 | |||
Founded in 2020, the company is a system integrator that deeply explores the logistics industry. It takes embedded control as its core and focuses on providing overall logistics solutions supported by a variety of key technologies, including barcode scanning, 3D visual measurement technology, weighing measurement technology and Android embedded technology.
Currently, the company has 20 employees in service. Its R&D team consists of engineering R&D engineers who graduated from well-known universities, and have many years of experience in image processing, machine learning and automation control.
The company has a registered and fully paid-up capital of RMB 5 million, holds more than a dozen product patents, has passed the ISO9001 system certification, and has been awarded the honor of "Leading Talent Enterprise".

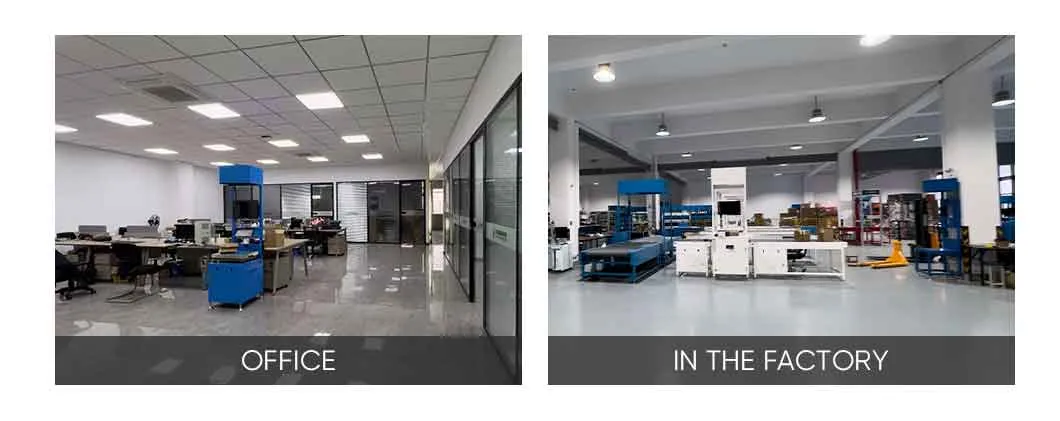

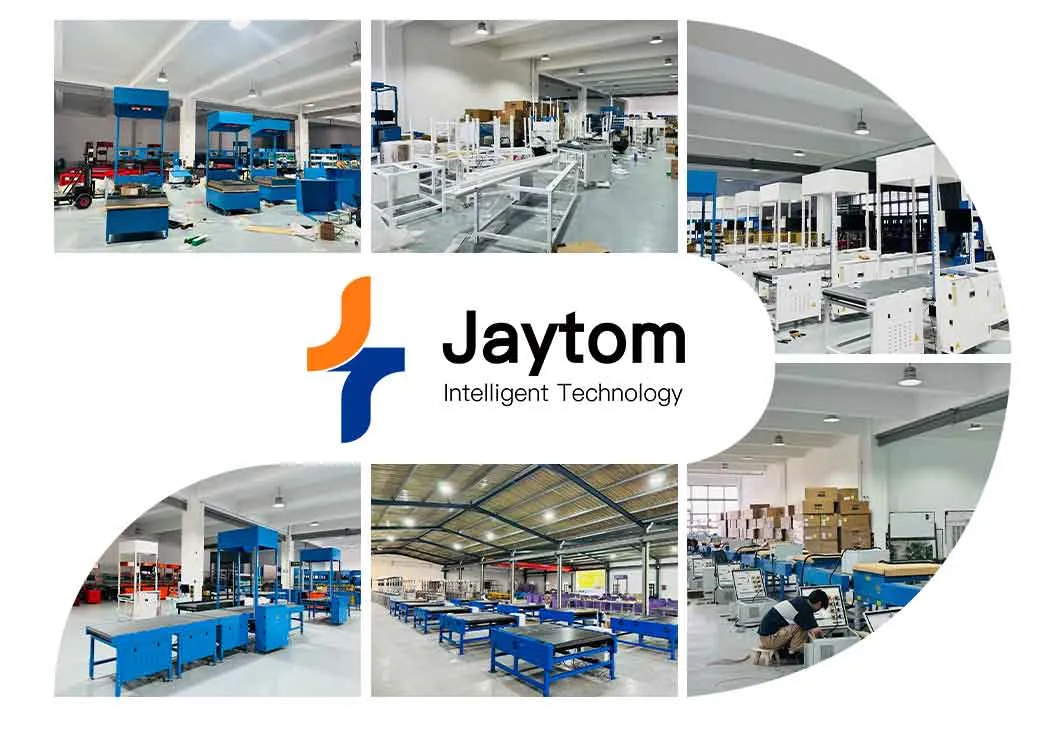

At present, the facility covers an area of 1,800 square meters, including 600 square meters of office space and 1,200 square meters of prototype assembly and sample display area.
