Telescopic Cantilever Racking

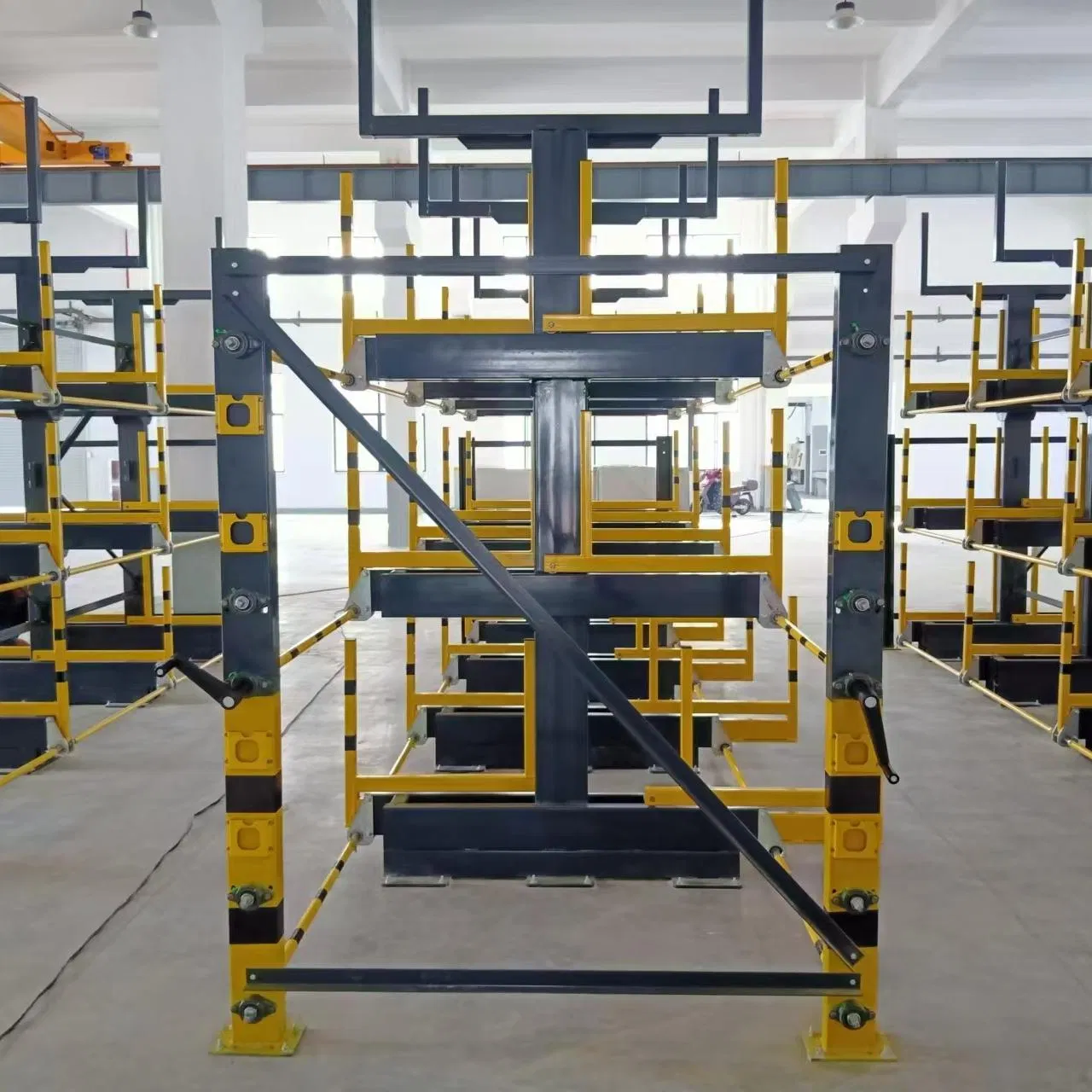

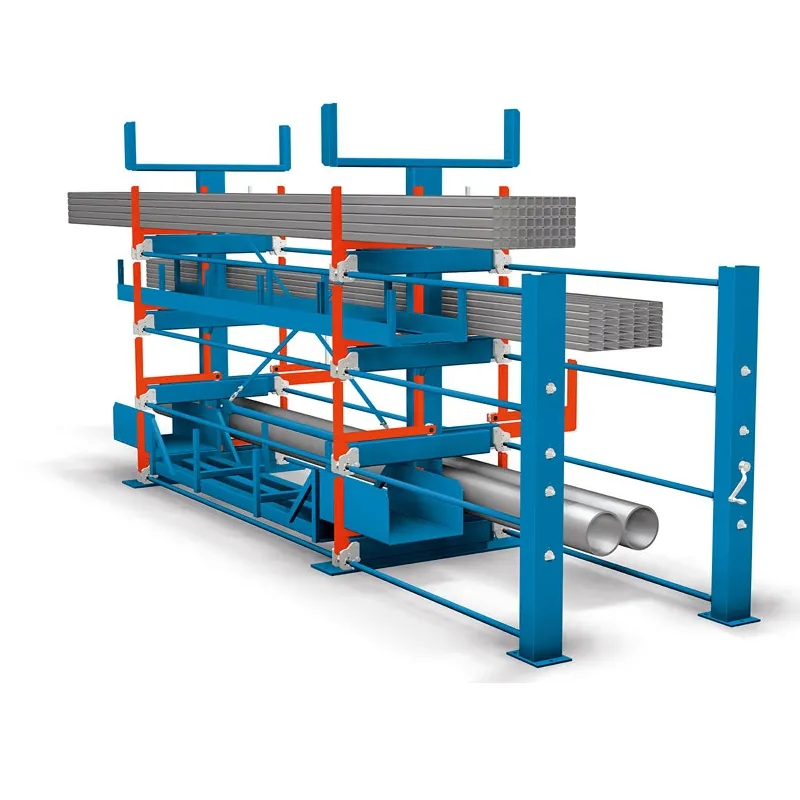

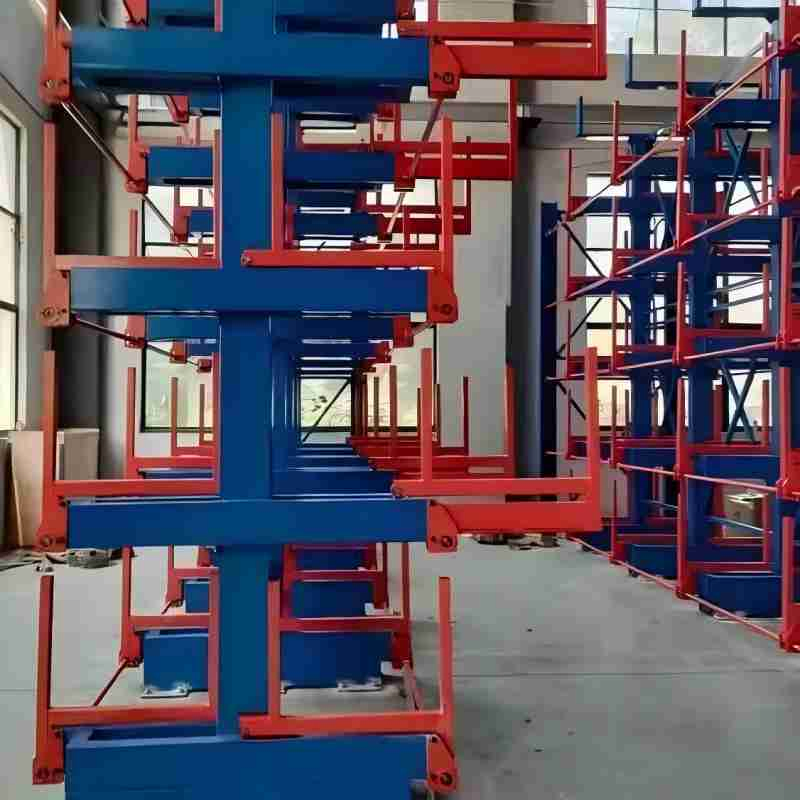

Telescopic cantilever rack is based on ordinary cantilever racking, for the cantilever is endowed with free telescopic function, in access to irregular or longer items (furniture, tubing lumber etc.), turn the winch, cantilever can be freely retracted, convenient for bridge crane operating.

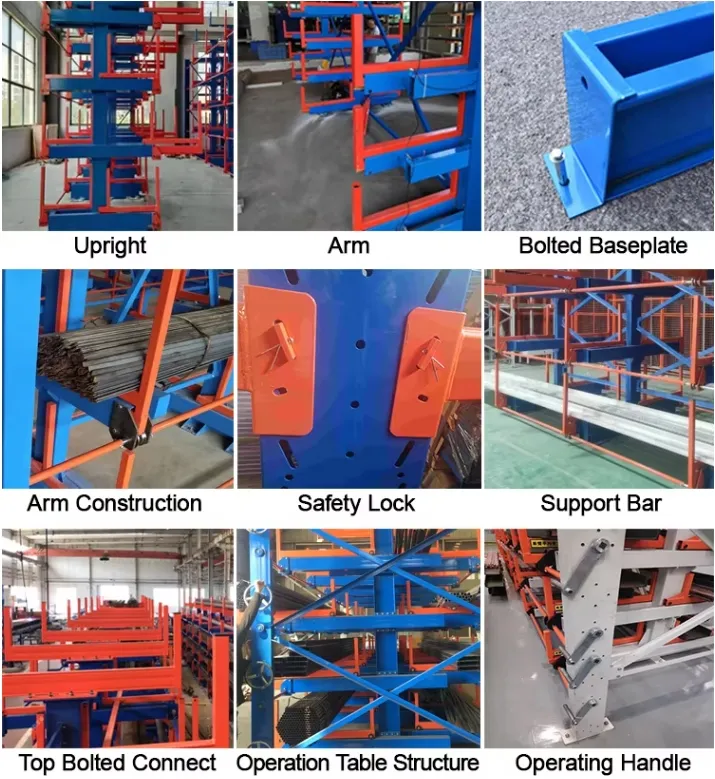

Uprights: Uprights are an essential part of a cantilever storage rack system. They are installed with the bases, which makes the entire system robust. Uprights are divided into single-sided and double-sided types, made from high-quality Q235 cold-rolled steel as raw material, with a hole spacing of 100mm. The cantilever arms can be adjusted vertically based on hole spacing units.
Beams: Also called arms in cantilever steel rack, act as levels for storing goods. They come in horizontal and tilted (2°~4°) types. Light-duty rack cantilever arms are embedded into the uprights, while heavy-duty rack cantilever arms require bolt connections.
Base: Base Construction Using High Load-Bearing H-Beam for Enhanced Cantilever Rack Stability in Both Vertical and Horizontal Directions.
Cross Braces: Cross braces horizontally connect the uprights, and eight forks crisscross connect the uprights, enhancing the torsion and stability of the cantilever rack.
Applications
Storage of metal profiles in their standard length of 6 or 12 meters is a relatively complex task.

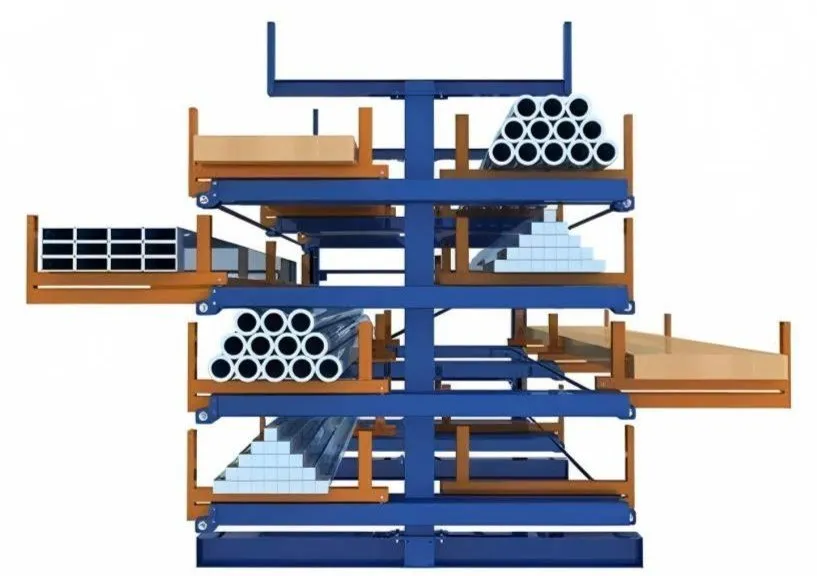

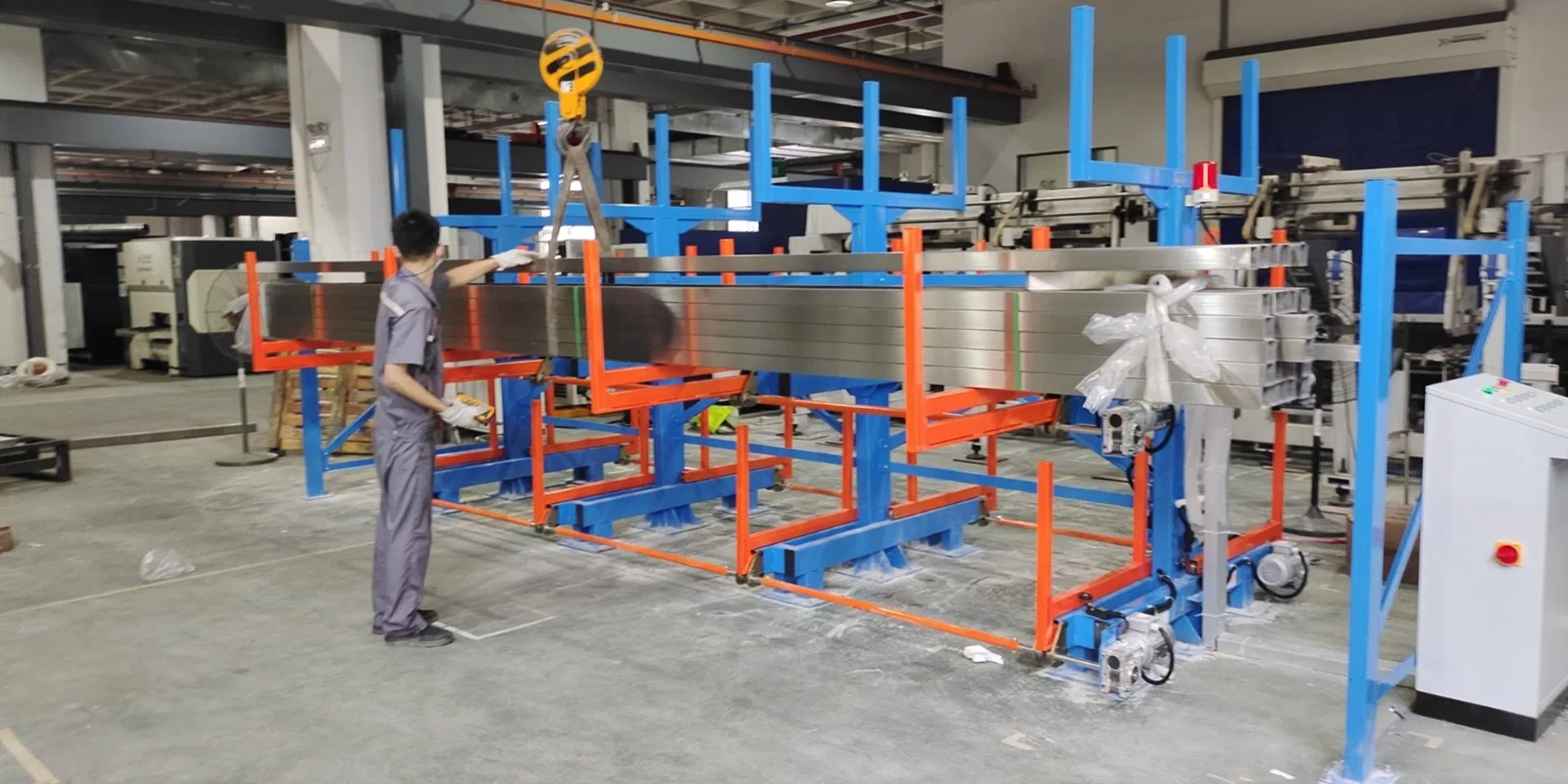

Telescopic cantilever rack with extendable arms allows safe manipulation of long profiles by crane.
The same applies to effective management of residual materials and significant leftovers.
Through accessible and well-arranged debris storage, the Telescopic cantilever rack helps to increase the efficiency of the management of input materials and significantly affects the tidiness in the working area for processing profiles.
Technical Specifications
(Custom configurations available upon request.)
Name
Telescopic Cantilever Racking
Material Condition
GB-T Q235, Q345, 45# High Class Carbon Steel Product
Weight Capacity
600-1000kgs/arm
Upright Column Frame
Structural H Steel, Square Tubing
Base Length
1200mm-2200mm or Customized
Arm Length
500mm-1000mm or Customized
Length Deployed
500mm-1000mm or Customized
Layers
2-7 or Customized
Story Height
440-940mm or Customized
Active Height
250-800mm or Customized
Back-up Services
Installation Drawing
Design Services
Available
OEM
Available

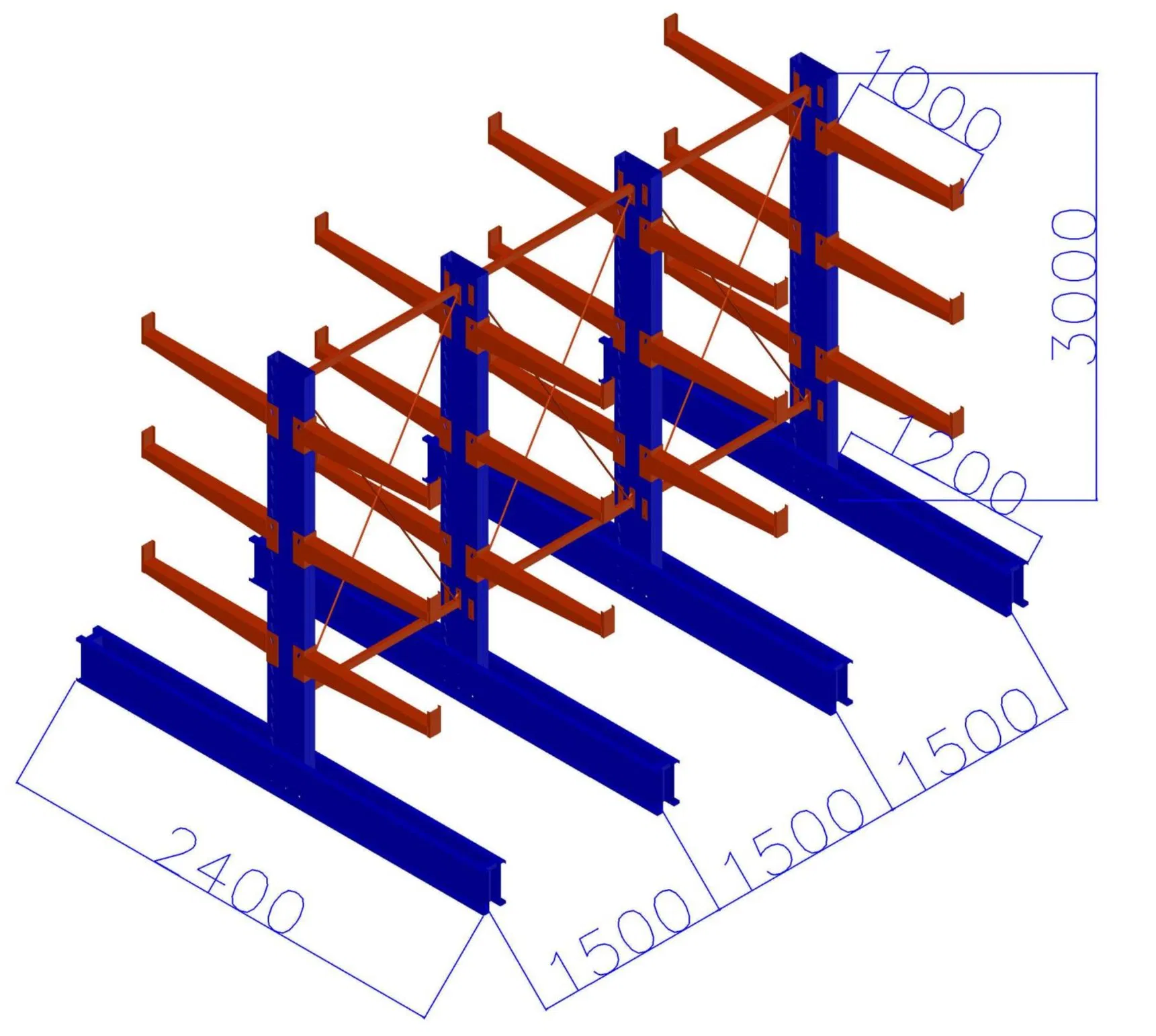

Drawings & Dimensions
Detailed CAD drawings and dimensional diagrams are available upon inquiry. Our engineering team can provide tailored designs to meet specific project requirements.
Product Video

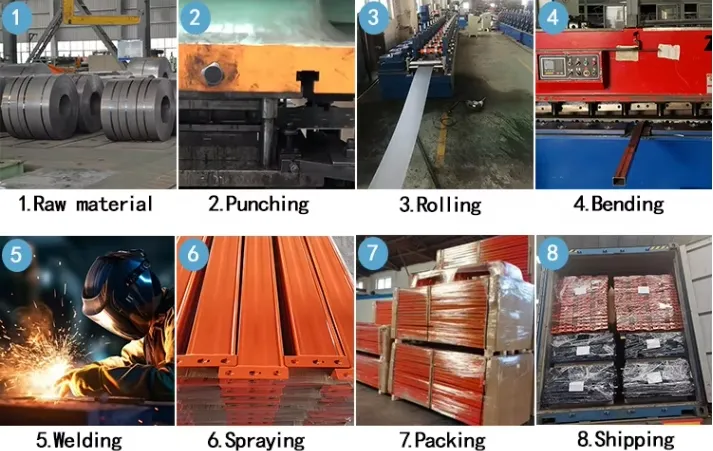

Production Process

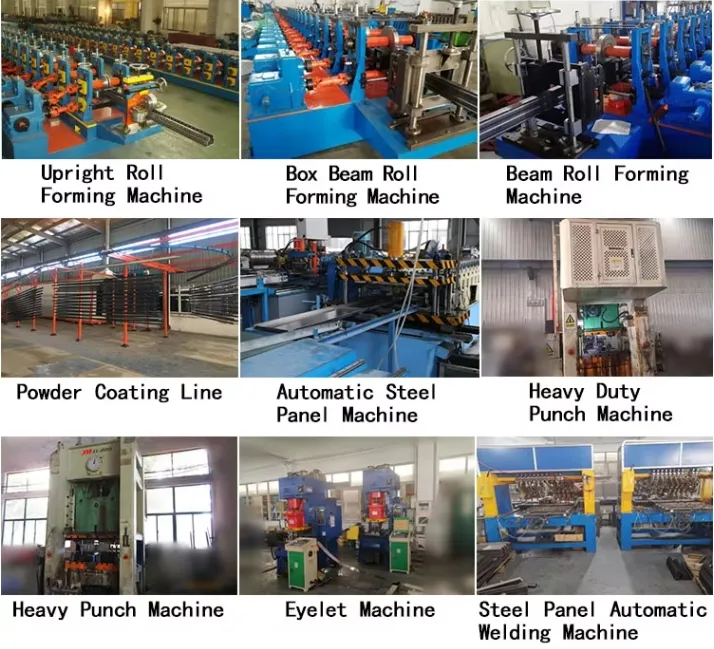

1. Advanced Production Equipment & Strict Quality Inspection

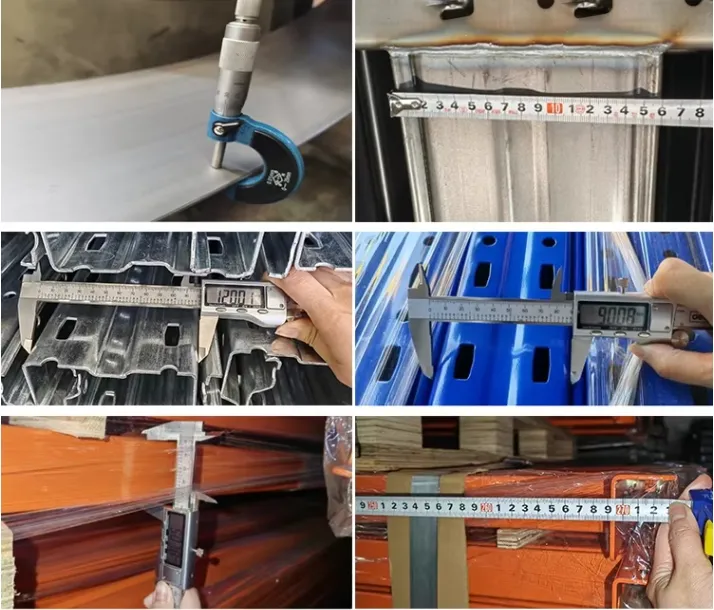

A variety of complete equipment ensures that the delivery time and quality are within control range. A professional quality inspection team checks the racking quality for every step, guaranteeing the quality of the racking during processing.

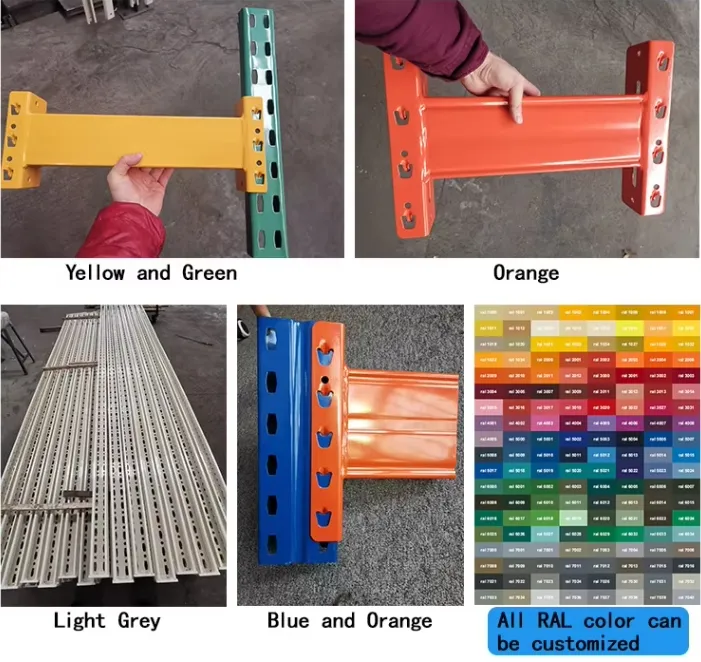

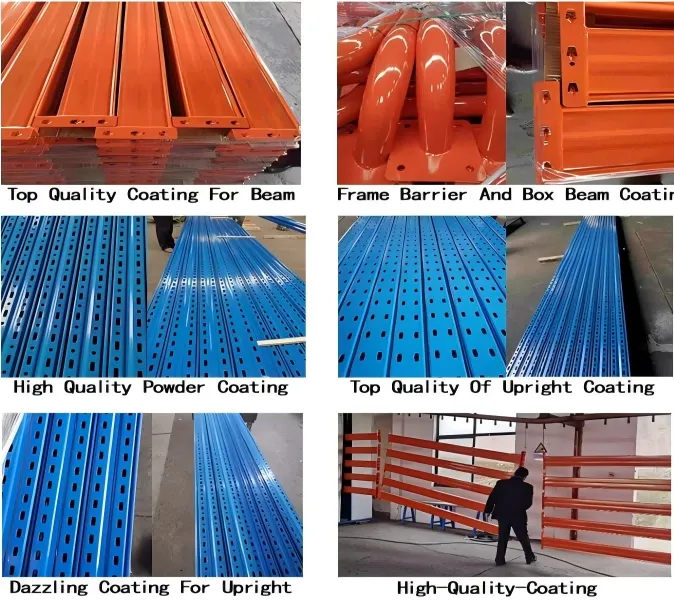

2. Customized Color & Good Quality Powder Coating
Oxidization is perfected by a two-stage powerful pickling technology, producing a layer of oxidation film on the steel surface, which makes the resin powder adsorb better. This process greatly increases the racking life.

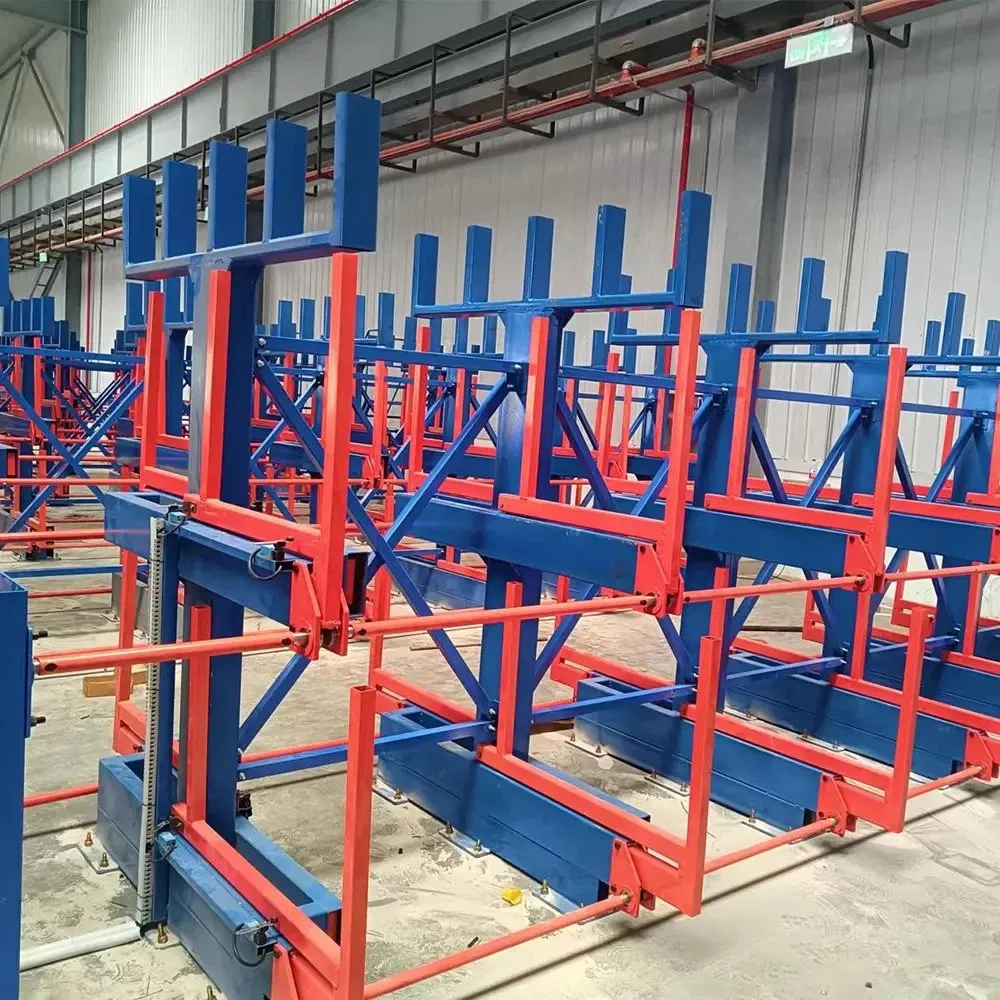

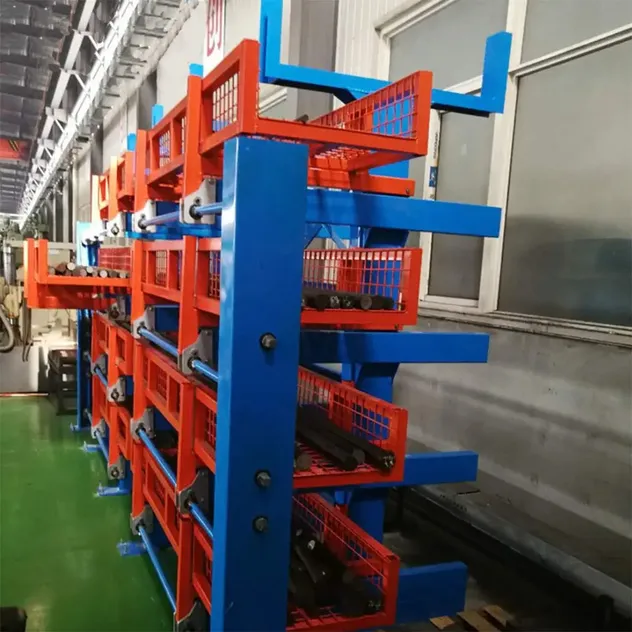

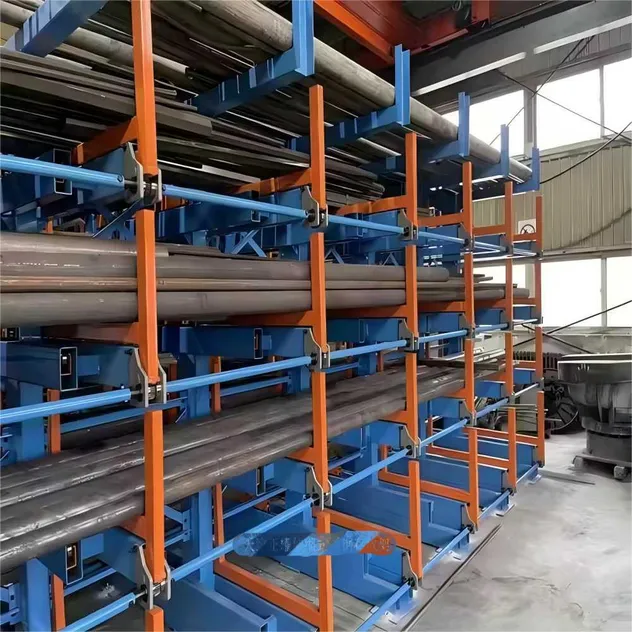

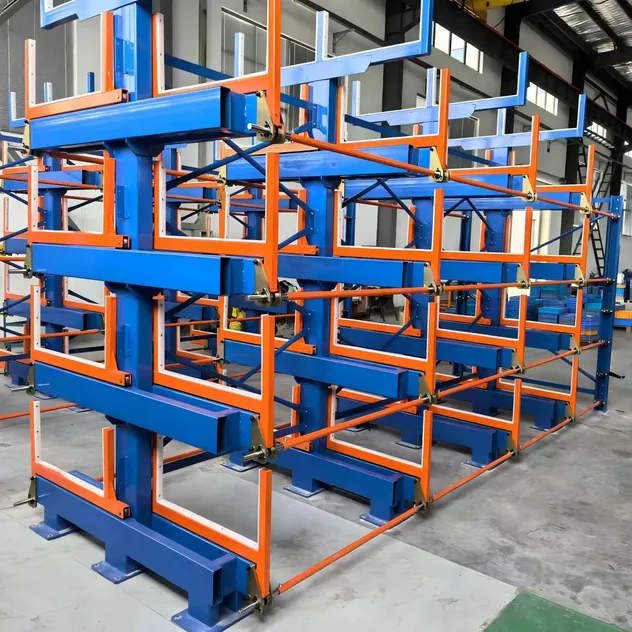

Real Case Show
Frequently Asked Questions
QAre you a manufacturer or a trading company?
We are an experienced manufacturer in the warehouse storage industry.
QWhat is the delivery time?
Generally, it is within 20 days against formal order and deposit. It also depends on other factors such as order quantity.
QWhat are the payment terms?
T/T 30% as deposit, and 70% before delivery. We will show you the photos of the products and packages before you pay the balance.
QWhat are the terms of delivery?
We support EXW, FOB, CIF, and other standard delivery terms.
QCan I order custom designed products or use OEM branding?
Yes, we provide both OEM and ODM services, allowing you to get custom designed products with your own brand requirements.
QWhat is the warranty period for your racking products?
We offer a 3-year warranty on our warehouse racking products.
