Outside Hot-dip Galvanized Heavy Duty & Medium Duty Cantilever Racks
Light Load Cantilever
Light load cantilever system is best for storing long items where ceiling height is less than 3.5m and total load under 3000kg. Recommended arm length within 1000mm with load on each arm less than 400kg.
Column
C200 x 60 hot dip pre-galvanised coil. Recommended maximum height 3500mm.
Base
Single-sided and Double-sided welded Base using hot dip pre-galvanised coil. Easy to assemble.
X-Brace Set
Bracing set consists of Horizontal and X-braces provides the necessary stability to the racks.
Finish (Column, Base and Bracing):
Pre-Galvanised (Pre-gal)
Powder Coated RAL 5015
Arm
There are 2 arm profiles:
C80x60
RHS100x50
Both weld with light duty bracket. End of arm can be bolted with an optional Stopper Plate if required.
Finish: Powder Coated RAL 2004
Safety Load Distribution

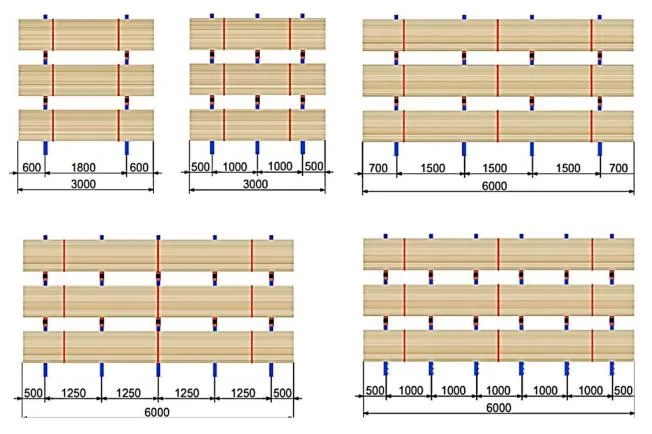

Uniformly distributed load on cantilever racks and arms is of paramount important to operational safety. The diagram below illustrates the concept of safety load distribution. Take note of the overhanging dimensions in each example.
Impact Safety Design
The rounded nose design at the tip of the arm together with the single-round-pin bracket, provide the arm with a free uplift motion for accidental uplift by forklift. This safety feature greatly reduces possible damages to the cantilever structure in daily operation. Only medium and heavy load cantilever models provide this safety feature.
Pallet Support Bar

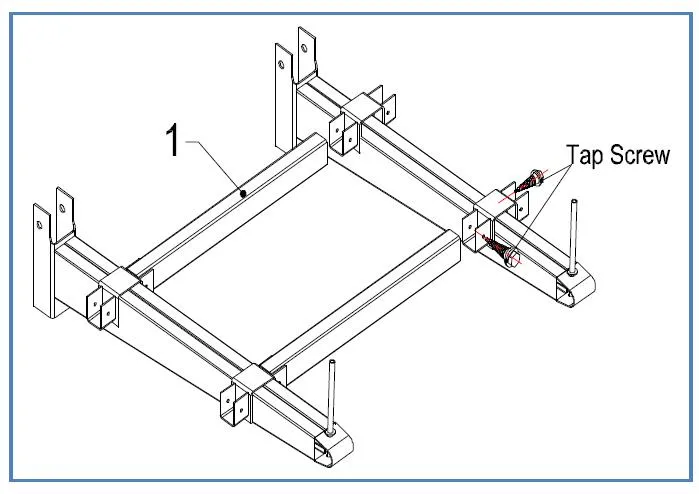

Cantilever Racks can also store pallets. This is achieved by adding Pallet Support Bars on the arms. Each pallet support is rested on a pair of Saddles as shown in the diagram.
