Product Parameters
1. Standard Heavy-Duty Rack Parameters
| Parameter |
Description |
| Rack Type |
Heavy-duty racks (designed for heavy loads) |
| Material |
High-strength cold-rolled steel, steel pipe, etc. |
| Surface Treatment |
Electrostatic spraying, hot-dip galvanizing, painting, etc. |
| Rack Height |
2 meters to 10 meters (customizable) |
| Rack Depth |
600mm, 800mm, 1000mm, 1200mm, etc. |
| Rack Width |
1000mm, 1200mm, 1500mm, 2000mm, etc. |
| Shelf Load Capacity |
500kg to 2000kg per shelf (depending on design and requirements) |
| Total Load Capacity |
2 tons to 5 tons per column (depending on column specifications and load design) |
| Shelf Adjustment Interval |
50mm, 75mm (customizable) |
| Structure |
Bolt connection, insert type, welded type, etc. |
| Storage Methods |
Pallet storage, box storage, shelf storage |
2. Heavy-Duty Rack Load Capacity Parameters
| Rack Type |
Load Capacity per Shelf |
Maximum Load Capacity per Column |
Suitable Applications |
| Standard Heavy-Duty Rack |
500kg to 1500kg |
3 to 8 tons per column |
Suitable for medium-sized items, bulk goods, etc. |

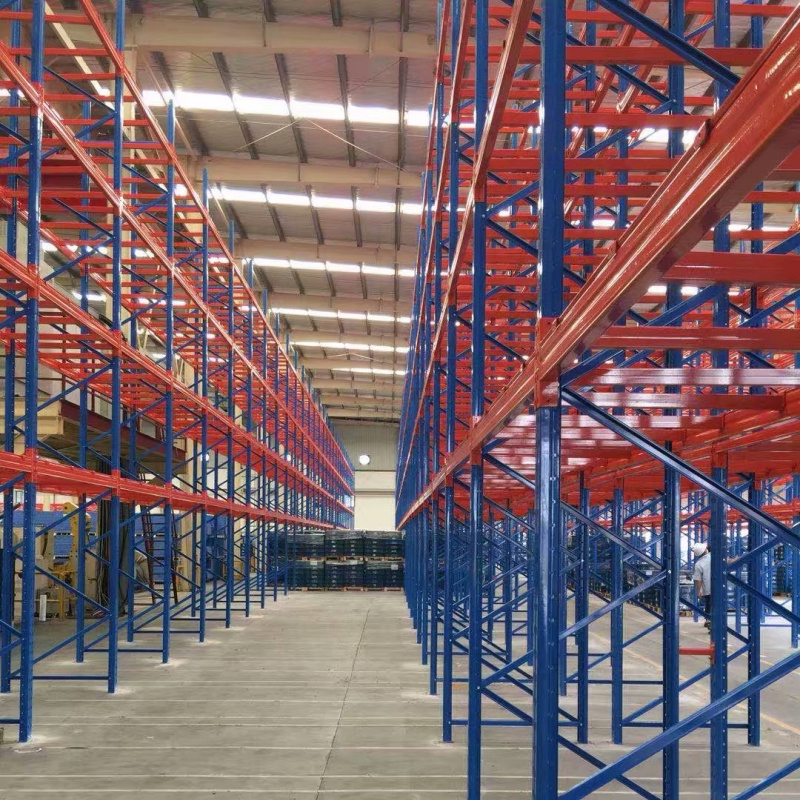

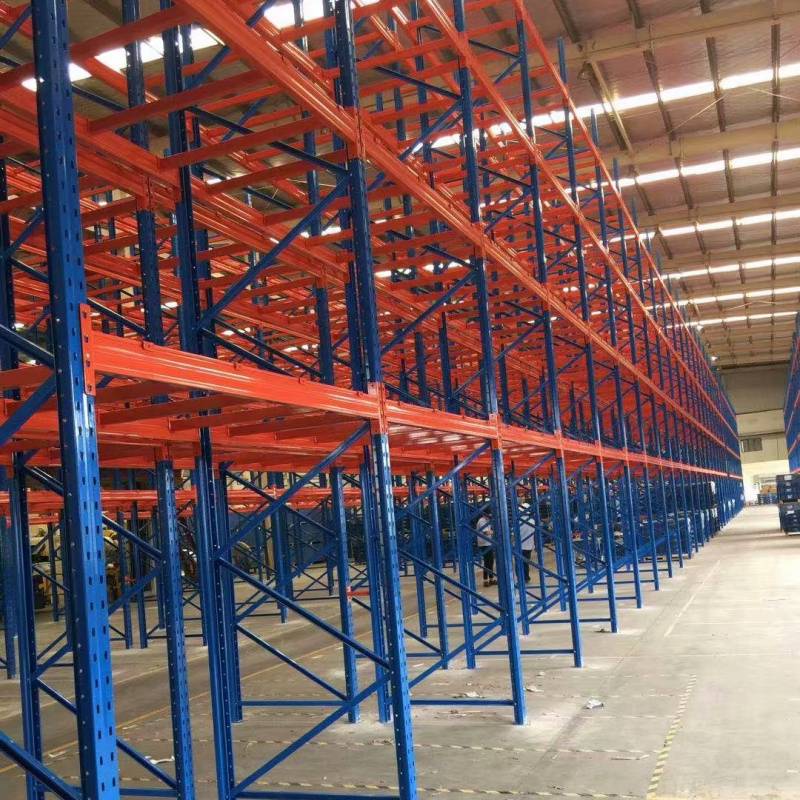

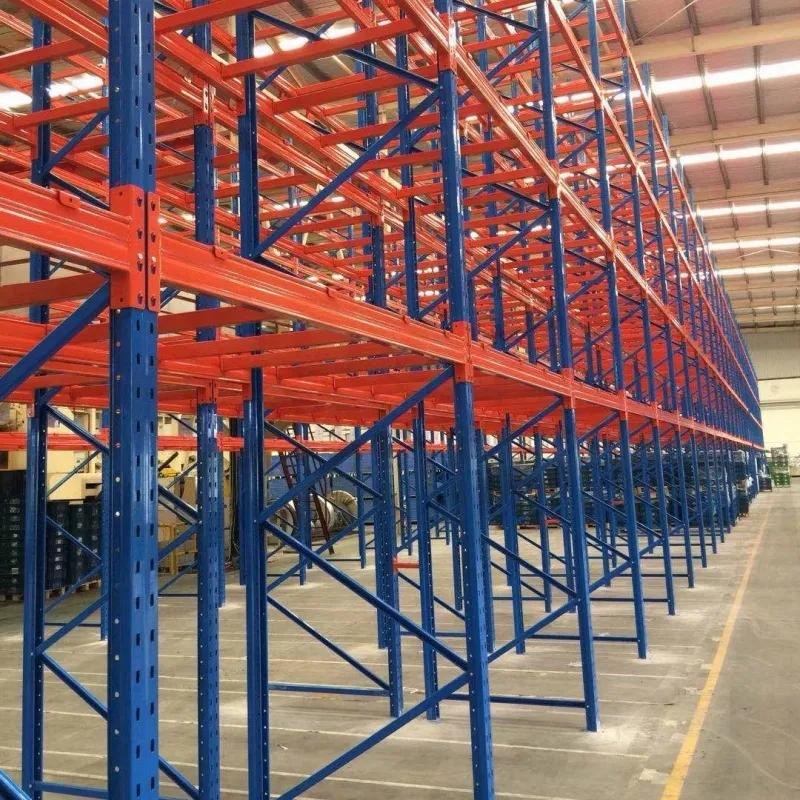

| Heavy-Duty Pallet Rack |
1000kg to 3000kg |
5 to 12 tons per column |
Suitable for heavy items, pallet storage |
| Super Heavy-Duty Rack |
2000kg to 5000kg |
10 to 20 tons per column |
Suitable for large machines, equipment, etc. |
| Heavy-Duty Mezzanine Rack |
500kg to 2000kg |
4 to 10 tons per column |
Suitable for goods requiring mezzanine design |
3. Heavy-Duty Rack Column and Beam Dimensions and Specifications
| Part Type |
Size (mm) |
Material Type |
Load Capacity |
| Column |
80×40mm, 90×50mm, 120×60mm |
High-strength cold-rolled steel |
Can carry 2 tons to 8 tons per column |
| Beam |
1200mm, 1500mm, 1800mm, 2400mm |
High-strength steel |
Each beam can carry 500kg to 2000kg |
| Shelf |
1200×600mm, 1500×800mm, etc. |
Steel plate, wood, mesh plate, etc. |
Each shelf can carry 500kg to 2000kg |
4. Rack Installation and Adjustment Parameters
| Item |
Specification/Option |
| Rack Installation Type |
Insert type, bolt connection, welded type |
| Shelf Adjustment Interval |
50mm, 75mm, 100mm |
| Shelf Material |
Steel plate, wood, plastic plate, mesh plate, etc. |
| Shelf Thickness |
2mm to 6mm (depending on material and load requirements) |
| Protection Design |
Anti-collision support, protective guardrails (optional) |
5. Heavy-Duty Rack Applications
| Application Area |
Suitable Products |
| Industrial Warehouses |
Heavy machinery, mechanical parts, metal materials, etc. |
| Logistics Centers |
Bulk goods, pallets, raw materials, bulk products, etc. |
| Manufacturing Workshops |
Semi-finished products, components, tools, heavy equipment, etc. |
| Supermarket Warehousing |
Heavy goods, furniture, large appliances, etc. |
| Cold Storage/Cold Chain Warehousing |
Food, beverages, perishable goods, etc. |
6. Heavy-Duty Rack Surface Treatment Process
| Surface Treatment |
Description |
Advantages |
| Electrostatic Spraying |
Electrostatic coating applied to steel |
Corrosion-resistant, anti-rust, abrasion-resistant, suitable for regular storage environments |
| Hot-Dip Galvanizing |
Steel immersed in zinc bath for galvanizing |
Excellent corrosion resistance, suitable for humid environments |
| Spray Paint Treatment |
Applying a layer of paint on the steel surface |
Cost-effective, dust and rust prevention |
| Chrome Plating |
Chrome treatment applied to steel surface |
High strength, corrosion resistance, suitable for high-end environments |
Company Profile

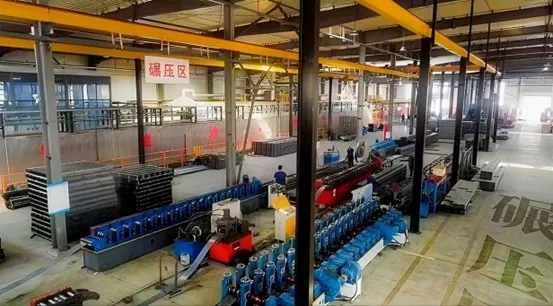

The company was established in 2008 and is a professional manufacturer dedicated to the development, research, design, production and installation of modern logistics technology. It has strong technical strength and product development capabilities. It is equipped with cold-rolling lines for section steel, automated powder coating lines, automatic continuous punching lines for steel strips, etc. At present, the company has one technology research and development center, two sales centers, one professional shelf manufacturing factorie and several professional installation teams. With a total of over 150 employees, it ranks among the top in terms of scale and strength in the same industry and is one of the earlier manufacturers of warehousing equipment in the province. The company's annual production capacity is over 40,000 tons, with a rated capacity of 200 million yuan per year.
FAQ
Are you a factory or trading company?
We are a manufactory for storage rack.
What is the raw material of your products?
The raw material brand of our normal temperature warehouse is carbon steel Q235b, and the cold storage at minus 18 degrees Celsius or lower temperature adopts Q345D, or other types of steel can be customized according to your needs.
Do you have MOQ (minimum order quantity) limitation?
No, we do not have MOQ requirement for most of our products. Normally 1*20ft container order would be recommended to save cost and easy operation.
What is the packaging of the products?

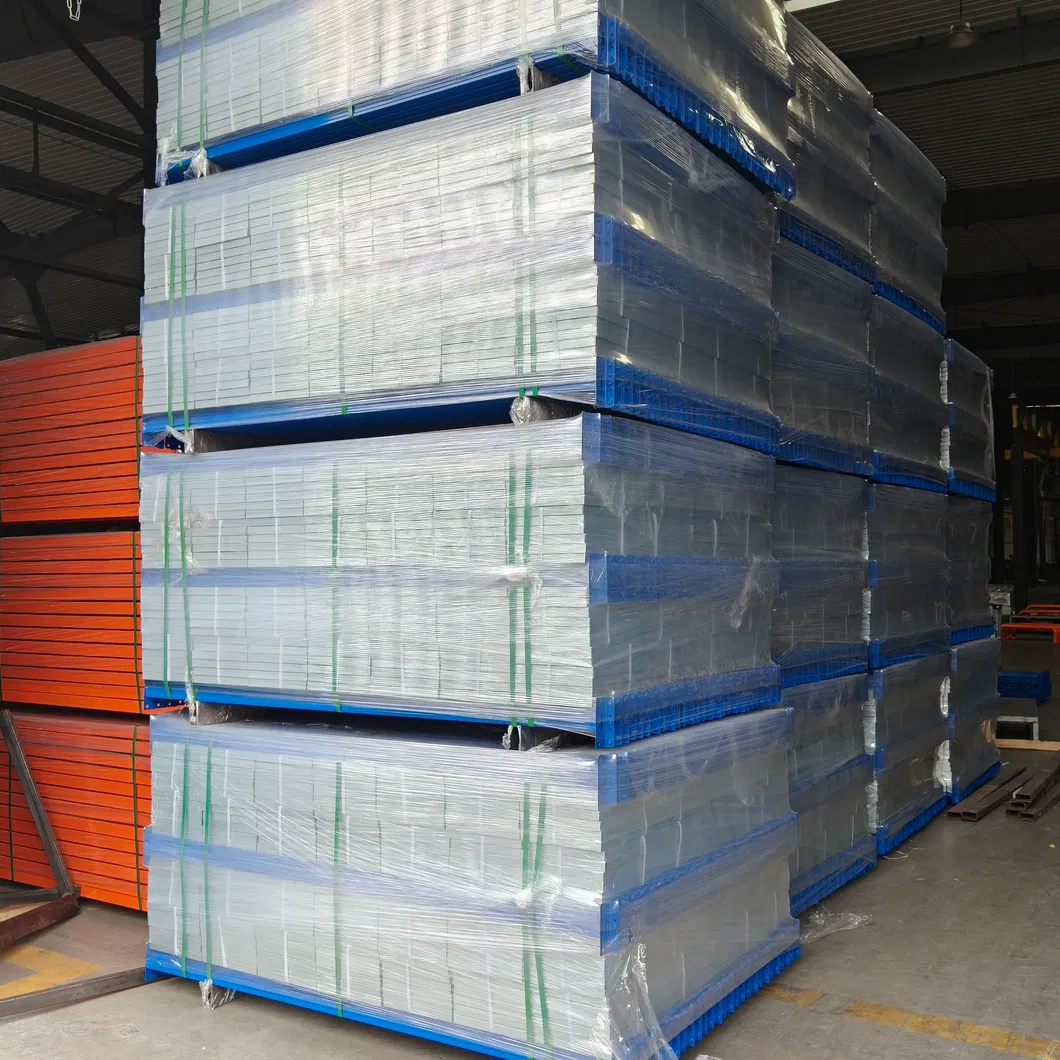

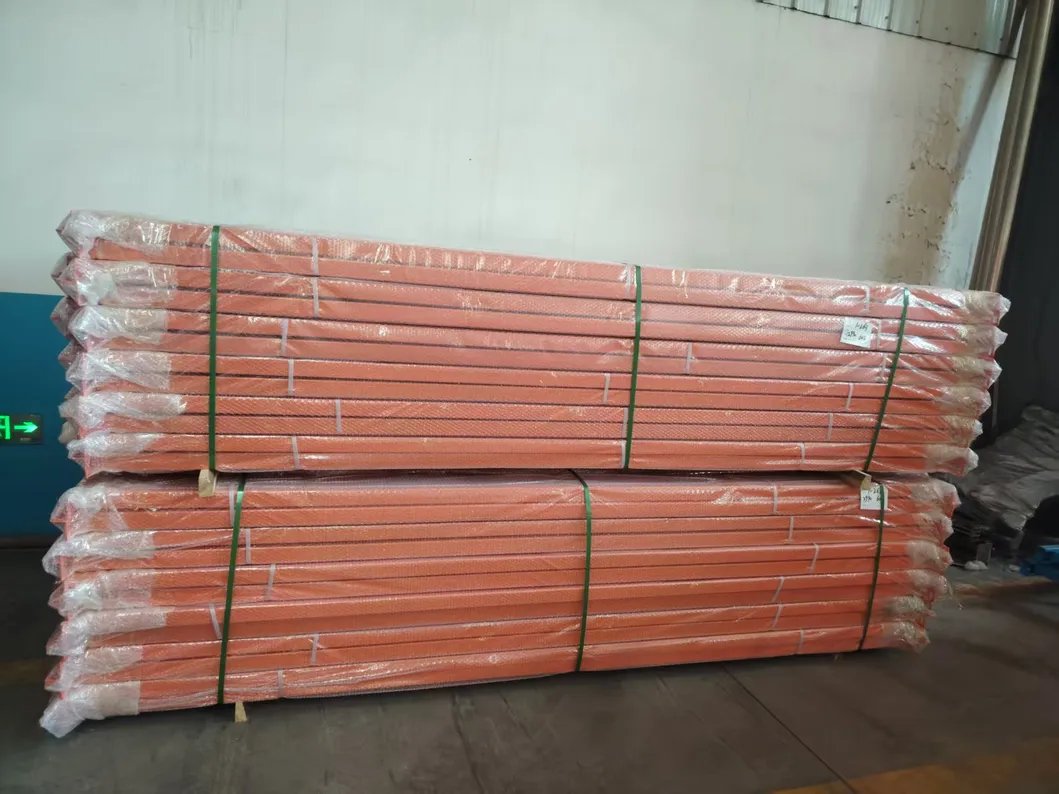

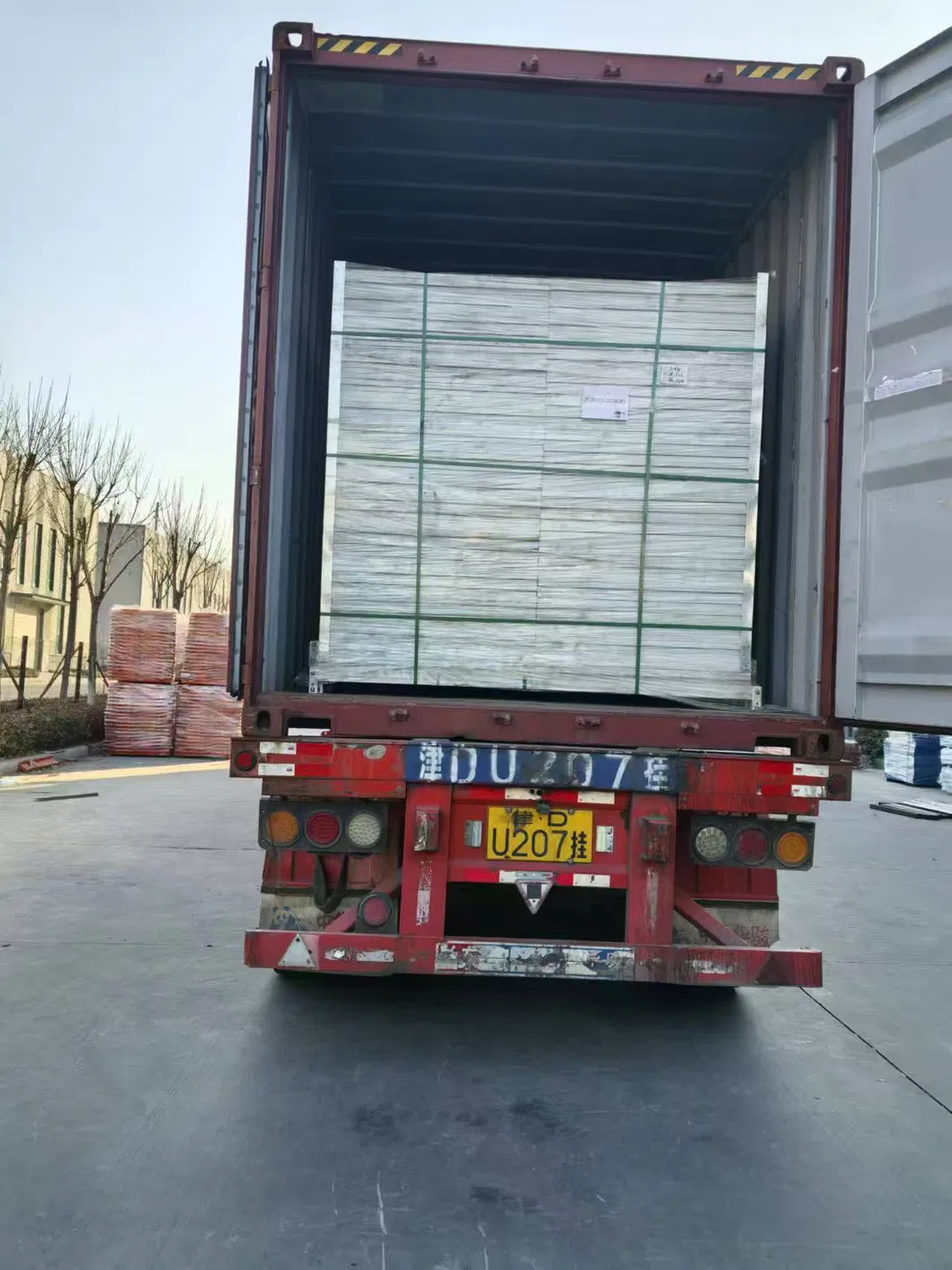

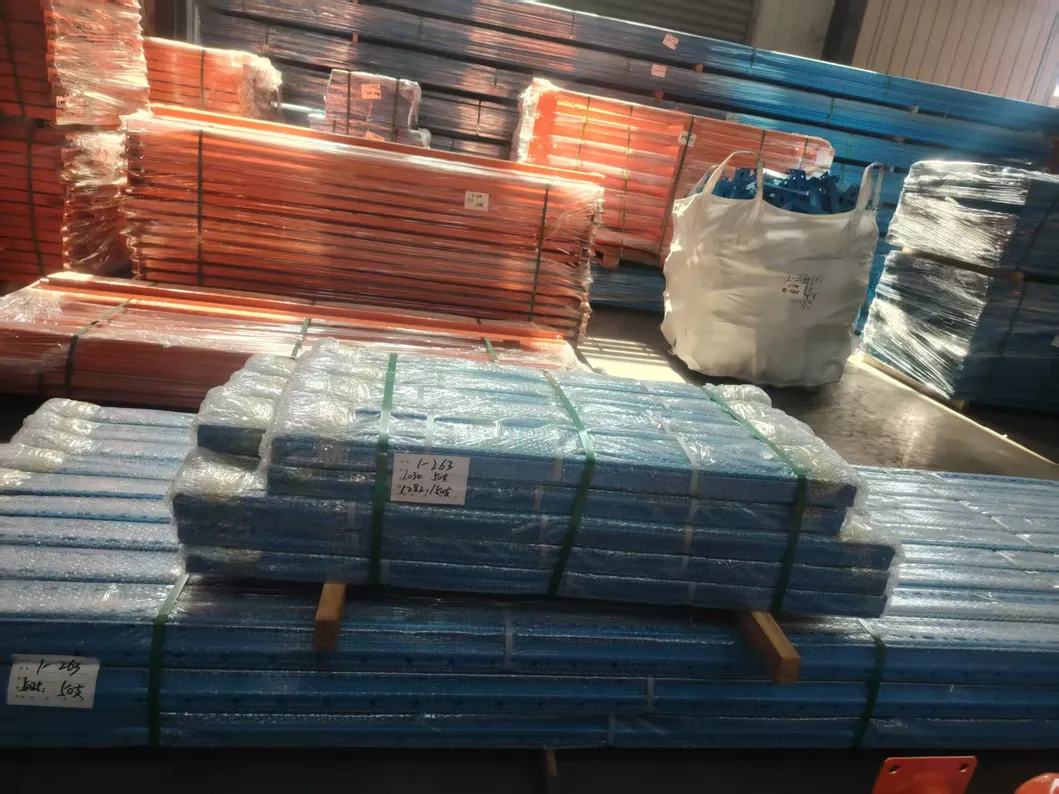

Standard export packaging. All parts are packed with packing tape after being stacked regularly, and covered with plastic film; The steel plates of medium-sized shelves are packed in cartons and then packed with packing belts.
What is your delivery time?
It depends on the order quantity and racking types normally is 15 to 30 days after receipt of the deposit.
How will I install the racks?
We provide installation videos and installation drawings. If necessary, we can send an engineer to guide the installation or installation team to install on site.
