Product Description

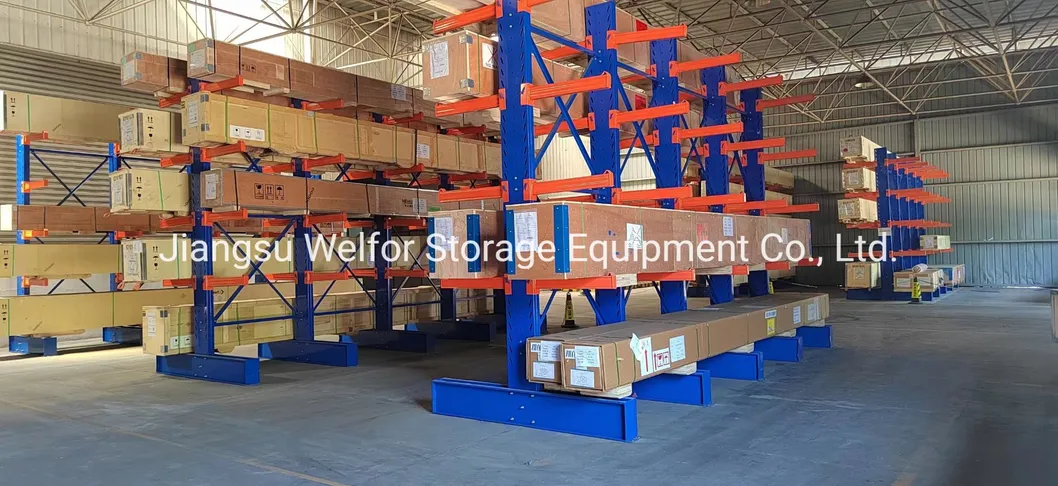

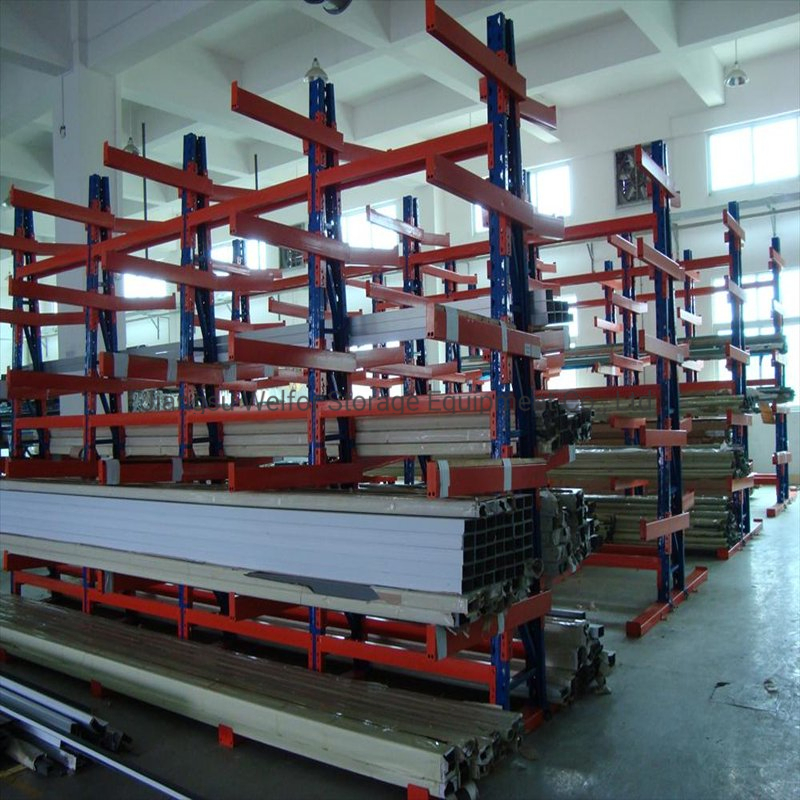

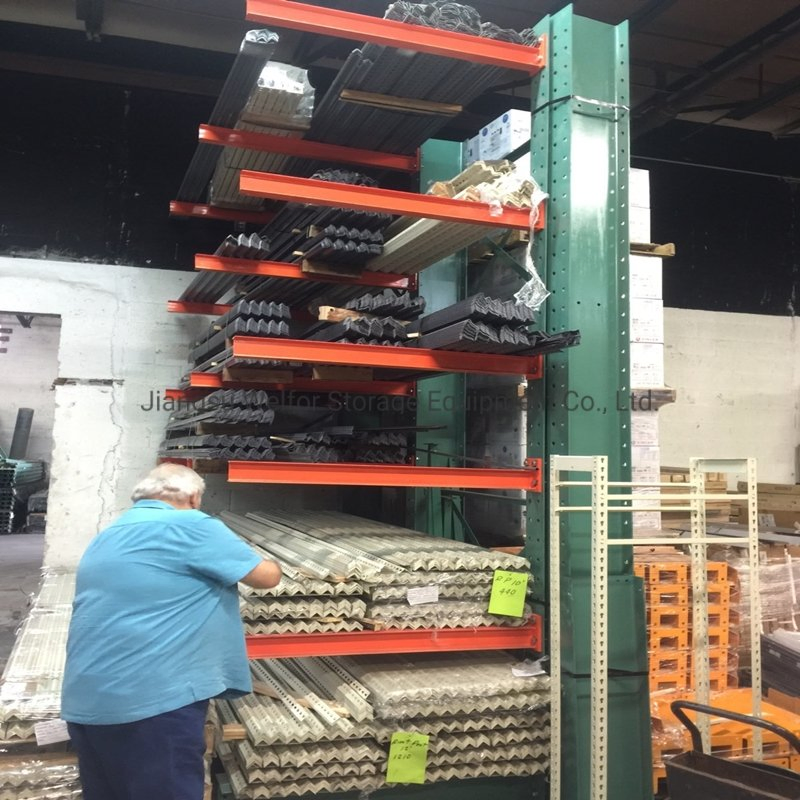

Warehouse Storage Heavy Duty Cantilever Rack for Irregular Goods

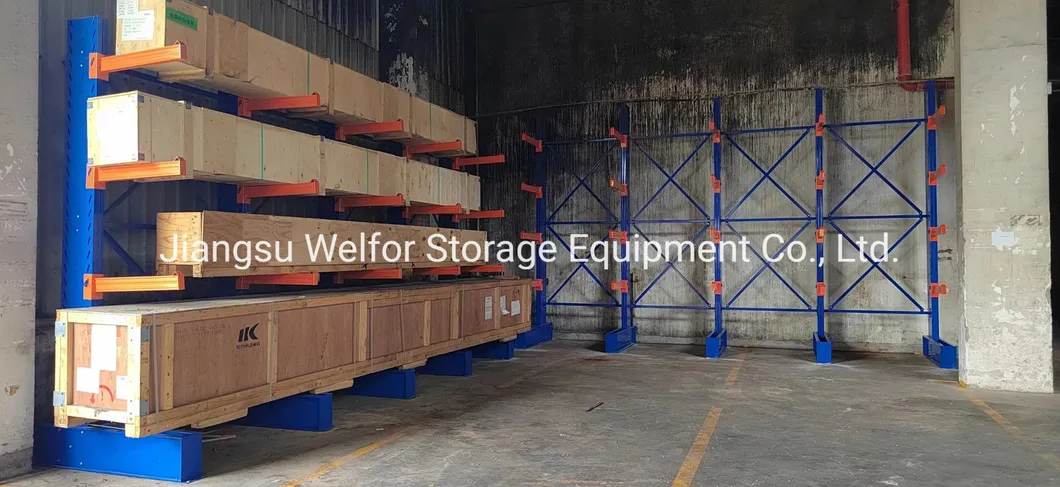

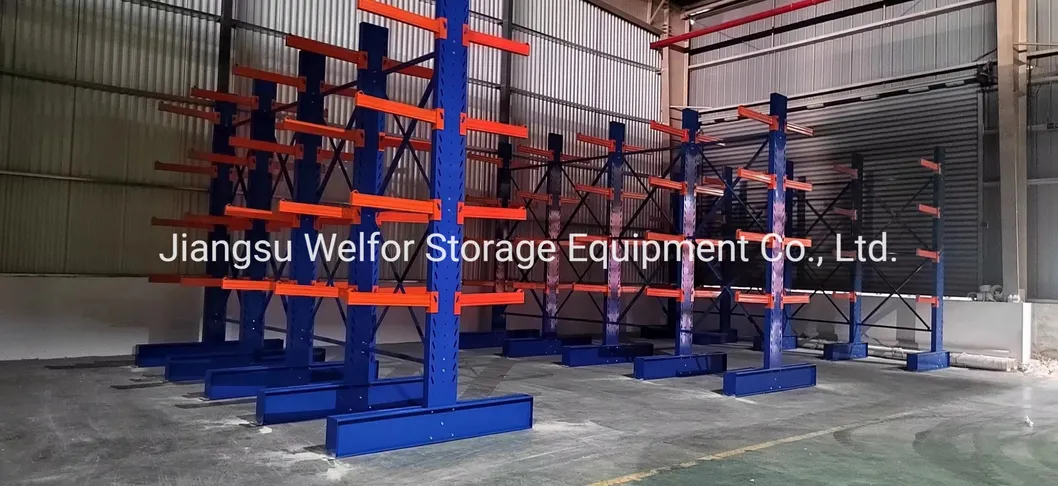

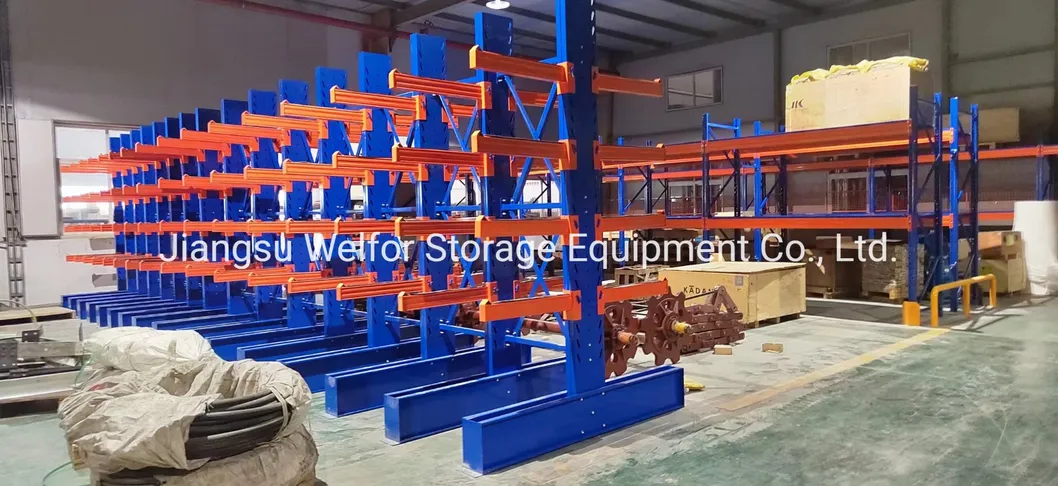

Cantilever rack is a type of racking that is used for storage of irregular or long items. This is achieved by eliminating obstructions and providing a clear opening in the front of the rack in lengths as long as desired. These rackings can also be decked for storage of items smaller than the spacing between towers. Tower spacing, upright capacity, and arm capacity are critical for a safe and proper system. This racking is available in roll form and structural styles. It is widely used in mechanical manufacture and architecture material supermarket enterprises.

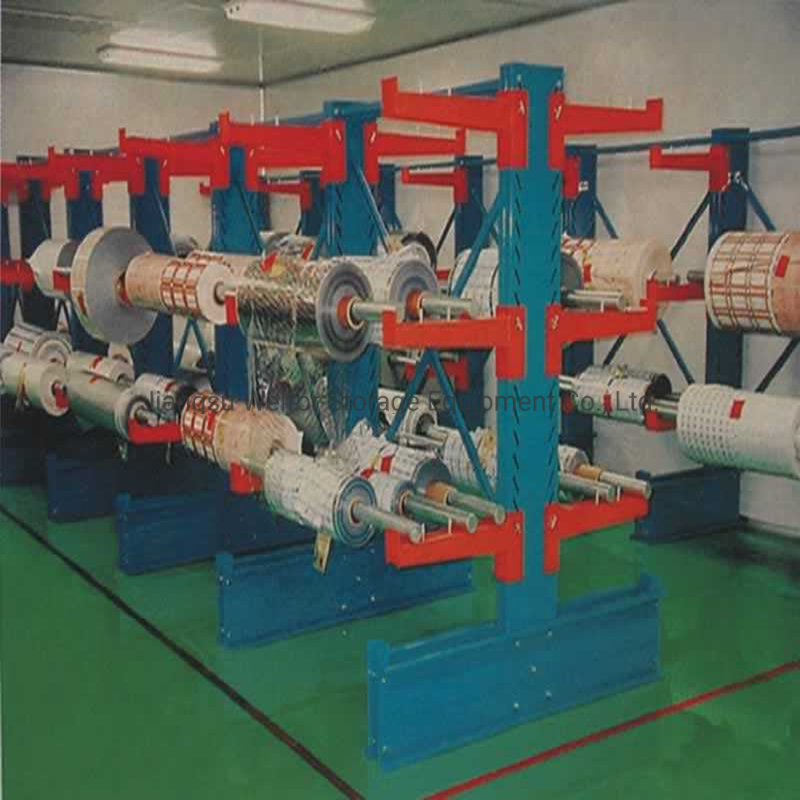

The cantilever rack is suitable for storing long or circular material, flat products, tubes and irregular goods.
Features

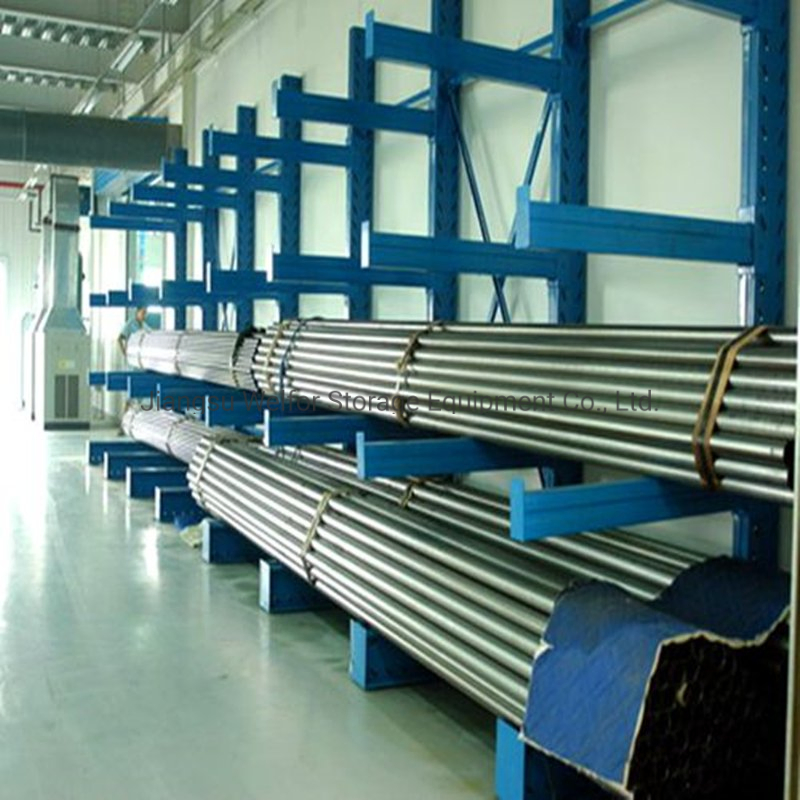

- Designed for effective storage and handling of items such as lumber, pipes, bar stocks, timbers or other similar items

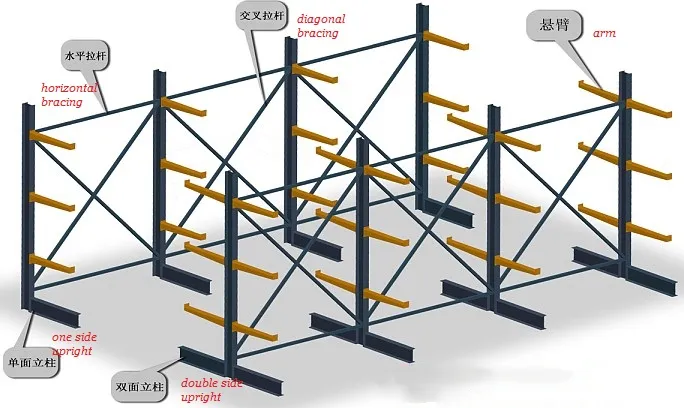

- This rack can be divided into a single sided or double sided cantilever rack
- Available with light, medium, and heavy loading capacities
Advantage
- A big scale of output allows us in a good position to control lower product costs on a basis of same high quality level.
- A wide range of different racking types to suit different storage needs, maximum the utilization of your space.
- Assemble and disassemble easily and conveniently, so it can be recyclable.
- Free but expert advice & proposed racking solutions for your kind reference.
- We pride ourselves on short lead times and FAST delivery so you can get back to business!
- We commitment to provide a detailed quotation and product information; promise to tailor your required products in the shortest time.

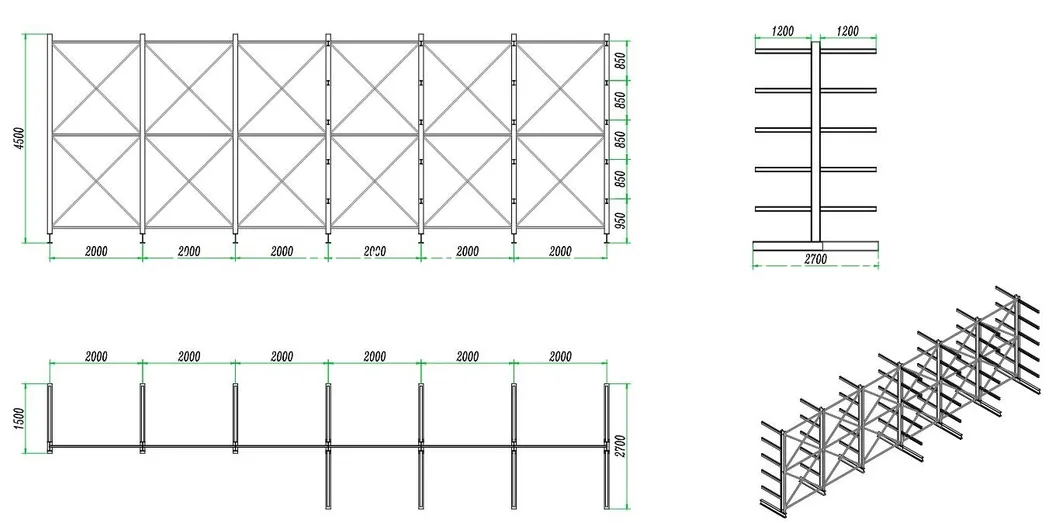

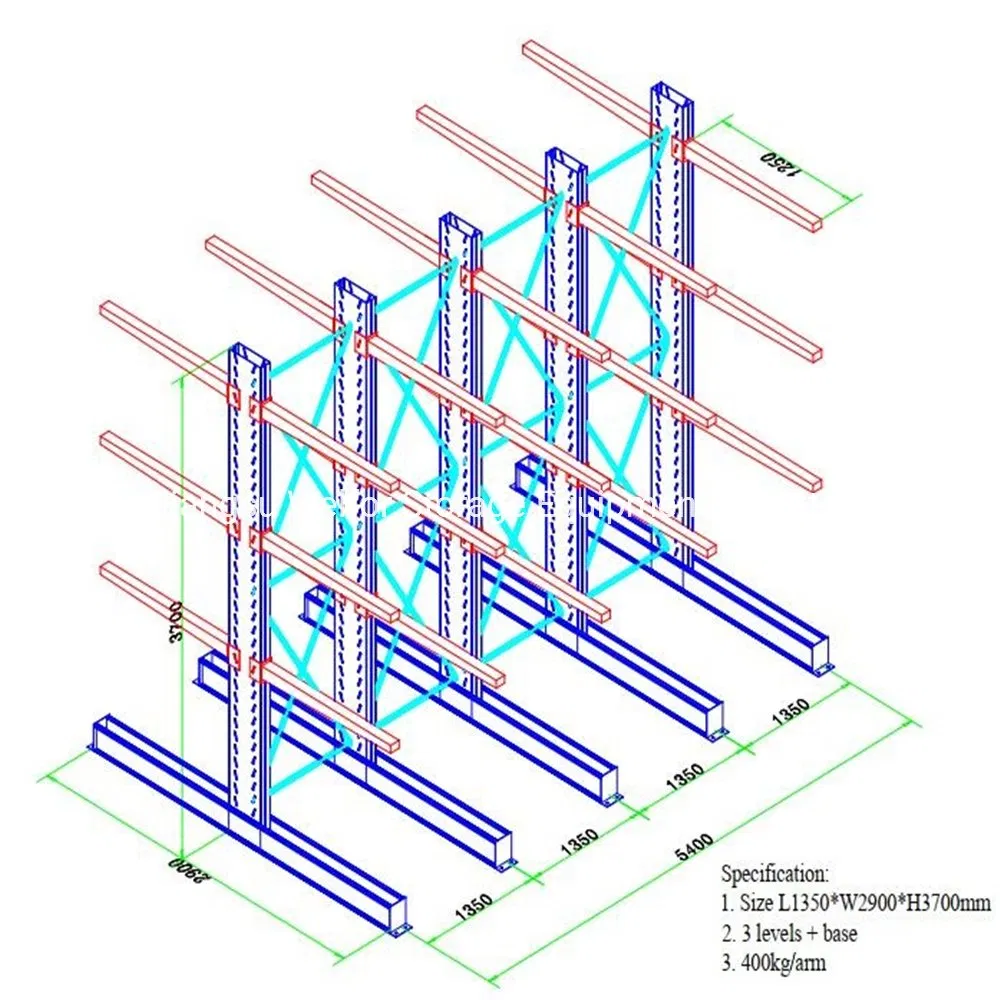

Related projects
Technical data for cantilever rack
| Length (mm) |
Height (mm) |
Max Beaming Capacity (kg) |
| 400 |
60 |
500 |
| 500 |
60 |
400 |
| 500 |
75 |
750 |
| 600 |
60 |
350 |
| 600 |
100 |
1000 |
| 750 |
70 |
500 |
| 750 |
110 |
1000 |
| 1000 |
90 |
500 |
| 1000 |
135 |
1000 |
| 1250 |
100 |
500 |
| 1250 |
155 |
1000 |
| 1500 |
110 |
500 |
| 1500 |
180 |
1000 |
| 1750 |
160 |
500 |
| 1750 |
200 |
1000 |
| 2000 |
180 |
500 |
| 2000 |
220 |
1000 |

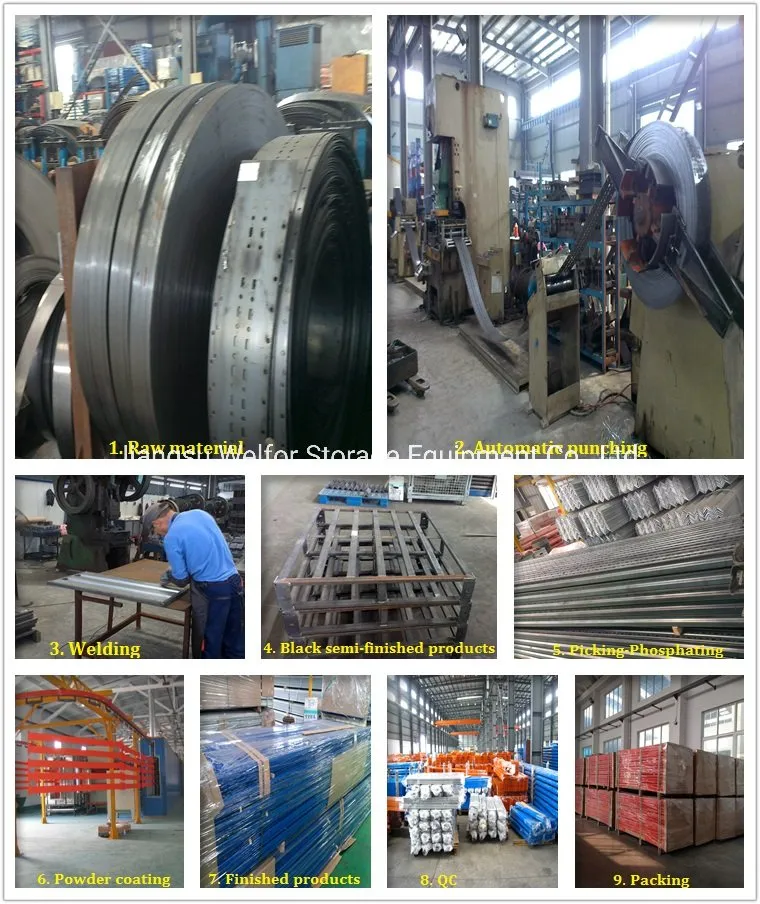

Production process

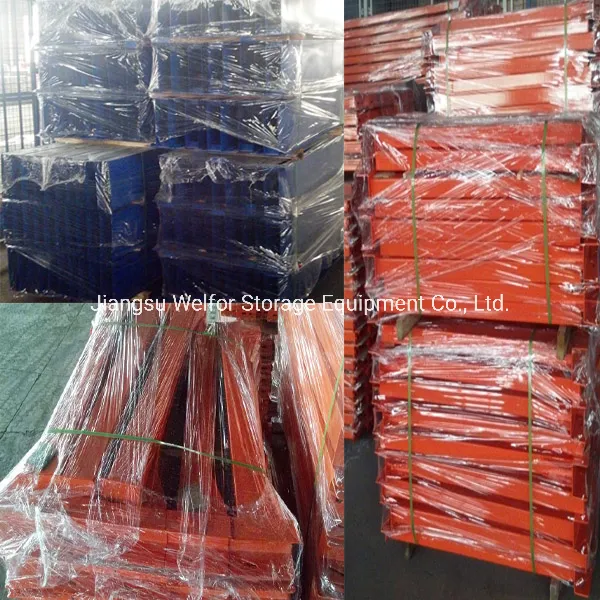

Packing and loading photos
Please provide information for quick quotation
- Drawing (if available) of rack; if not, we can offer CAD design service for you
- Size of your warehouse (Length x Width x Clear height)
- Storage requirement on the cargo(temperature etc)
- Size (W*D*H) & weight of pallet (after loading)
- How many pallets each layer you would like
- How many layers you would like
- Parameter of your forklift ( to decide the width of aisle between racking)
- The color you want

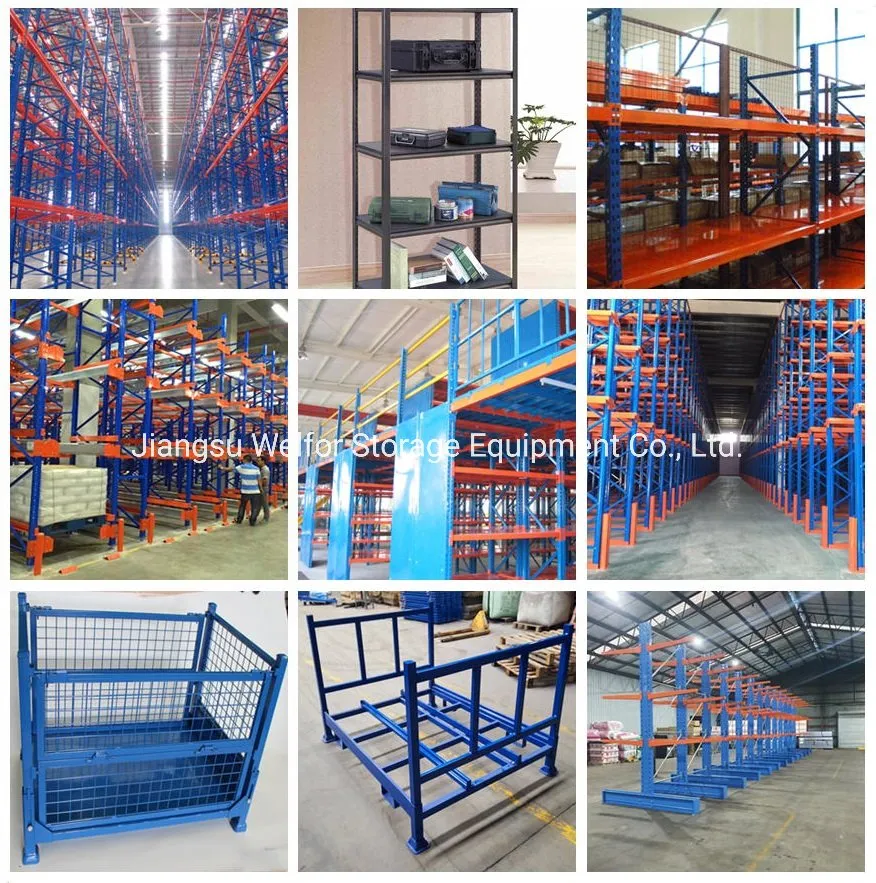

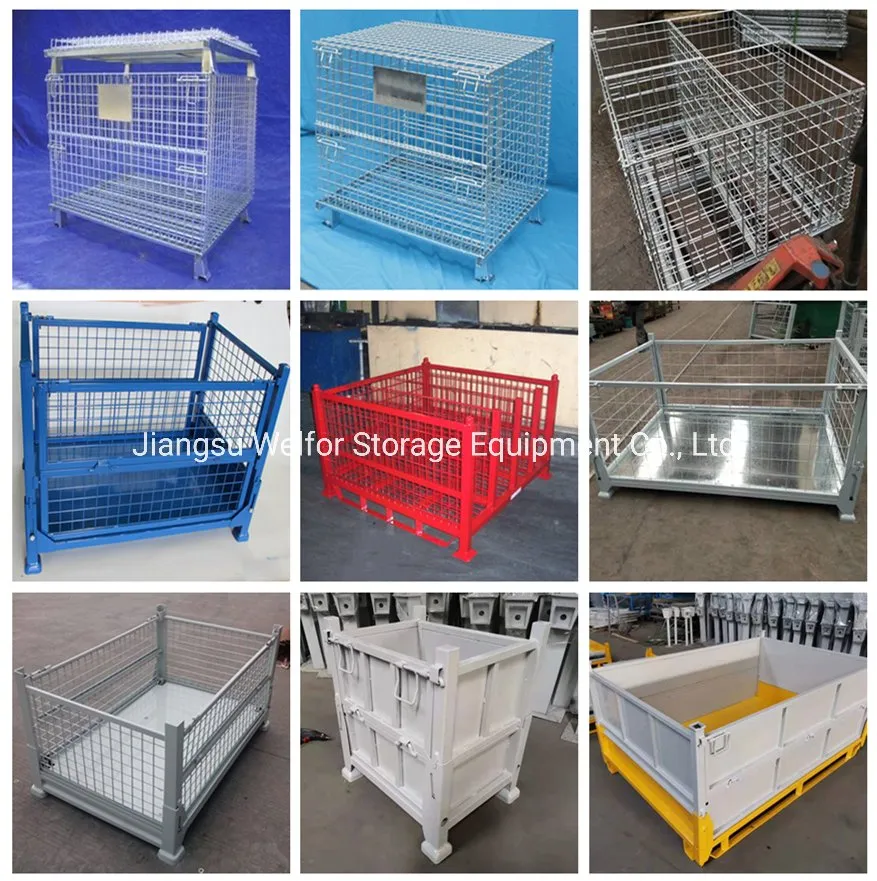

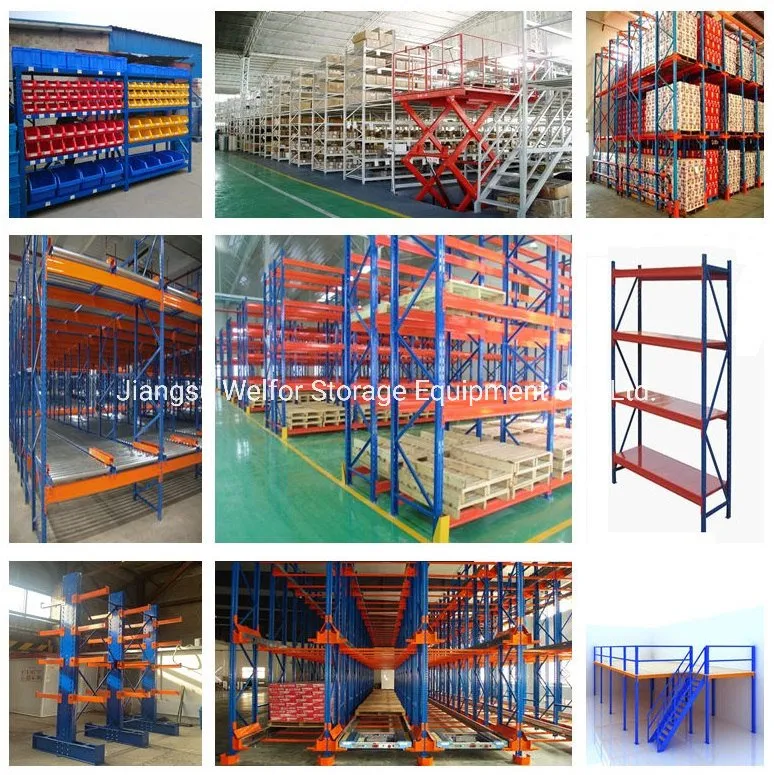

Other products
Frequently Asked Questions
1. What is the MOQ limitation for the rack system?
There is no strict MOQ. However, large purchases will bring competitive prices. A 20FT container (10T~13T) is highly recommended so that production can be better handled.
2. What is the lead time?
For a 20FT container loading, the manufacture time is about 10-15 days. For customized items, it will take around 20-25 days.
3. What payment methods do you accept?
T/T and L/C payments are welcomed.
4. How about the sample delivery?
Short sections of uprights and beams can be provided free of charge. However, the freight will be collected upon your duty.
5. What is the warranty for the rack system?
All rack items will be warrantied against manufacturer's defects. To avoid any shortage or missing components, we will provide 1%~2% spare parts in addition to the basic ones.
