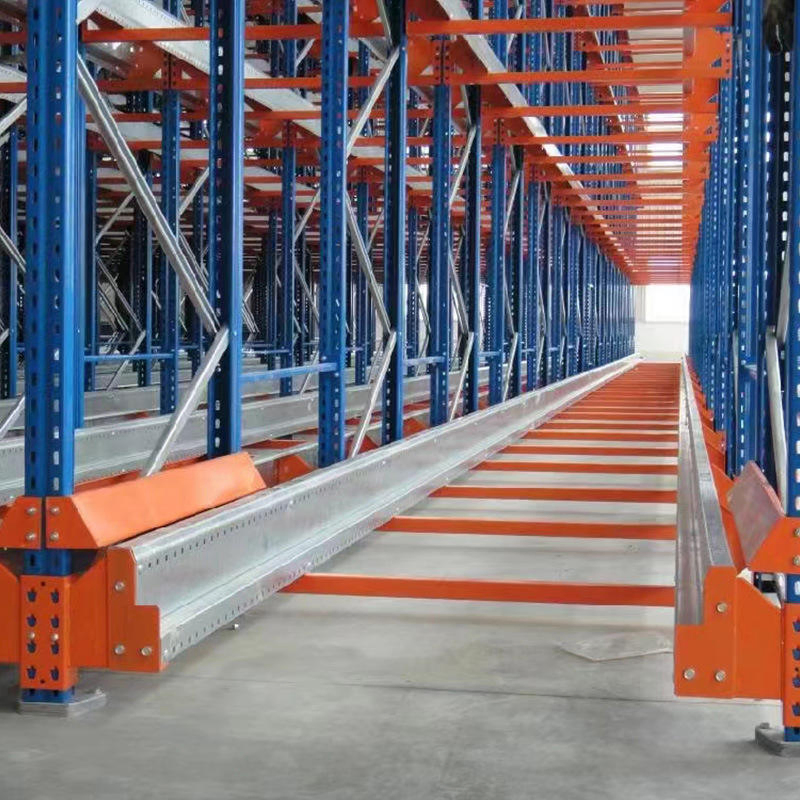

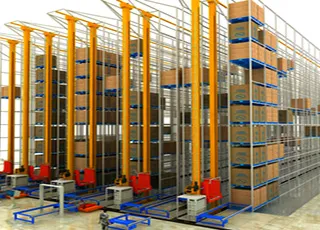

Fully Automatic Pallet Warehousing System, Suitable for Mixed Storage of Multiple Models.

Customization:	Available
After-sales Service:	Within One Year
Warranty:	Within One Year

Overview

Basic Info

Model NO.	Pallet Warehouse
Type	PAL-Vna Unmanned Vna Library
Storage Capacity	≤5000p / Library
Automation Level	Fully Automated, Semi-Automated
Cargo Carrying Capacity	Shelf Load Capacity: 1200kg
Applicable Scenarios	Automobile Manufacturing
Shelf Height	30m
Navigation Methods	Laser Positioning and Navigation
Dispatch System	Standard Tcs/Ecs
Safety Protection	Obstacle Avoidance Function
Material	PP, HDPE
Operating Temperature	-20℃-+50℃
Deployment Time	20-40 Days
Inventory Accuracy	≥99.9%
Device Battery Life	9 Hours of Battery Life
Shelf Material	Aluminum Alloy
Transport Package	Boxed
Specification	1250kg
HS Code	8479509090
Production Capacity	800/Minute

Packaging & Delivery

Package Size	480.00cm * 780.00cm * 1000.00cm
Package Gross Weight	120.000kg
Lead Time	40 days (1 - 1 Pieces) To be negotiated ( > 1 Pieces)

Product Description

Advantages of Pallet Warehouse

Fast Loading and Unloading Speed Goods are handled on pallets, allowing for one-time transport with forklifts and other equipment.
Minimal Goods Damage Pallets secure goods, reducing stacking, compression, and collisions during handling.
Maximized Space Utilization Compatible with automated racking systems, fully utilizing vertical warehouse space.
Low Labor Costs Minimizes manual labor through automated and mechanical processes.

Pallet warehouse applications

Manufacturing Raw Material/Finished Product Storage Used to store raw materials, components, and finished products required for production.
Trade and Logistics Transit Warehouse Widely used in regional transit warehouses for e-commerce and retail.
Cold Chain Warehousing Suitable for storing food and pharmaceuticals in a cold chain environment.

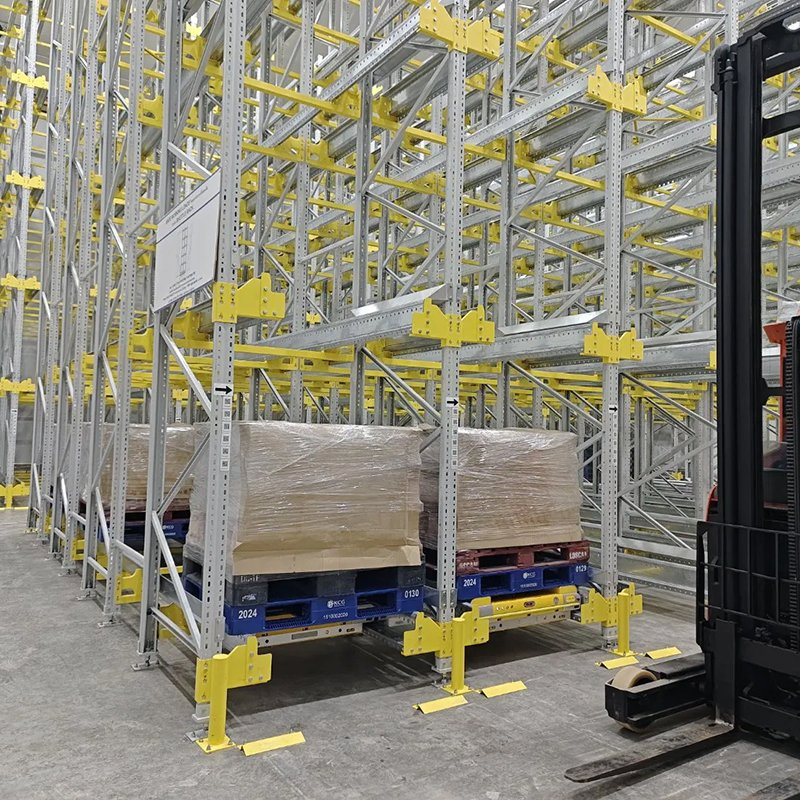

Fully Automatic Pallet Warehousing System, Suitable for Mixed Storage of Multiple Models.

How Pallet Warehouses Work

Using pallets as unit carriers, forklifts and other equipment are used to directly store and retrieve entire palletized goods, reducing piecemeal operations.
Relying on a WMS system for scheduling, storage locations are automatically allocated and equipment routes are planned, achieving precise operations.

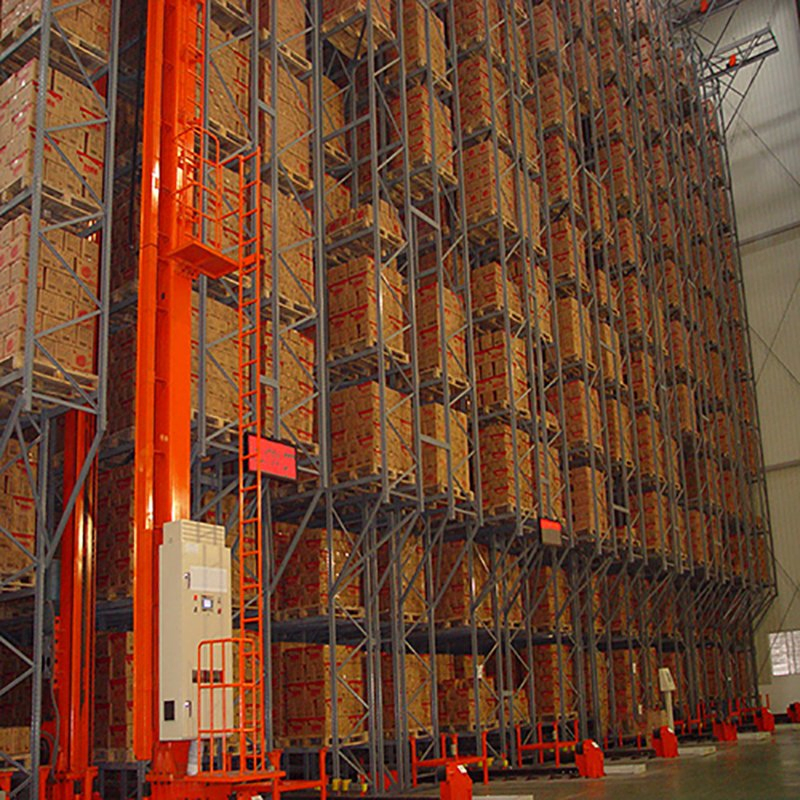

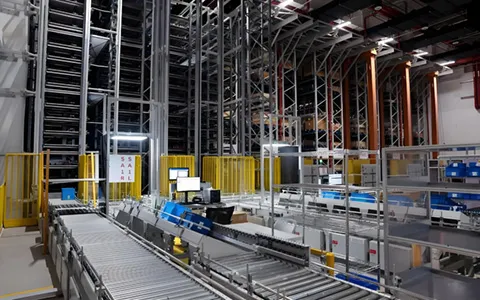

Utilizing stacker cranes, conveyor belts, and other equipment in coordination, palletized units are transferred seamlessly from inbound to outbound.

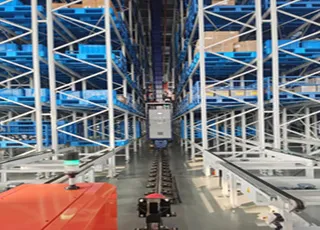

Fully Automatic Pallet Warehousing System

Technical Specifications

(Custom configurations available upon request.)

Parameter	Details	Parameter	Details

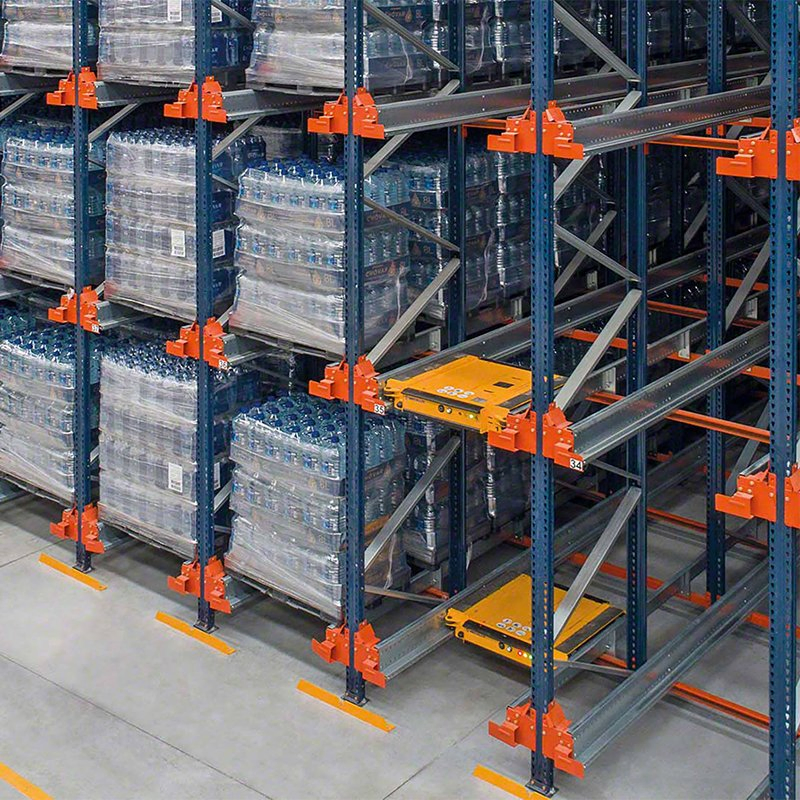

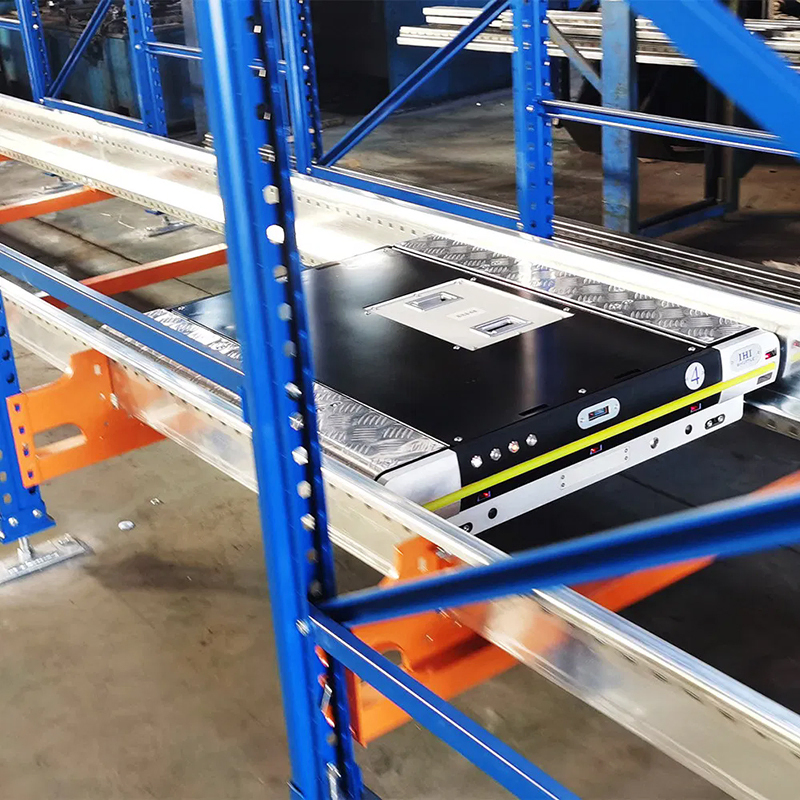

Core Types	Flat pallet warehouse, automated pallet warehouse, and Automated pallet warehouse	Storage format	Beam racking storage, shuttle racking storage, gravity flow racking storage, high-density racking storage
Load-bearing capacity (single support)	0.5-5 tons (standard), 5-10 tons (heavy-duty)	Applicable pallet specifications	1200×1000mm, 1100×1100mm, 1200×800mm (international standard); custom sizes available.
Work Method	Manual forklift operation, semi-automatic stacker crane operation, and fully automatic WMS/WCS system control operation.	Space utilization	Conventional warehouse: 30%-50%; Automated warehouse: 60%-85%
Core equipment configuration	Forklifts, stacker cranes, AGVs, conveyor belts, racks, pallets, and WMS warehouse management systems	control system	Manual control, PLC programmable control, Internet of Things (IoT) intelligent scheduling system
Applicable industries	Manufacturing, e-commerce logistics, cold chain warehousing, retail distribution, pharmaceuticals and chemicals, and auto parts industries	Tray material compatibility	Wooden pallets, plastic pallets, steel pallets, paper pallets
Installation cycle	Small warehouse: 15-30 days; Medium warehouse: 30-60 days; Large automated warehouse: 60-120 days	Shelf height	Standard warehouse: 3-6 meters; Automated warehouse: 8-20 meters (high-level); Extra-high warehouse: 20-40 meters.
Work efficiency (per hour)	Manual mode: 10-30 trays; Semi-automatic mode: 30-80 trays; Fully automatic mode: 80-200 trays.	Maintenance cost level	Low (manual warehouse), Medium (semi-automatic warehouse), High (fully automatic intelligent warehouse)

Drawings & Dimensions

Detailed CAD drawings and dimensional diagrams are available for download or upon inquiry. Our engineering team can provide tailored designs to meet specific project requirements.

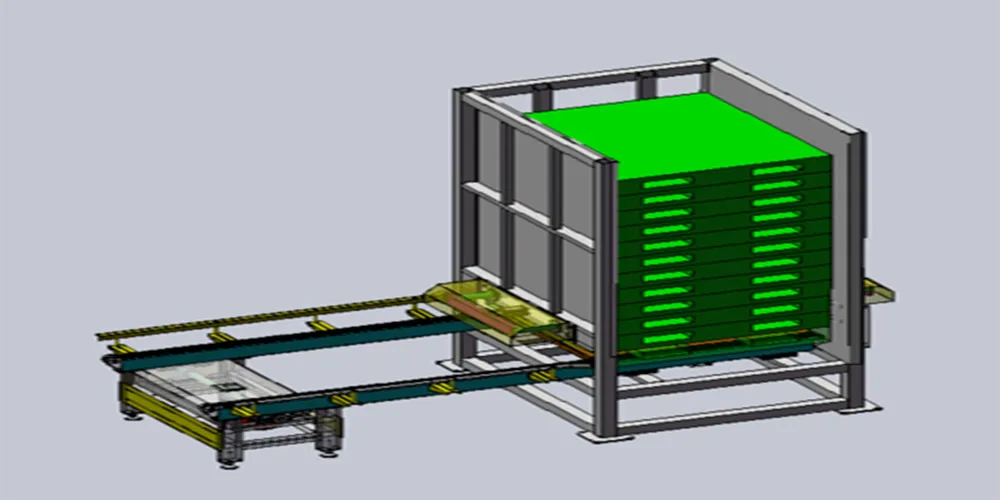

Detailed Technical Drawings and Dimensions

After Sales Service

Standard Warranty 12 months or 2,000 operating hours (whichever comes first).
Extended Warranty Optional coverage up to 36 months.
Global Support 24/7 technical assistance and spare parts supply.
Training On-site or remote operation/maintenance training.

Production Facility & Technology

Main Production Facility and Automation Manufacturing Center

The production facility is a modern high-tech enterprise, focusing on the research and development of industrial robots, palletizing robots, palletizers, high-position palletizers, fully automatic bagging packaging machines, packaging machines, batching equipment, depalletizers, loaders, logistics automation lines and other projects. The company has brought together a group of high-level and high-quality professionals, actively promoting the development model of "production, learning and research" and has successfully developed a new generation of automated production lines that can be widely used in automated packaging and automated logistics engineering.

In order to comprehensively improve its market competitiveness, the facility has selected a large number of high-quality accessories from the United States, Japan, Europe and other countries, and introduced various advanced processing equipment to greatly improve the quality of its products. It has been widely used in chemical, feed, flour, building materials, food, beverages, beer, automated logistics and other industries. From product import to output, from electrical control to mechanical structure design, complete system technical solutions and precision manufacturing of equipment are fully provided, backed by a comprehensive after-sales service system for high-quality technical support.

FAQ

Q1: May I know how long it takes to get the machine after transfer?

Usually, if the machine you need is a standard type, we can ship it within 7 days. Customized types are welcome, and the delivery time is about 20-25 working days.

Q2: How long is the product warranty period?

The product warranty period is 12 months.

Q3: Can you help me pack other goods together into the container?

Yes, of course. If most of the products are purchased from us, and other products are also purchased from other suppliers, you can ask other suppliers to send the products to our factory. We help you pack all your products into one container and arrange everything.

Q4: After the machine is finished, how to check the quality of the machine?

We have made video calls with customers in seminars for on-site inspection on Zoom, Microsoft Teams, Teamviewer, WhatsApp, Skype, and WeChat.

Q5: What is the standard warranty and global support configuration?

Our standard warranty covers 12 months or 2,000 operating hours (whichever comes first), with optional extended coverage up to 36 months. We also offer global 24/7 technical assistance and spare parts supply.

Q6: What are the key advantages of implementing a pallet warehouse?

It provides fast loading and unloading speeds, minimizes damage to goods, maximizes space utilization within automated racking systems, and significantly lowers labor costs.
