Storage Car Cantilever Parts Storage Rack
Quick Details
| Model |
VC-08 (Cantilever rack) |
| Type |
Cantilever rack |
| Material |
Steel |
| Tier |
2-4 layer |
| Laminate |
0.06mm |
| Weight Capacity |
150kg-500kg |
| Surface Treatment |
Powder coating |
| Size |
OEM |
| Characteristics |
Stable & artistic & save space |
| Optional Color |
Optional |
| Packing |
Knock down rack parts |
| Feature |
Cantilever rack double arm warehouse storage rack |
| Keywords |
cantilever rack, warehouse rack, storage rack |
More Details of Cantilever Rack
Composite structure, its size and capacity can be fixed by users. It's mainly used for the storage of long figure goods such as rolled section steels, steel tubes, plates and so on.
Frames

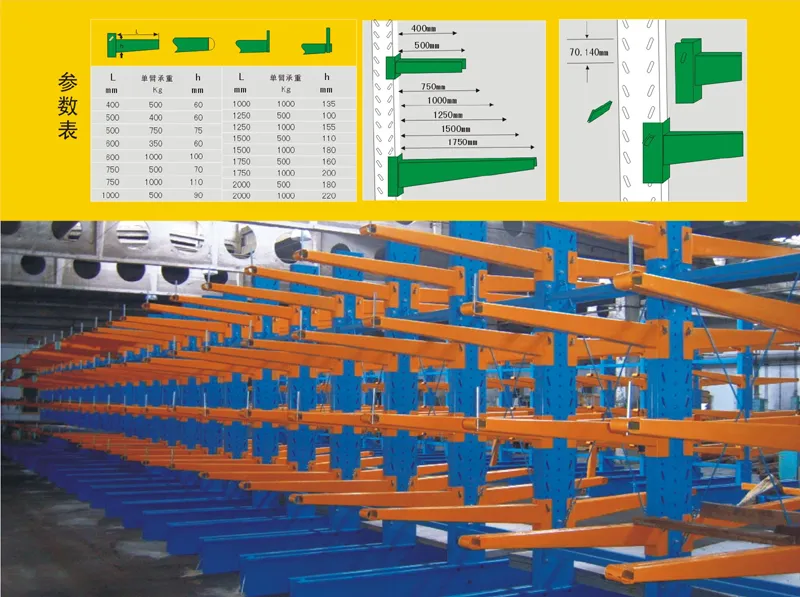

Frames are made up of two uprights with the corresponding horizontal & diagonal bracings, footplates and accessories. The frames have slots every 75mm to accommodate the beams and supports.
Arms

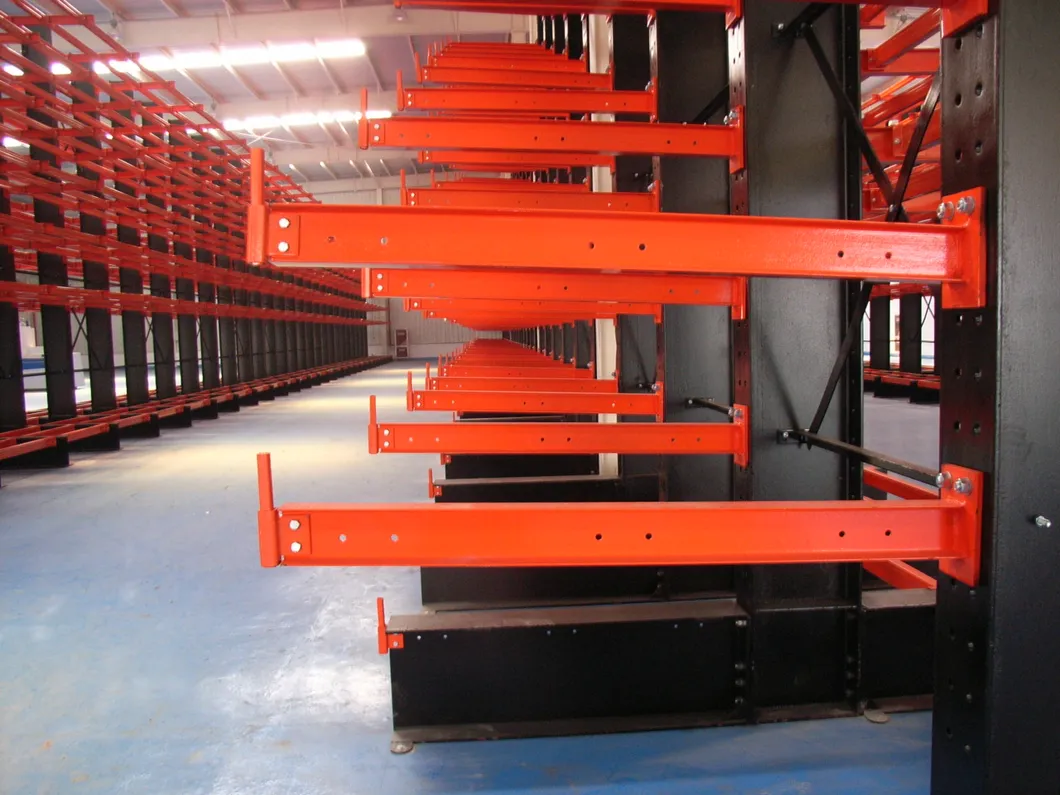

There are two types of arms, which are single arm (left side and right side single arms) and double arm. The single arm is used in each side of the racks, while the double arm is used in between.
Pallet Support Rails
Support rails are stamp formed and the length can be customized. The rails are designed without connectors to ensure uniform loading.
Applications of Cantilever Rack
Hospital, school and library
Textile and garment industry
Machinery and equipment industry
Food and cold storage
Communication electronics and electrical appliances
Logistics warehouse
Auto parts and auto 4S shop
Pharmaceutical and chemical industry
Standard Size of Cantilever Rack
- Width: 1340-1540mm
- Depth: 4-6 pallet
- Height: 2000-15000mm
Our Advantages on Cantilever Rack
- Quick and easy assembly
- Powder coat baked polyester finish
- Interchangeable pallet rack design
- Cold rolled steel construction
- Integrated beam connector safety locks
- Strong bearing capacity
- A large scale of output allows competitive cost control while maintaining a high quality level
- A wide range of different racking types to suit diverse storage needs
- Free expert advice & custom proposed racking solutions

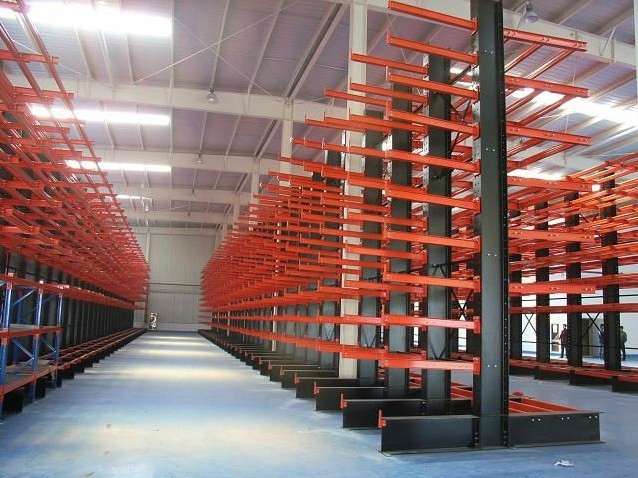

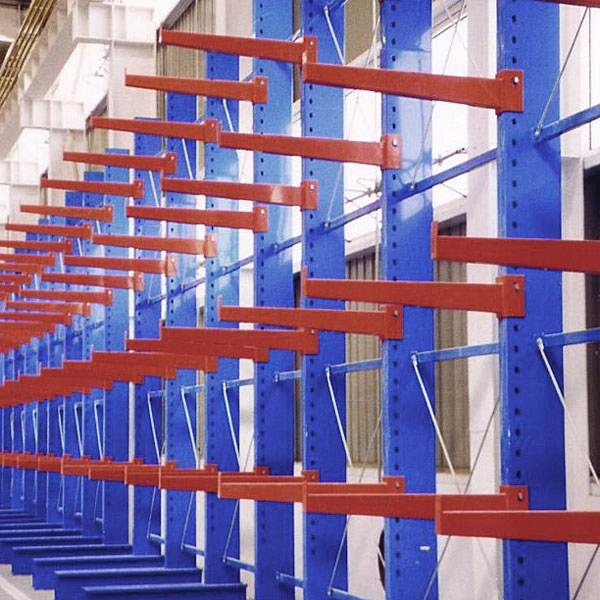

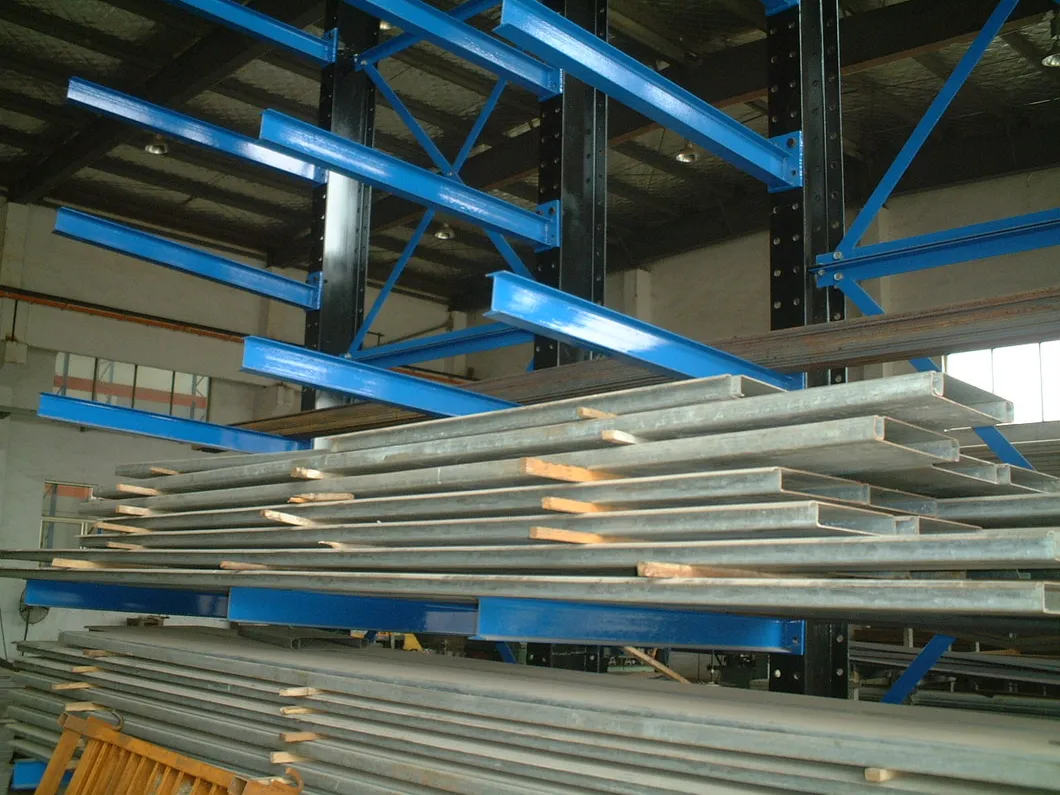

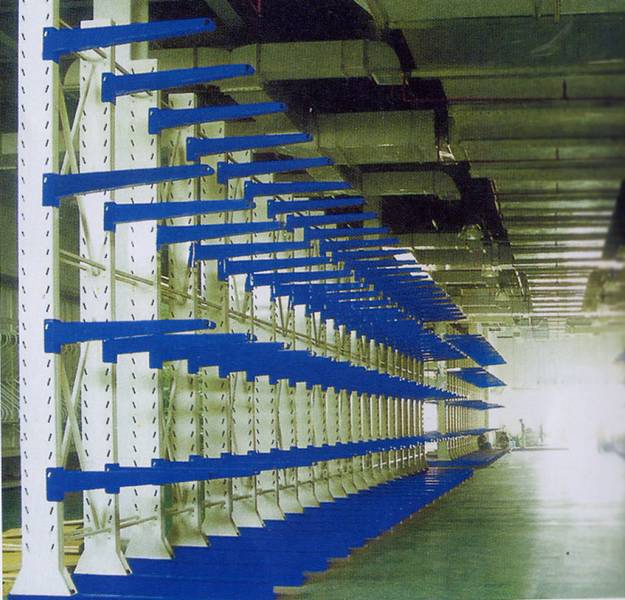

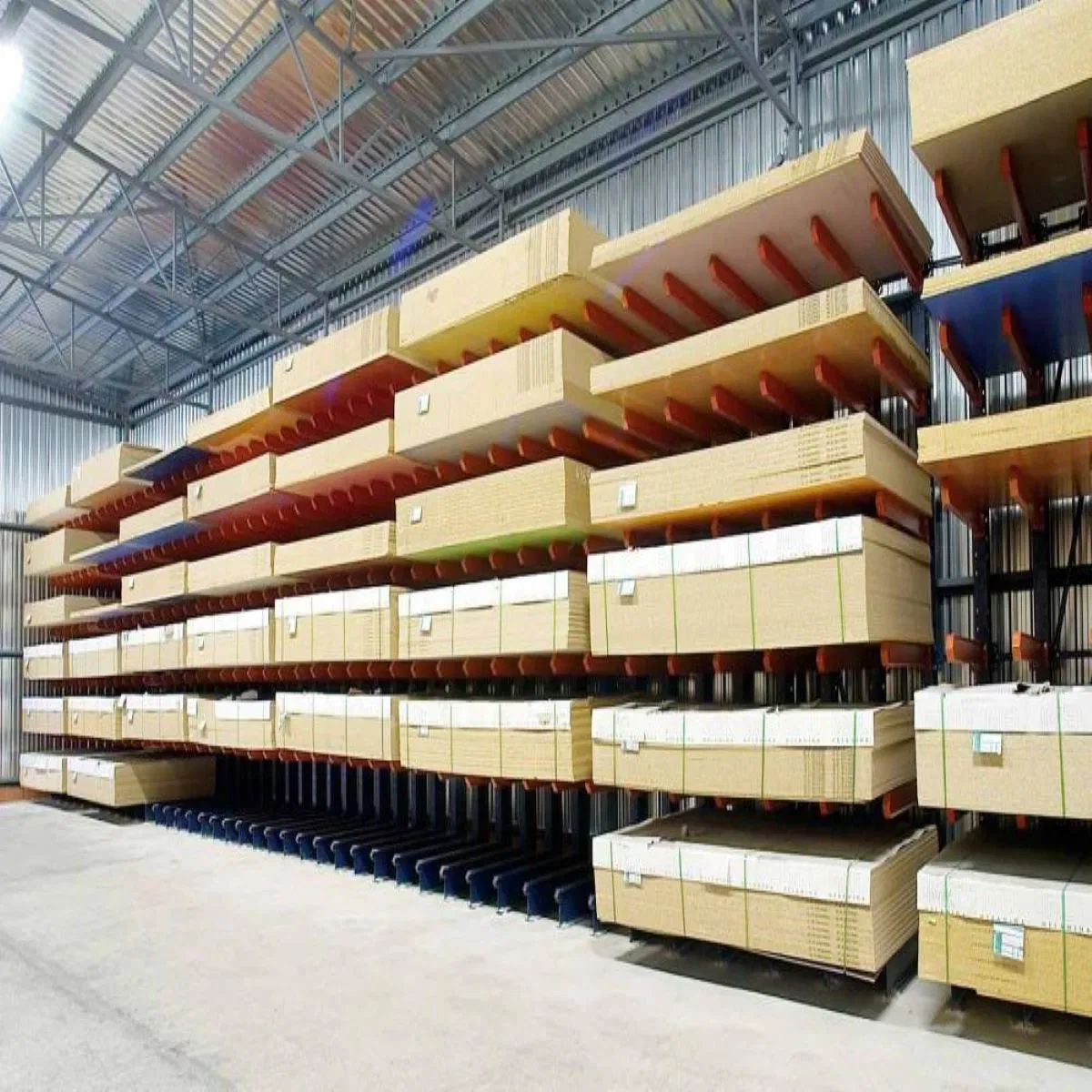

Product Images
Our Exhibition

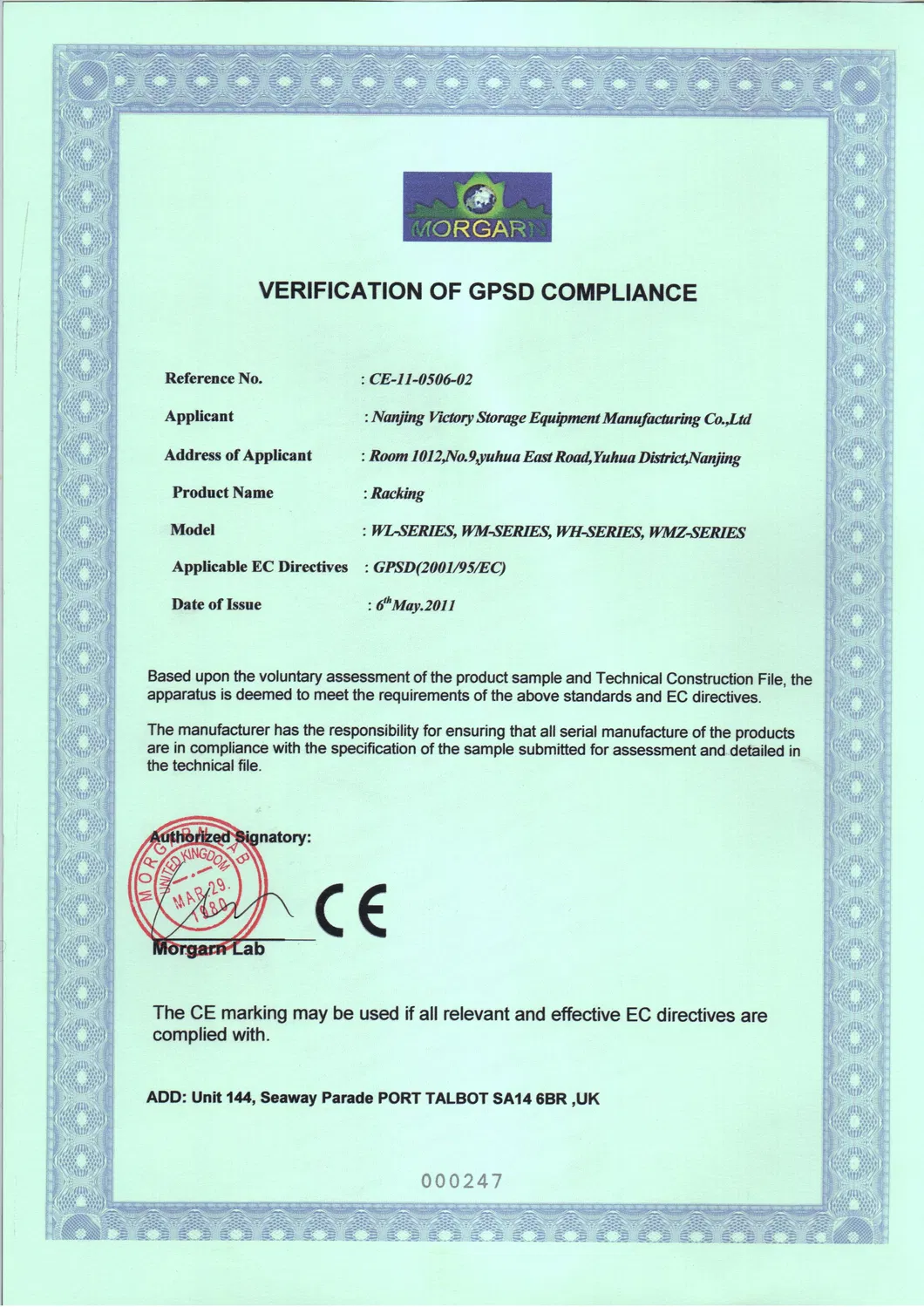

Certifications
Packaging & Loading
Our Services
- 17 years of professional manufacturing experience.
- Certified standards compliance: ISO9001, SGS, CE.
- One-stop integrated solutions covering design, production, and installation guidance.
- Factory prefabricated components ensuring strict quality control and reduced installation time/labor costs.
- Inquiries standard response within 24 hours.
- Comprehensive OEM/ODM support.
- Professional guidance for post-delivery installation.
Quick Quotation Checklist:
Please prepare the following information to help us configure a precise quote for your order:
- Layout dimensions of your warehouse facility.
- Specific storage environment requirements (e.g., temperature control).
- Dimensions and total weight of loaded pallets.
- Number of racking levels desired and target loading capacity per tier.
- Total quantity of cargo pallets to be stored.
- Forklift operating specifications (to establish minimum aisle width).
Frequently Asked Questions (FAQ)
What types of goods are cantilever storage racks best suited for?

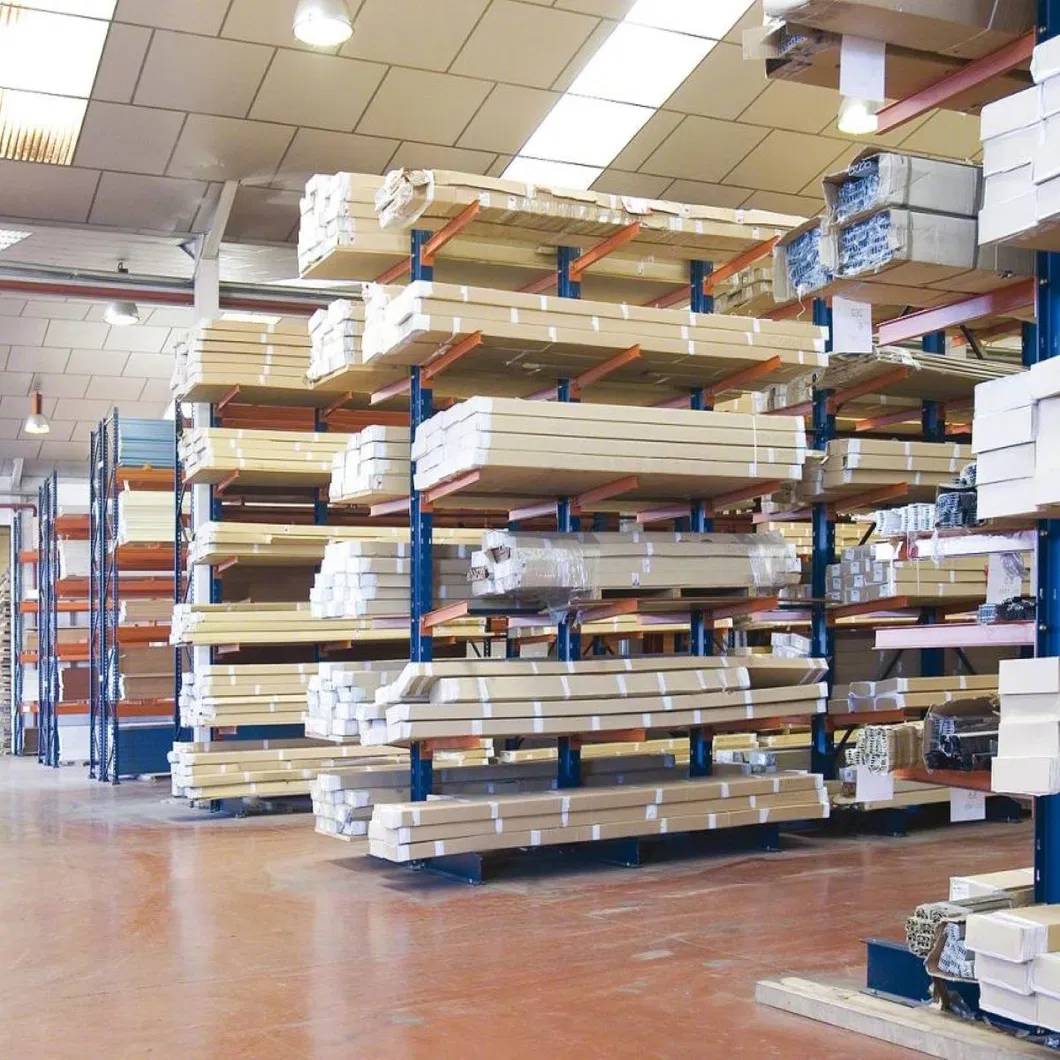

Cantilever racks are specifically designed to store long, bulky, or irregularly shaped items such as metal pipes, plastic tubes, wooden boards, steel plates, and profiles that do not fit on standard pallet racks.
What is the weight capacity per level for this storage rack?
The standard weight capacity ranges from 150kg to 500kg per level. However, custom solutions can be designed to support heavier industrial demands depending on your steel structure specifications.
Can the arm levels be adjusted after assembly?
Yes, the upright frames feature slots spaced every 75mm, allowing users to easily adjust the height of the arms to accommodate load profile changes.
Are these cantilever racks suitable for outdoor storage use?

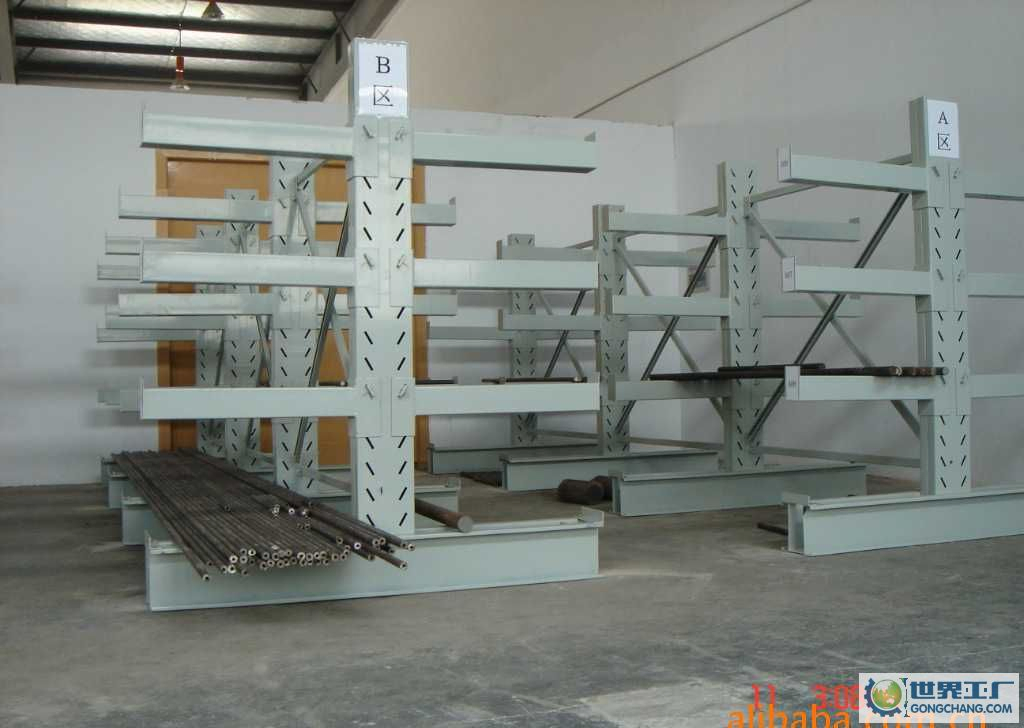

Yes, we provide hot-dip galvanized surface finishes for outdoor applications, offering superior resistance to rust, weather, and general wear compared to standard powder coatings.
Do you support customized sizing and configurations (OEM)?
Absolutely. We offer complete OEM services. You can customize the width, height, arm length, number of tiers, and overall structural loading capacity to perfectly suit your warehouse layout.
What certifications do your racking products hold?
Our manufacturing process and products are certified under ISO9001 quality management, CE standards, and have been thoroughly inspected and approved by SGS.
